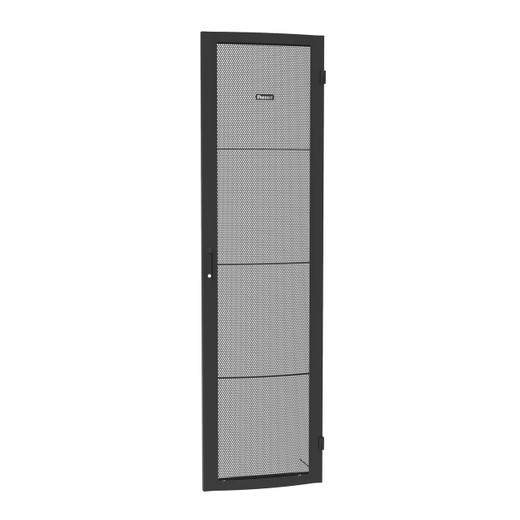

Panduit D68FDEB Net-Verse™ Front Door Single Hinge, 48RU x 600mm Wide, Black
The Panduit D68FDEB is a replacement or upgrade front door for 48RU Net-Verse™ enclosures, purpose-built for installations where cabinet access, security, or thermal management requirements have changed since the initial deployment. Single-hinge configuration suits narrow-aisle server rooms and hot-aisle/cold-aisle containment strategies where door swing clearance is constrained. 600mm width matches Panduit's D-type cabinet geometry, ensuring drop-in compatibility with existing Net-Verse infrastructure without frame modification. Integrators use this door to standardize physical security across mixed-vintage cabinet fleets, replace damaged doors without full enclosure swaps, or reconfigure access patterns when rack layouts change. The 48RU height covers full-height equipment spaces plus overhead cable management zones, eliminating the gap issues common with undersized retrofit doors.
Key Features
- 48RU height (88.71" / 2253.2mm) for full-height enclosure compatibility
- 600mm (23.6") width matches Net-Verse D-type cabinet frames
- Single-hinge design reduces door swing radius for aisle-constrained deployments
- Black powder-coat finish integrates with existing Panduit enclosure ecosystems
- RoHS compliant construction meets federal and enterprise procurement standards
- Package includes hinge hardware for direct mounting to Net-Verse frames
The single-hinge configuration opens the full door width to one side, requiring roughly 600mm of clearance in the swing direction—critical for installations where adjacent racks, walls, or containment panels limit door travel. This differs from dual-hinge (bifold) designs that split the door into two narrower panels; single-hinge delivers unobstructed access to the full rack width, which matters when pulling deep servers, installing horizontally mounted patch panels, or working with cable management arms that extend beyond the enclosure footprint. The 48RU height spans from floor to top of a standard 42U equipment space plus additional rack units for overhead cable management, UPS mounting, or blanking panels, ensuring the door covers the entire front opening without gaps that compromise security or thermal containment. Hinge hardware ships with the door assembly; installation aligns with existing Panduit Net-Verse frame mounting points using standard rack screws (no drilling or frame modification on compatible D-type enclosures). The black finish matches Panduit's standard Net-Verse palette, avoiding the visual inconsistency that comes from mixing manufacturers or finishes in multi-vendor data centers.
Deploy the D68FDEB when replacing a damaged or obsolete door on an existing 48RU Net-Verse enclosure, upgrading from a perforated door to a solid door for enhanced physical security in access-controlled environments, or standardizing door types across a cabinet fleet during phased data center consolidations. Single-hinge is the right choice for installations with less than 700mm of clearance in front of the rack—common in hot-aisle/cold-aisle containment where doors open into the cold aisle and must clear adjacent row doors, containment curtains, or fire suppression piping. It also suits installations where equipment depths vary widely within a single rack, and you need full-width access to avoid maneuvering 800mm-deep servers around a center hinge obstruction. The 600mm width is Panduit's standard for D-type Net-Verse enclosures; confirm your existing enclosure frame width before ordering, as Panduit also manufactures 800mm-wide variants for deeper cabinets (which require different door SKUs and frame compatibility). Single-hinge doors impose slightly higher lateral load on the hinge side of the frame compared to bifold designs, so verify frame condition if retrofitting onto enclosures older than 10 years or those with visible frame flex.
RoHS compliance ensures the door meets lead-free and hazardous-substance restrictions required for federal contracts, healthcare installations, and enterprise sustainability programs that mandate third-party environmental certifications. The single-hinge design also simplifies long-term hinge maintenance compared to bifold mechanisms—fewer pivot points mean fewer wear surfaces to inspect during annual infrastructure audits, and replacement hinge kits (if needed after years of service) install without door removal. This door is engineered specifically for Panduit's Net-Verse D-type 48RU enclosure family; verify enclosure model compatibility via Panduit's online cabinet configurator if integrating with non-Net-Verse frames or third-party manufacturers, as mounting hole patterns and hinge geometry vary across vendors.
