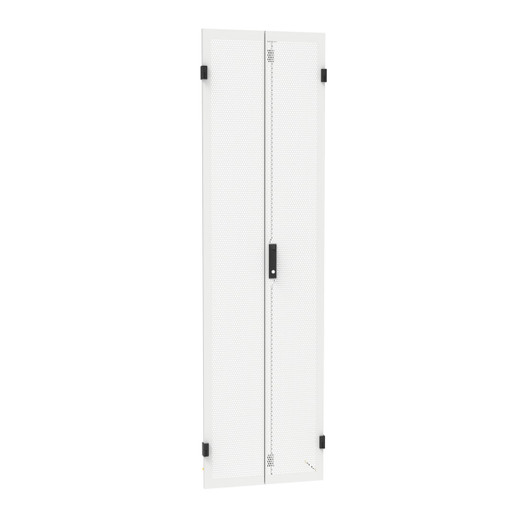

Panduit D65RDEW 45RU Split-Hinged Cabinet Door

Panduit D65RDEW Net-Verse Split-Hinged Cabinet Door

The Panduit D65RDEW delivers split-hinge door functionality for 45RU Net-Verse enclosures, enabling half-door access without removing the entire panel. Built for 600mm-wide cabinets, this white-finished door supports quick equipment changes in live environments where full door swing clearance is limited or where adjacent racks constrain access. The split-hinge design lets installers open the top or bottom half independently, maintaining security on the closed section while servicing active gear. RoHS compliant construction meets procurement requirements for federal and enterprise data center projects.

Key Features

• Split-hinge design allows independent top/bottom half access without full door removal
• 45RU height (83.43") fits full-height Net-Verse enclosures, 600mm (23.8") width standard
• White powder-coated finish matches Panduit Net-Verse aesthetic for consistent rack-row appearance
• RoHS compliant for federal TAA and enterprise green procurement compliance
• Hinged construction eliminates need for temporary door storage during maintenance

Data center and network operations teams face a recurring problem: accessing equipment in densely packed rack rows where full door swing isn't possible, or where opening an entire door exposes too much critical infrastructure at once. The D65RDEW's split-hinge mechanism addresses both constraints. Each half opens on its own hinge assembly, so you can reach top-mounted UPS batteries or bottom patch panels without swinging a full 83-inch door into an aisle or adjacent rack. The closed half remains secured, maintaining physical access control on the portion of the cabinet not under service. This matters in colocation environments where multiple technicians work the same row, or in secure facilities where audit logs require minimizing exposure windows.

The 600mm width specification is critical for compatibility. Panduit's Net-Verse line uses metric sizing aligned with IEC standards, and this door is engineered specifically for the D-type 600mm-wide enclosure family. It will not fit 800mm or 1000mm wide variants without modification, and attempting cross-compatibility with non-Net-Verse racks risks hinge misalignment or latch failure. The 45RU height spans the full vertical range of a standard floor-standing enclosure, from base to top panel. If you're running shorter enclosures (25RU, 37RU), verify door height compatibility with Panduit's configurator—oversized doors can interfere with overhead cable management or create structural load imbalance.

Split-hinge doors trade some rigidity for operational flexibility. The center seam where the two halves meet is a potential point of air leakage in hot-aisle/cold-aisle containment deployments. If your installation uses hard containment with pressure differentials above 0.05 inches of water column, budget for additional weatherstripping or gasketing along the split line to maintain thermal separation. For standard open-air rows or soft containment curtain systems, the factory door seals are sufficient. The hinge hardware is rated for 50,000 cycles per Panduit's internal testing, equivalent to roughly ten years of daily access in a moderately active data center. Lubricate hinge pins annually with dry PTFE spray—avoid oil-based lubricants that attract dust in particulate-heavy environments like warehouse edge deployments or industrial network closets.

This door is sold as a standalone replacement or add-on component, not as part of a complete enclosure kit. You'll receive the door assembly with pre-mounted hinges and latch hardware, but installation requires the corresponding hinge receivers and strike plates to be present on your existing Net-Verse frame. If you're retrofitting an older solid-door enclosure, confirm your frame rails have the tapped mounting holes at the split-hinge positions—early D-type frames (pre-2015) used a different hole pattern that won't align. Panduit's technical support can cross-reference your enclosure serial number to confirm compatibility, or consult the Net-Verse configurator tool on their partner portal. Installation is straightforward for anyone familiar with rack hardware: align hinge pins, secure retaining clips, adjust latch strike to eliminate rattle, verify both halves seal evenly. Budget 20 minutes per door for a two-person install team.

The white finish is a powder-coated steel substrate, not paint. It resists chipping from repeated tool contact and won't yellow under UV exposure in environments with natural light or high-intensity LED fixtures. For mixed-vendor rack rows, be aware that "white" is not a universal standard—Panduit's white skews toward a neutral gray-white (RAL 9003 equivalent), which may not match the bright white of some APC or Eaton enclosures. If aesthetic consistency across mixed brands is a project requirement, request color samples before ordering volume. The door is solid panel construction (non-vented)—if you need perforated doors for heat dissipation, specify the D65RDEV vented variant instead.

RoHS compliance is mandatory for U.S. federal procurements under FAR 52.223-21 and for California state contracts. The D65RDEW meets the lead-free, mercury-free, cadmium-free material restrictions, with full material declaration documentation available through Panduit's compliance portal. This matters for GSA schedule purchases, DoD installations, and any project where LEED or green building credits depend on low-toxicity material sourcing. The door ships individually packaged with protective corner guards and an installation guide—verify your existing frame has compatible hinge receivers before ordering.
