Middle Atlantic 30W45SP/42DNET Encl - SNE30N-4542

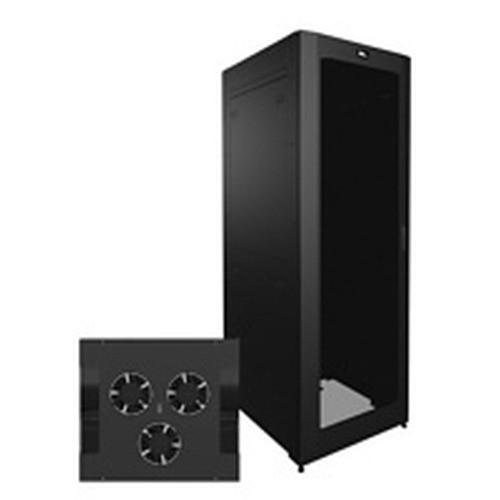

Middle Atlantic SNE30N-4542 45U SNE Series Four-Post Rack Enclosure

Overview

The Middle Atlantic SNE30N-4542 is a 45U, 30-inch-wide, four-post freestanding steel enclosure from the Middle Atlantic SNE Series rack line — engineered specifically for networking systems with dense cabling loads. Where standard 19-inch two-post open frames buckle under the cable management demands of network-patching environments, this enclosure provides the structural depth and four-point support needed to keep patch panels, switches, and associated surveillance infrastructure organized and accessible. At 42 inches deep, it accommodates deep-chassis network equipment without the rear-cable gymnastics that shallower frames force on installers.

If you are speccing rack enclosures for a security operations room, IDF closet, or structured cabling backbone supporting IP camera infrastructure, the SNE30N-4542 belongs on your shortlist.

Key Features

• 45 RU Capacity: Forty-five rack units in a single enclosure means you can consolidate an entire floor's worth of switching, patch panels, NVRs, and power distribution without stacking multiple smaller frames. At high-density sites — think a 64-camera deployment with dedicated PoE switches, a core switch, NVR storage, and UPS — 45U is frequently the minimum you want in a primary rack.
• 30-Inch Width: The 30-inch external footprint (versus the common 24-inch width) gives you meaningful extra interior real estate for side cable management channels and wider blanking panels. For network-patching environments where horizontal cable managers occupy every other RU, the added width keeps airflow lanes open without requiring external cable troughs.
• 42-Inch Depth: Deep-chassis enterprise switches, modular NVRs, and rackmount UPS units routinely run 28–40 inches in depth. The 42-inch internal depth of the SNE30N-4542 handles all of them with room for rear cable dressing — no forced rear-rail repositioning mid-installation.
• Four-Post Freestanding Mounting: Four-post construction distributes equipment weight evenly across front and rear rails, which is essential once you load heavy patch panels, dense PoE switches, and a 2U or 4U rackmount NVR simultaneously. Freestanding means no wall anchoring required — useful in raised-floor data closets or equipment rooms where wall penetration is restricted.
• Steel Construction: All-steel frame and panels provide the rigidity to hold a fully loaded 45U rack without flex at the top rails — a real concern with aluminum-hybrid frames at this capacity. Steel also supports proper grounding continuity through the cabinet structure, which matters for low-voltage security systems operating near noisy switching hardware.
• Black Finish: The black powder coat blends with standard rack-room aesthetics and resists the fingerprint accumulation that silver/grey finishes show heavily in active equipment rooms. Minor cosmetic point, but relevant in client-facing NOC or security command center deployments.
• SNE Series — Network-Patching Optimized Design: Middle Atlantic's SNE Series is explicitly designed for networking systems with dense cabling — this isn't a generic AV rack repurposed for IT. That means the internal rail geometry, cable entry points, and accessory ecosystem (PDUs, cable managers, blanks) are designed around the patching workflow, not adapted from it.
• No Seismic Rating: The SNE30N-4542 does not carry a seismic certification. For deployments in California, Japan, or any jurisdiction requiring Zone 4 seismic compliance, specify a seismic-rated enclosure from the Middle Atlantic lineup instead. This is a hard constraint — not a gray area.

Integration & Compatibility

The SNE30N-4542 accepts standard 19-inch rackmount equipment on both front and rear rails. As a four-post enclosure in the Middle Atlantic SNE Series, it is designed to work with Middle Atlantic's accessory ecosystem: horizontal and vertical cable managers, PDU mounting brackets, blanking panel kits, and side panels. For surveillance-specific builds, pair this enclosure with rackmount NVRs and managed PoE switches that handle camera power and data distribution — the 42-inch depth comfortably accepts the chassis sizes common to enterprise-grade NVRs (Milestone, Genetec, Avigilon appliances) without rear rail adjustment. Factor in a rackmount UPS at the bottom of the rack; the four-post structure supports the weight of a 2U–4U UPS without floor-loading concerns typical of top-heavy two-post open frames.

Note that this enclosure ships as a structural frame — side panels, top panels, doors, and cable management accessories are ordered separately through the Middle Atlantic SNE Series accessory catalog. Confirm the full accessory list against your enclosure plan before procurement to avoid delays on installation day.

Frequently Asked Questions

Q: What is the rack unit capacity of the SNE30N-4542?

A: The SNE30N-4542 provides 45 rack units (45U) of usable space, sized for large networking and surveillance equipment deployments.

Q: What are the external dimensions of the SNE30N-4542?

A: The enclosure is 30 inches wide and 42 inches deep. Height follows the standard 45U rack form factor. Verify ceiling clearance before installation in low-headroom equipment rooms.

Q: Is the SNE30N-4542 seismic rated?

A: No. The SNE30N-4542 does not carry a seismic rating. For deployments requiring seismic compliance (e.g., California Title 24, Zone 4 installations), select a seismic-certified enclosure from the Middle Atlantic lineup.

Q: Does the SNE30N-4542 include doors, side panels, or cable managers?

A: The SNE30N-4542 is a four-post freestanding enclosure frame. Doors, side panels, top panels, and cable management accessories are available separately through the Middle Atlantic SNE Series accessory ecosystem. Specify these separately when ordering.

Q: What type of equipment is the SNE30N-4542 designed for?

A: Middle Atlantic designates the SNE Series for networking systems with dense cabling, particularly environments utilizing network-patching equipment. It is well-suited to IT/network closets, security operations rooms, and structured cabling backbones supporting IP surveillance infrastructure.

Q: Can the SNE30N-4542 be wall-mounted?

A: No. The SNE30N-4542 is a freestanding four-post enclosure and is not designed for wall mounting. It stands independently on the floor.

Jerry Tildsen

The SNE30N-4542 (also searched as SNE30N 4542) comes up frequently in my conversations with integrators speccing out the infrastructure layer of large IP camera deployments. The 42-inch depth is the spec that matters most — I've seen too many installs where someone selected a 29-inch or 32-inch enclosure and then had to creative-mount the rear rails of their NVR chassis or run exposed cable loops to compensate. At 42 inches deep, this enclosure handles virtually every enterprise-class PoE switch and rackmount NVR you'll encounter without modification.

Technical Highlights:

• 45U Capacity: Enough vertical space to house a full surveillance stack — patch panels, core and edge PoE switches, NVR appliance, rackmount UPS, and KVM — in a single enclosure without overflow to a second frame.
• 30-Inch Width: The extra 6 inches over a standard 24-inch-wide rack translates directly into usable side-cable-management space, which dense patching environments consume fast. Keeps horizontal runs off the equipment faces.
• Four-Post Steel Construction: Four-point rail support is non-negotiable once cumulative rack weight climbs above 400–500 lbs on a fully loaded 45U. Steel maintains rail parallelism under load — aluminum-hybrid frames can rack (literally) under those conditions.

Deployment Considerations:

• The SNE Series is built for networking/patching environments, so plan your accessory order (PDU brackets, cable managers, blanking panels, doors) alongside the enclosure — the SNE accessory ecosystem is specific to this series and not universally interchangeable with Middle Atlantic's AV rack line.
• No seismic rating means this enclosure is not appropriate for California, Pacific Northwest, or any other seismic-zone installation where code compliance requires a rated cabinet. Confirm jurisdiction requirements before specifying.

The SNE30N-4542 is the right frame for a primary IDF or security operations closet anchoring a 32–128 camera system — deep enough for the NVR, wide enough for dense patching, and built heavy enough to carry the load without flex.
