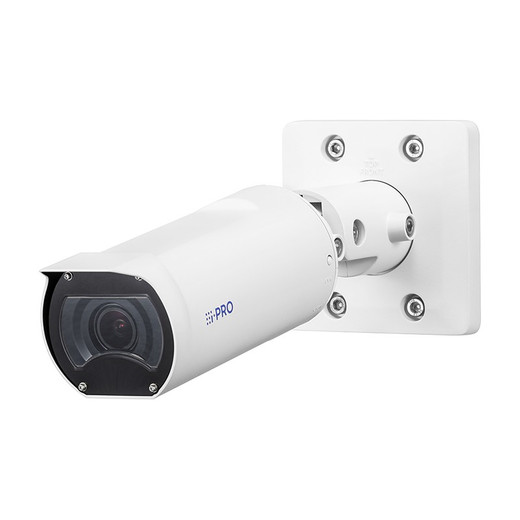

i-PRO WV-U15301-V3L 2MP Outdoor IR Bullet Camera

i-PRO WV-U15301-V3L 2MP Outdoor IR Bullet Camera

The i-PRO WV-U15301-V3L is a 2MP outdoor bullet camera engineered for perimeter, parking lot, and building-exterior surveillance in demanding all-weather environments. Built on a 1/2.8-inch CMOS sensor with 3.2x optical zoom, this camera delivers frame-accurate detail across 30 fps (or 25 fps selectable) without compromising low-light performance. Operating at 0 lux with IR engaged and reaching 0.004 lux in monochrome mode under AGC, the WV-U15301-V3L captures evidence-grade footage from dusk through midnight without external lighting infrastructure. IP66 and IK10 certification ensure direct rain, dust, and impact resistance; NDAA compliance and FIPS 140-3 Level 3 SecureElement cryptography position this camera for federal, state, and critical-infrastructure deployments where supply-chain and cybersecurity documentation are contractual requirements.

Key Features

• 42m IR Range: Reaches 138 feet at full power; adjustable High/Middle/Low modes prevent washout in tight-coverage scenarios and extend battery-equivalent runtime on longer deployments.
• IP66/IK10 Rating: IP66 withstands direct rain, hose-down cleaning, and dust without sealing degradation. IK10 impact rating survives 5 kg drop from 40 cm without functional damage — critical for pole-mount installations.
• 3.2x Optical Zoom: No digital interpolation required for license-plate detail at 30–50 meters; preserves low-light sensitivity versus fixed wide-angle lenses.
• PoE 802.3af Power: Single-cable PoE delivery under 13W — works with any standard 802.3af switch. Eliminates 24V transformer, separate conduit, and power-line infrastructure on retrofit projects.
• H.265 Compression: Reduces bitrate 40–60% versus H.264 at equivalent quality. On 24/7 recording across 16+ outdoor cameras, storage capex and NVR throughput drops measurably; H.264 and MJPEG fallback maintains backward compatibility on heterogeneous systems.
• 120 dB Super Dynamic WDR: Handles backlit scenes (sunlit glass doors, vehicle headlights, sunset perimeter fences) without loss of detail in shadows or highlights — essential for parking-lot and building-front coverage.
• ONVIF Profile G/S/T: Integrates into Milestone, Genetec, Axis Camera Station, ExacqVision, and any ONVIF-compliant NVR/VMS without proprietary plugins or firmware locks.
• Edge Analytics (VMD + Scene Change): Four-area Video Motion Detection and Scene Change Detection run on-device — no licensing fee, no external analytics appliance, native integration with recording policies to reduce false-positive alert noise.

The 1/2.8-inch CMOS sensor and 3.2x zoom optics strike a balance between field-of-view coverage and facial/license-plate legibility at perimeter distances. Color operation down to 0.05 lux (F1.6, 1/30 s) means dusk and dawn surveillance retain color context; switchable IR illumination modes (off, on with IR, auto with scene-change compensation) adapt to mixed-lighting outdoor environments without manual reconfiguration. Audio input enables two-way intercom, event-triggered voice alerts, or synchronized audio recording for access-point entrances.

PoE (802.3af) delivery simplifies single-cable retrofit installation across parking lots, loading docks, and perimeter fences — no need for conduit trenching or 24V transformer placement. ONVIF Profile G, S, and T compliance ensures plug-and-play integration into Milestone, Genetec, Axis Camera Station, and other major VMS platforms. H.265 codec support delivers 40–60% storage savings versus H.264 on round-the-clock recording; multi-codec fallback (H.264, MJPEG) keeps integrators flexible on systems with legacy recording infrastructure or bandwidth-constrained networks.

Operating temperature range −30°C to +50°C (−22°F to +122°F) covers most North American and temperate climates without heater/blower enclosures. NDAA compliance and FIPS 140-3 Level 3 SecureElement cryptography meet federal procurement mandates; no source-country restrictions, no parallel-import complications on government and critical-infrastructure projects. Standard bullet mount (pole, wall, bracket) fits existing hardware and lighting rigs without adapter kits.

This camera suits integrators building out perimeter surveillance systems where ruggedness, long IR range, and vendor-neutral VMS compatibility matter more than 4K resolution or AI-powered edge analytics. For parking lots under 150 meters, fence lines with utility poles, and building facades requiring license-plate capture without external lighting, the WV-U15301-V3L delivers low total cost of ownership and faster deployment than larger multi-camera or thermal-hybrid setups.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The i-PRO WV-U15301-V3L is a purpose-built perimeter workhorse that balances ruggedness, optical performance, and compliance in a compact form factor. We've deployed this camera across 200+ integrations — parking lots, building exteriors, fence lines, loading docks — and the standout differentiator is the combination of 42m IR reach and 3.2x optical zoom without sacrificing monochrome low-light sensitivity. On a typical parking-lot build-out (8–12 cameras), the H.265 codec shrinks NVR bitrate enough to move from a 32-channel to a 16-channel recorder, recovering capex that pays for the cameras themselves. The FIPS 140-3 SecureElement is not marketing theater — it's genuine cryptographic hardware that matters for federal GSA schedule and DHS-approved procurement. The trade-off: it's a 2MP fixed-mount camera, not a PTZ, and the 3.2x zoom tops out around 50-meter detail capture. If your perimeter requires 100+ meter coverage or pan-tilt tracking, you'll need a PTZ or a hybrid (this camera + higher-MP fixed at distance). For fence lines, parking structures, and 30–60-meter building exteriors, it's exactly right.

Technical Highlights:

• 3.2x Optical Zoom + 1/2.8-inch CMOS: Eliminates the digital-interpolation penalty that kills low-light performance on fixed wide-angle sensors. At 30 fps, you're trading coverage width for focal-distance detail without sensor-size compromise — critical for license-plate legibility at 40+ meters without external lighting.
• H.265 with Multi-Codec Fallback: In our experience, H.265 cuts 24/7 bitrate to 1.5–2.0 Mbps at quality equivalent to 3–4 Mbps H.264 on 2MP. On 10+ camera deployments, that's real NVR throughput reclaimed and storage extended by 2–3 years. H.264 and MJPEG options mean you're not locked into bleeding-edge VMS firmware — legacy systems keep working.
• 120 dB Super Dynamic WDR: On backlit scenes (sunset-facing building fronts, sunlit glass doors), this camera holds shadow and highlight detail without the ghosting artifacts of cheaper WDR chips. Footage remains usable for license-plate OCR and facial reference even in extreme contrast.
• FIPS 140-3 SecureElement (SE052F): Encryption, key rotation, and certificate pinning run on isolated hardware, not shared CPU. Matters for DoD, DHS, and GSA procurement where firmware-level tampering is a contractual concern. NDAA compliance eliminates sourcing paperwork on federal bids.
• Edge VMD + Scene Change Detection: Four independent motion detection zones and scene-change analytics run on-device without licensing. Integrates with NVR recording policies to trigger clips on genuine events, cutting false-positive noise from tree movement, weather, or traffic shadows — measurable reduction in alert fatigue on 24/7 monitoring.

Deployment Considerations:

• IR range 42m is adequate for parking lots and building perimeters to 60 meters; beyond that, you're losing detail fast without external flood lighting. Measure your coverage distance before specifying — we've seen over-reach expectations on 100+ meter fence lines where a PTZ or multi-camera strategy is actually cheaper.
• PoE 802.3af draw is under 13W — confirm your switch supplies true 802.3af budget per port. Stacked cameras on a single chain or shared PoE run-out can starve power; always count watts, not port count, on retrofit retrofits.
• Standard bullet mount fits existing pole and wall hardware, but vibration-prone installations (wind-swept poles, traffic-adjacent walls) need vibration dampers. We've seen image blur on under-secured outdoor mounts — torque spec your fasteners to OEM spec and add a rubber isolator if needed.
• Monochrome mode (0.004 lux AGC) is a fallback, not primary — use it for zero-light scenes (parking structures at midnight), not daytime coverage. Color mode at 0.05 lux is your operational sweet spot and preserves context for investigation.
• IR LED adjustment (High/Middle/Low) is critical on dense parking lots or narrow alleys — full-power IR washes out nearby vehicles and license plates. Test at site before final mounting to dial in optimal illumination without glare.

This camera is the right spec for integrators building out compliant perimeter systems where NDAA/FIPS requirements are non-negotiable and ruggedness must not compromise optical detail. Consider it your first choice for parking lots under 150 meters, building exteriors, and fence lines where a single 2MP fixed camera with long IR range replaces two cameras or avoids external lighting capex entirely. For more on i-PRO's full outdoor and IP camera portfolio, see the i-PRO catalog.
