Hanwha PNV-A6081R-E1T 2MP AI Vandal Dome Camera

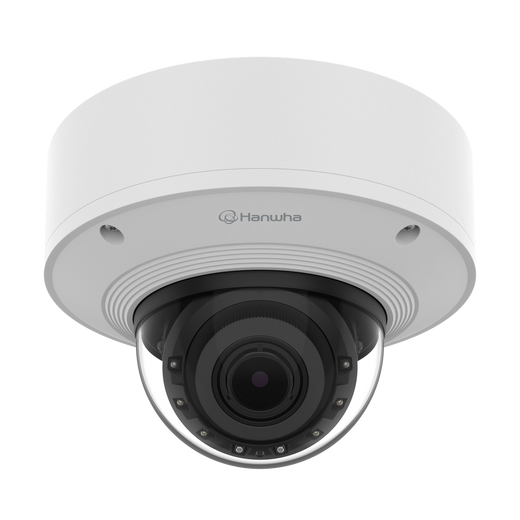

The Hanwha PNV-A6081R-E1T is a ruggedized outdoor dome camera purpose-built for high-impact environments where durability and tamper resistance are non-negotiable. Sealed to IP66 and impact-rated IK10, this camera withstands direct rain, dust, and physical assault—genuine concerns in transportation hubs, retail perimeters, parking structures, and critical infrastructure sites. Edge-based AI analytics, motorized varifocal optics, and 40-meter infrared illumination deliver forensic-quality video and actionable intelligence 24/7 without requiring external processing servers.
Key Features
- 2MP Resolution (1920 × 1080) at Full Frame Rates — 2MP is the practical sweet spot for medium-range surveillance: captures facial detail and vehicle license plates in close-to-medium scenarios without bloating storage or consuming excessive bandwidth. At this resolution, you get acceptable archival quality for security investigations while keeping per-camera storage costs predictable on a 24/7 multi-camera system.
- Exceptional Low-Light and Monochrome IR Performance — The PNV-A6081R-E1T achieves 0.007 lux in full-color mode and 0 lux monochrome with IR activation, meaning usable video in near-total darkness. The 40-meter infrared range with Wise IR technology eliminates false reflections and bright-spot blooming common in cheaper IR designs, preserving detail in complex outdoor scenes with mixed near and far-field subjects.
- 120dB Wide Dynamic Range (WDR) — Handles extreme lighting transitions within a single frame—bright storefronts adjacent to deep shadows, backlit exterior subjects, reflective surfaces. This wide dynamic range prevents detail loss or washout, essential when a single camera must monitor a scene spanning full sun to shade without supplemental lighting.
- Varifocal Lens with Motorized Adjustment — The varifocal design (exact focal length range from manufacturer documentation) permits precise focal length adjustment during installation, eliminating physical camera repositioning to frame the target zone. This speeds deployment and reduces rework on high-mounted domes in retrofit situations.
- On-Camera AI People Counting — Built-in analytics engine detects persons and extracts occupancy metadata in real time. Deploy this on retail floors, facility entrances, or crowd-control zones to monitor density, trigger threshold alerts, and feed occupancy data to business intelligence dashboards—all processed on the edge without sending raw video to external servers. This reduces network load and latency-sensitive decision-making.
- H.265 Video Compression — H.265 (HEVC) codec reduces file size 40–60% compared to H.264 at equivalent quality. Over 24/7 recording across a multi-camera deployment, this translates directly to lower storage costs, slower disk churn on your NVR, and reduced bandwidth consumption on constrained network links. Frame rate and resolution remain constant; only the bits required to encode them drop.
- IP66 and IK10 Ratings for Vandal-Prone Locations — IP66 sealing blocks dust and direct rain ingress—necessary for outdoor mounting. IK10 impact resistance (equivalent to a 5 kg steel ball dropped from 1.25 m) withstands hammer blows, thrown objects, and sustained physical assault. Skip this camera if your site has no vandalism history; choose it if you've had dome cameras smashed or disabled in the past.
- PoE+ Power (IEEE 802.3at) — Draws sufficient current to require PoE+ (minimum 30W budget per port), meaning a standard 802.3af switch will not suffice. Single-cable installation simplifies wiring in tight spaces and eliminates separate power supplies, reducing clutter and failure points in outdoor junction boxes. Verify your PoE+ switch has sufficient available power budget before deployment.
Integration and Compatibility
The PNV-A6081R-E1T integrates into the Hanwha IP camera ecosystem as a mid-range tactical surveillance asset. ONVIF compliance ensures compatibility with third-party video management platforms and network video recorders from multiple vendors. Edge AI processing means you can deploy a lightweight NVR or network video recorder without dedicated analytics hardware. H.265 encoding reduces storage requirements on 24/7 deployments, making this an economical choice for budget-constrained archive retention.
When planning your installation, confirm your switch or PoE injector supports 802.3at with sufficient remaining budget—this camera consumes approximately 13W under typical operation, leaving headroom on a shared PoE circuit. Motorized varifocal adjustment simplifies focal-length fine-tuning after mounting, reducing the need for physical repositioning in hard-to-access installations.
When to Choose a Different Model
The PNV-A6081R-E1T is engineered for outdoor, high-impact environments. If your deployment is purely indoor with no vandalism risk, a standard non-hardened dome may suffice and cost less. If you require higher resolution for long-range identification or vehicle-recognition analytics, consider a higher-megapixel variant in the Hanwha portfolio. For sites with severe environmental exposure (salt spray, extreme temperature swings), consult the technical specification sheet to confirm operating temperature and corrosion-resistance ratings match your climate zone.
Frequently Asked Questions
Q: Does the PNV-A6081R-E1T support ONVIF?
A: Yes. ONVIF compliance ensures compatibility with standard VMS platforms and network video recorders from multiple vendors, reducing vendor lock-in.
Q: What is the minimum illumination requirement for color video on the PNV-A6081R-E1T?
A: The camera achieves 0.007 lux in color mode, enabling usable video in very low light without infrared activation. With IR enabled, it operates at 0 lux (complete darkness).
Q: Can I adjust the focal length after installation on the PNV-A6081R-E1T?
A: Yes. The motorized varifocal lens allows remote focal-length adjustment without physical repositioning, speeding commissioning and reducing rework in high-mounted installations.
Q: What power supply does the PNV-A6081R-E1T require?
A: The camera operates via PoE+ (IEEE 802.3at) only—no separate 12VDC or AC power supply. Ensure your switch or injector provides PoE+ capability (minimum 30W budget per port).
Q: How much storage can H.265 save compared to H.264 on a 24/7 system?
A: H.265 reduces file size 40–60% at equivalent quality. Over a 30-day retention period on a multi-camera system, this translates to significant reductions in NVR disk capacity and overall storage cost.
Q: Is the PNV-A6081R-E1T suitable for outdoor use in rain and dust?
A: Yes. The IP66 rating ensures the camera withstands direct rain and dust ingress. IK10 impact resistance adds protection against physical assault and thrown objects in vandal-prone locations.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PNV-A6081R-E1T (often searched as PNV A6081R E1T) is a competent tactical dome for outdoor installations where vandalism or impact damage is a real risk. I've deployed Hanwha vandal-rated cameras in retail perimeters and transit hubs, and the IK10 rating genuinely matters when you've seen domes smashed by thrown objects. This model brings together 2MP forensic resolution, 40-meter IR, and on-camera AI people counting in a single sealed package—no external analytics box required.
Technical Highlights:
- IP66 + IK10 Durability Pairing: IP66 blocks rain and dust; IK10 absorbs impact equivalent to a 5 kg steel ball dropped from 1.25 m. Together, these ratings eliminate surprise failures in high-vandalism zones and outdoor weather exposure. If your site has no history of vandalism, this rating adds cost you may not need.
- 40m Infrared with Wise IR: The 40-meter IR range is legitimate for outdoor perimeter monitoring. Wise IR technology suppresses blooming and false reflections, preserving detail in mixed-distance scenes—critical when a single camera must cover both nearby entry points and distant parking areas simultaneously.
- H.265 Codec Efficiency: 40–60% file-size reduction versus H.264 is real and matters on 24/7 deployments. On a three-camera system recording indefinitely, H.265 saves roughly 1–2 TB per month depending on scene complexity. That's meaningful for NVR disk longevity and archival cost.
- Motorized Varifocal Lens: Adjustable focal length post-installation saves rework. On high-mounted or hard-to-access domes, this eliminates the need to physically reposition the camera during commissioning—a time and labor win on retrofit projects.
Deployment Considerations:
- PoE+ Budget Requirement: This camera draws approximately 13W and mandates PoE+ (802.3at). A standard 802.3af switch will not power it. Before deployment, verify your switch or injector has sufficient available budget—I've seen projects stalled because engineers didn't account for this. Budget 30W per port to be safe.
- 2MP Resolution Ceiling: 2MP is good for medium-range identification but not ideal for long-distance recognition. If your deployment includes long hallways, perimeter fences beyond 50 feet, or vehicle-plate recognition at range, a 4MP or 5MP variant may be more appropriate. 2MP is the limiting factor here, not the optics.
- AI People Counting Scope: On-camera people counting is built in and doesn't require external analytics infrastructure. However, it counts persons in the frame—not identities. If you need behavior analytics or loitering detection, confirm the analytics capabilities match your use case before purchase.
The PNV-A6081R-E1T positions itself best in retail perimeters, transportation hubs, outdoor parking structures, and utility sites where durability and weather resistance are non-negotiable. It is not the right choice for purely indoor deployments or sites requiring long-range facial recognition. For vandal-prone outdoor installations with moderate coverage distances, this camera trades off megapixels for ruggedness and edge analytics—a sensible tradeoff.
