Middle Atlantic RFR-2028GE 20U Mobile Reference Furniture Rack
Overview

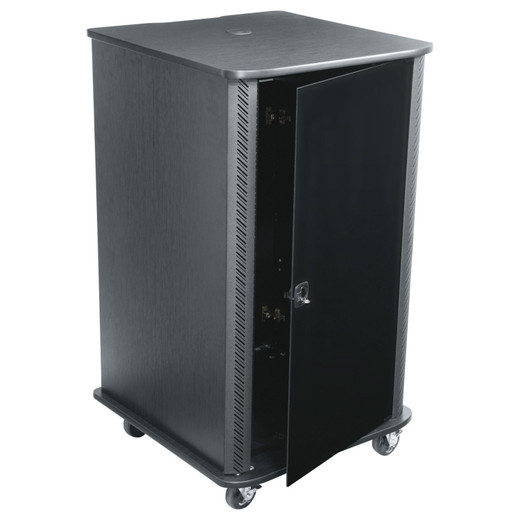

The Middle Atlantic RFR-2028GE is a 20-rack-unit mobile furniture rack built for professional AV and security equipment installations where appearance and structural integrity both matter. At 27.3 inches wide, 41.95 inches tall, and 28.25 inches deep — with a grained ebony wood finish — it fits naturally into boardrooms, command centers, and control rooms that can't accommodate an exposed steel open-frame. The RFR-2028GE ships with a UL-certified 350 lb load rating and 10-32 rack rails, making it a practical choice for dense equipment loadouts rather than a purely cosmetic upgrade.
The Middle Atlantic Middle Atlantic rack and enclosure catalog spans everything from open-frame racks to fully enclosed furniture-grade systems; the RFR series occupies the furniture tier — wood construction, finished exterior, designed to sit in a finished room without looking like a server closet.
Key Features
- 20 Rack Units (35 in usable height): 20 RU of mounting space translates to 35 inches of usable height — enough for a mid-density NVR, patch panel, UPS, and several 1U components without a secondary rack. For a network video recorder stack or a small security headend, 20U hits the sweet spot between compact and capable.
- UL-Rated 350 lb Load Capacity: The 350 lb UL load rating isn't a marketing estimate — it's a tested structural limit. That's enough headroom for a fully populated NVR, a rack-mount UPS, multiple switches, and associated cabling without approaching the structural ceiling. Plan your load budget and you won't be guessing.
- 23.31 in Usable Depth: Standard 19-inch rackmount equipment runs 18–24 inches deep. The RFR-2028GE's 23.31 inches of usable depth accommodates most 1U and 2U gear without forcing you to angle cables or leave equipment partially unsupported. Unusually deep chassis (some UPS units exceed 24 in) won't fit — check your deepest component first.
- Grained Ebony Wood Finish: Wood construction with a grained ebony finish means this rack passes visual inspection in finished spaces — conference rooms, executive suites, courtrooms — where a bare steel rack or even a powder-coated metal enclosure would look out of place. The finish isn't decorative-only; the wood cabinet structure also provides incidental acoustic damping compared to thin-wall metal enclosures.
- 10-32 Rack Rails: 10-32 threaded rails are the commercial AV and security standard. Nearly all professional-grade NVRs, managed PoE switches, patch panels, and 1U UPS units ship with 10-32 hardware. No cage nut retrofitting required — rack screws thread directly.
- Monitor Mounting Support: The RFR-2028GE supports monitor mounting, which matters in operator stations and security consoles where the display needs to be co-located with the rack hardware rather than on a separate desk arm. Confirm your monitor bracket compatibility with Middle Atlantic's monitor mount accessories before ordering.
- Mobile Form Factor (28.25 in total depth): The overall 28.25-inch depth is sized for mobility — shallow enough to roll through a standard 36-inch doorway and reposition during system commissioning or room reconfiguration. This is the core advantage of the RFR mobile series over fixed furniture racks.
- 27.3 in Overall Width: At 27.3 inches wide, the RFR-2028GE is wider than the 19-inch panel — the extra width is the wood cabinet surround. Factor this into your floor plan; two units side by side require approximately 55 inches of linear space.
Integration & Compatibility
The RFR-2028GE accepts any standard 19-inch rackmount equipment — NVRs, rack-mount UPS units, managed switches, patch panels, KVM switches, and media converters. The 10-32 threaded rail system is compatible with the overwhelming majority of commercial security and AV hardware shipped today. Blanks, brush panels, and cable management accessories from the Middle Atlantic product line install directly without modification.
Monitor mounting hardware must be sourced separately and verified for compatibility with the RFR cabinet surround geometry. Middle Atlantic offers a range of monitor mounting solutions designed for the RFR series. If you are integrating this rack into a security camera system headend, verify that your NVR's chassis depth falls within the 23.31-inch usable depth limit before specifying the RFR-2028GE.
This unit does not include power distribution, ventilation fans, or cable management panels — all are available as rack accessories and should be planned into the initial BOM. For deployments with significant heat-generating equipment (dense NVR arrays, GPU-based analytics servers), evaluate whether the enclosed cabinet geometry requires supplemental fan panels to maintain acceptable operating temperatures.
Frequently Asked Questions
Q: What is the UL-rated load capacity of the RFR-2028GE?
A: The RFR-2028GE carries a UL-rated load capacity of 350 lbs (158.8 kg). This is a tested structural limit, not an estimated figure.
Q: What rail type does the RFR-2028GE use — cage nut or threaded?
A: The RFR-2028GE uses 10-32 threaded rack rails. Standard rack screws thread directly; no cage nuts are required.
Q: What is the usable depth inside the RFR-2028GE?
A: Usable depth is 23.31 inches (59.2 cm). Equipment deeper than 23.31 inches will not be fully supported. Check your deepest component — particularly UPS units — before finalizing the specification.
Q: Does the RFR-2028GE support monitor mounting?
A: Yes. The RFR-2028GE includes monitor mounting support. Monitor mounting hardware is sourced separately; verify bracket compatibility with the RFR cabinet surround before ordering.
Q: How many rack units does the RFR-2028GE provide?
A: The RFR-2028GE provides 20 rack units (RU) of mounting space, equating to 35 inches (88.9 cm) of usable height.
Q: Is the RFR-2028GE suitable for a finished interior space like a boardroom or control room?
A: Yes. The grained ebony wood finish and furniture-grade construction make the RFR-2028GE appropriate for finished interior environments — boardrooms, executive suites, and security control rooms — where exposed metal rack infrastructure would be visually unsuitable.
The RFR-2028GE is one of those units I recommend when an integrator's client absolutely will not accept a metal rack in a client-facing space but still needs a legitimate 350 lb UL-rated structure — not a furniture prop. Twenty rack units with 23.31 inches of usable depth handles a real security headend: a 4U NVR, a managed PoE switch, a 1U UPS, a patch panel, and a KVM, with RU to spare. The wood cabinet with grained ebony finish passes the executive room test without compromise on structural integrity.
Technical Highlights:
- 350 lb UL Load Rating: UL-tested, not self-certified. At 350 lbs you can populate all 20U with commercial-grade equipment and not worry about the structure — the limiting factor will be your power budget before the load rating.
- 23.31 in Usable Depth: Fits the vast majority of 1U–4U security and AV gear. The hard constraint is anything over 23.31 inches — some extended-depth UPS units and older enterprise NVR chassis hit 24–26 inches and simply won't fit. Pull your deepest component's spec sheet before committing.
- 10-32 Threaded Rails: No cage nut adapters, no rail conversion kits. Every major NVR, managed switch, and patch panel in the security channel ships with 10-32 hardware. Installation is straightforward.
Deployment Considerations:
- The RFR-2028GE is 27.3 inches wide overall — account for that in your floor plan. Two units side by side consume roughly 55 inches of floor width, which catches integrators off guard in tighter control room layouts.
- The enclosed wood cabinet is not a ventilated server cabinet. Dense heat-generating loads (analytics servers, multi-drive NVR arrays under sustained write) need supplemental fan panels or active ventilation accessories — plan this in the BOM before installation, not after the client notices thermal throttling.
Best fit: a security or AV headend in a finished client-facing environment — a law firm's conference floor, a school's administrative office, a hospitality property's back-of-house that doubles as a manager's workspace. The RFR-2028GE gives you the structural capacity of a professional rack with a finish that doesn't require a dedicated equipment room to hide it.
