Middle Atlantic 27RU 24IN. Deep - Essex RCS Pre-Configured AV Rack Series - RCS-2724

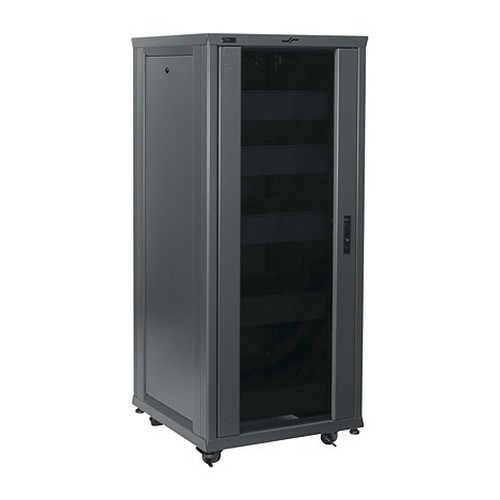

Middle Atlantic RCS-2724 27RU 24-Inch Deep Pre-Configured AV Floor Rack

Overview

The RCS-2724 is a 27RU, 24-inch deep floor-standing rack from Middle Atlantic's Essex RCS Pre-Configured AV Rack series, built for AV integration and security equipment deployments where a factory-ready enclosure eliminates field fabrication time. At 47.25 inches of usable rack height and 20.1 inches of usable depth, this unit accommodates full-depth network switches, NVRs, and AV processors without requiring adapters or depth extensions. The textured metallic gray powder-coat finish and 10-32 rack rail threading are standard across commercial AV and security racks, so existing cage nuts and rail accessories drop straight in. TAA-compliant and manufactured in the USA — relevant for government, education, and federal integrations with domestic-content requirements.

Compatibility

Designed for standard 19-inch rack-mount equipment (EIA-310 compliant panel width). The 10-32 threaded rails accept standard 10-32 cage nuts and rack screws used across Middle Atlantic panels, blanks, and cable management accessories, as well as third-party 1U/2U/4U equipment from virtually any manufacturer. The 20.1-inch usable depth supports full-depth 1U servers, managed PoE network switches, NVRs, and UPS units commonly deployed alongside IP security camera systems. The 1,200 lb UL-rated load capacity handles dense mixed loads — fully populated with drives, power strips, and patch panels — without flex or rail deflection. Pairs naturally with Middle Atlantic's own rack accessories including brush panels, blanks, and vertical cable managers sized for the RCS series form factor.

Installation Notes

Shipping weight is 164 lbs versus a product weight of 139.4 lbs — factor the difference when planning delivery access and lift requirements for finished floors or raised-floor environments. The 23.3-inch overall width requires a minimum 24-inch clear floor path for installation. Built-in airflow is rated at 138 CFM, which supports passive ventilation for moderate heat loads; supplement with active fan panels for high-density thermal loads exceeding rack-integrated dissipation. Not available for international shipment — domestic US deployments only. Confirm ceiling clearance against the 54.37-inch overall height before specifying for low-ceiling telecom rooms or under-stair closets. Review the AV rack selection guide for depth and load planning before finalizing rack count on larger installations.
