Panduit UTPSP1YLY Patch Cord

Overview

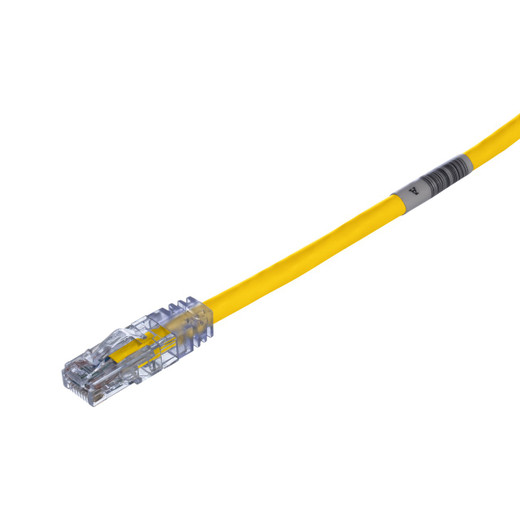

The Panduit UTPSP1YLY is a 1-foot, yellow, Category 6 unshielded twisted pair (UTP) patch cord designed for high-density network deployments. Constructed with 24 AWG stranded copper and high-performance modular plugs, this cable supports Ethernet up to 10GBASE-T over limited distances and various ATM applications. Its tangle-free latch and slender strain relief boot streamline installation and maintenance in tight spaces, while pre-installed RapidID barcodes facilitate easy port mapping with compatible software.

Compatibility

This patch cord is engineered to exceed all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards, ensuring performance for Gigabit Ethernet (1000BASE-T) and supporting 10GBASE-T applications. It is also compatible with IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) Type 3 and Type 4 Power over Ethernet applications, drawing up to the full 100W capacity of 802.3bt Type 4, making it suitable for powering network devices like IP cameras, wireless access points, and VoIP phones.

Installation Notes

The cable features a CM flammability rating, suitable for use in building riser pathways. Its stranded conductor construction provides flexibility for routing in conduits and cable trays. The tangle-free latch on the modular plug ensures secure connection and easy release without snagging, a critical feature in high-density patch panel environments.
