Altronix WAYPOINT5 Concise Descriptor

Overview

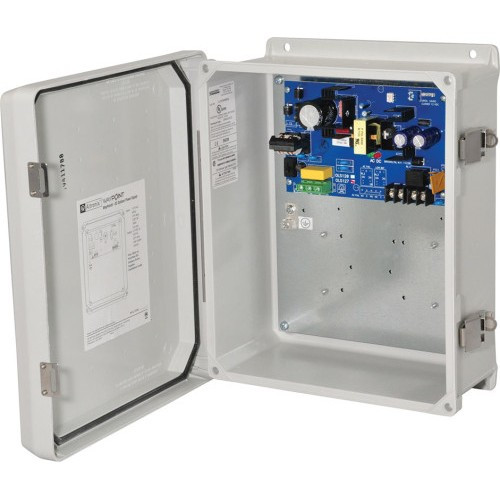

The Altronix WAYPOINT5 is a NEMA 4/4X rated enclosure designed to house and protect power distribution and other sensitive electronics in harsh industrial or outdoor environments. It provides a robust barrier against dust, water, and corrosion, ensuring reliable operation for critical surveillance or automation components. This enclosure is specifically suited for installations where equipment must withstand washdowns or direct exposure to the elements, such as on factory floors, processing plants, or outdoor security camera sites. The WAYPOINT5 model supports 12/24VDC input at 4A, making it suitable for powering multiple devices.

Compatibility

This enclosure is designed to house various Altronix power distribution and management products, including but not limited to the Altronix AL1014UL, AL1024UL, PD4, PD4UL, and other similar form-factor devices that require a NEMA 4/4X rated housing. It is also suitable for other brands' compatible power supplies or network equipment that fit within its internal dimensions and meet environmental protection requirements. Verify internal dimensions against your specific equipment before installation.

Installation Notes

The WAYPOINT5 features a sealed design requiring proper gasket seating for NEMA 4/4X compliance. It includes mounting holes for securing internal equipment and a hinged door with a latch mechanism for access. Ensure all cable entries are sealed using appropriate conduit fittings (not included) to maintain environmental ratings. The enclosure is designed for wall or pole mounting (mounting hardware not included). Maximum input voltage is 12/24VDC at 4A total output capacity.

What's in the Box

• 1x Altronix WAYPOINT5 NEMA 4/4X Enclosure
• 1x Mounting Flange Kit
• 1x Installation Guide
