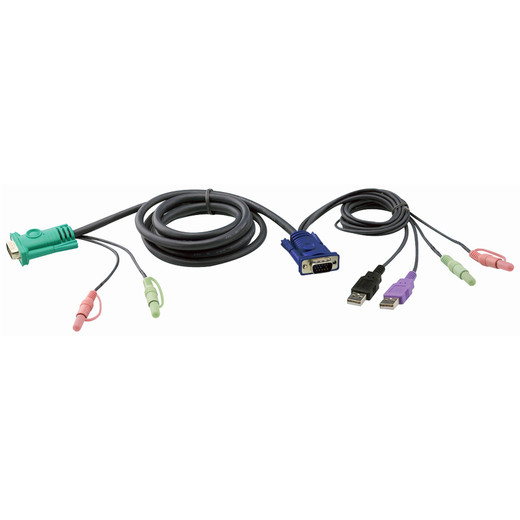

ATEN 2L5303U KVM Cable
Overview
The ATEN 2L5303U is a 3-meter, black KVM cable designed to integrate computer control with full audio capabilities for specific ATEN KVM switch models. This cable consolidates VGA video, USB keyboard/mouse, and both microphone input and speaker output signals into a single connection point, reducing cable clutter and simplifying setup in environments requiring comprehensive peripheral management. Its 3-meter length provides adequate reach for most rack-mounted or desktop deployments where the KVM switch is located near the controlled computers.
Compatibility
This cable is engineered for direct compatibility with ATEN KVM switches including the CE750, CE770, CE774, CE775, CE790, CE800B, CS1732A, CS1732B, CS1734A, CS1734B, CS1754, and CS1758. Ensure your KVM switch model is listed to guarantee proper functionality. The HD-15 VGA, USB A, and dual 3.5mm audio connectors on one end connect to the computer, while the HDB-15 VGA, and dual 3.5mm audio connectors on the other end connect to the KVM switch.
Installation Notes
Both ends of the 2L5303U cable feature male connectors, requiring corresponding female ports on both the computer and the KVM switch. The VGA connection uses an HD-15 connector, while USB is via a standard Type-A plug. Full audio support is provided through two 3.5mm connectors for microphone and speaker pass-through. Ensure connections are secure to maintain signal integrity and prevent audio interference.
