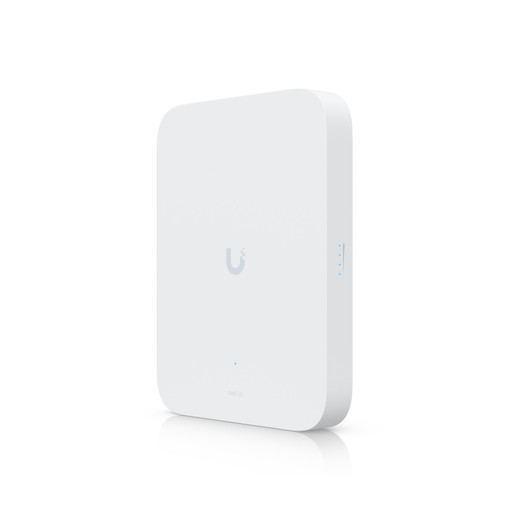

Ubiquiti U5G-MAX-OUTDOOR A full-performance 5G (3.4 Gbps) modem

Ubiquiti U5G-MAX-OUTDOOR 5G Modem

Overview

The Ubiquiti U5G-MAX-OUTDOOR (MPN: U5G-MAX-OUTDOOR) is a full-performance outdoor 5G modem purpose-built for enterprise and carrier-grade deployments. Delivering 3.4 Gbps downlink throughput over 5G NSA networks, this UniFi 5G Access Point bridges broadband infrastructure gaps in remote locations, branch offices, and mission-critical environments where fiber or traditional WAN links are unavailable or cost-prohibitive. The device operates across 5G NSA (3.4 Gbps), 5G SA (1.8 Gbps), and LTE (1.6 Gbps) standards, ensuring backward compatibility and network resilience.

Key Features

The U5G-MAX-OUTDOOR integrates a single 2.5 GbE RJ45 management and data port, eliminating the need for separate control and transport infrastructure. PoE power delivery (14.5W consumption) simplifies installation and reduces auxiliary wiring on pole or wall mounts. The enclosure features an aluminum-alloy frame with UV-stabilized polycarbonate materials rated to IPX6 for water ingress protection, and the device operates reliably from -40°C to +65°C, covering Arctic to tropical deployments. Wind loading performance of 91N at 200 km/h ensures structural integrity in high-wind corridors. A single factory reset button provides out-of-band recovery. The U5G-MAX-OUTDOOR is NDAA compliant and carries FCC, IC, CE, PTCRB, GCF, and carrier certifications (AT&T, T-Mobile, Verizon), qualifying it for regulated and government procurement environments.

Deployment Scenarios

Ideal applications include outdoor tower installations for branch connectivity, emergency response networks, maritime and offshore platforms, and rural broadband extension. The compact form factor (220 × 165 × 66.9 mm, 1.2 kg) and adjustable pole mount (1–2.5" outer diameter) adapt to standard mounting infrastructure without custom fabrication. Multi-unit deployments benefit from centralized Ethernet management, enabling coordinated failover and load balancing across UniFi controller-managed networks.

Network Integration

Managed via standard Ethernet, the U5G-MAX-OUTDOOR integrates seamlessly into UniFi ecosystems alongside switches, PoE injectors, and access points. The 2.5 GbE port accommodates modern switching infrastructure while maintaining backward compatibility with gigabit uplinks. Carrier SIM provisioning and bearer selection (NSA vs. SA) are configured through the UniFi management plane, streamlining multi-site deployments.

Installation Notes

Deploy the Ubiquiti U5G-MAX-OUTDOOR on existing mast or wall structures using the UV-stabilized mounting hardware. PoE injection from network infrastructure eliminates battery backup dependencies. Verify carrier signal availability and SIM registration before production activation. Standard 25–63.5 mm pole diameters accept the integrated mount without adapters.
