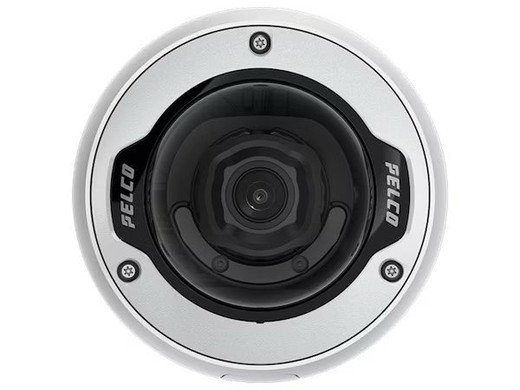

Pelco SRXP4-2V10-IMD 2MP Indoor Dome Camera

Pelco SRXP4-2V10-IMD 2MP Indoor Dome Camera

The Pelco SRXP4-2V10-IMD is a Sarix Professional 4 Series indoor dome network camera delivering 2MP imaging with motorized varifocal lens control and integrated smart analytics. Designed for indoor environments where flexible coverage and reliable event detection matter—such as lobbies, retail floors, corridors, and campus facilities—this camera combines optical flexibility with intelligent bandwidth management to optimize storage without infrastructure overhaul.

Key Features

• 2.0 MP 1/2.8-inch progressive scan CMOS sensor with 16:9 aspect ratio
• 3.4–10.5 mm motorized varifocal lens with remote zoom, focus, and autofocus
• Wide dynamic range: 126 dB with WDR on; 83 dB off
• Multi-stream H.264/H.265 and Motion JPEG with Pelco Smart Compression
• Classified object detection and pixel-based motion detection
• Up to 64 privacy zones for sensitive area masking
• Extreme low-light performance: 0.01 lux (color), 0.005 lux (monochrome) at 33 ms
• Electronic shutter 1/7.5–1/30000 sec for precise exposure control
• PoE Class 3 power via Ethernet; onboard microSD/microSDHC/microSDXC support up to 1.5 TB
• Full ONVIF compliance (Profiles S, T, G, M)
• 5-year warranty

Optical Performance and Coverage

The varifocal 3.4–10.5 mm lens provides horizontal view angles from 101 degrees (wide) to 31 degrees (tele) and vertical angles from 53 degrees to 17 degrees, enabling both broad situational awareness and high-resolution detail capture at critical zones. Remote zoom and autofocus allow post-commissioning adjustment without physical access, reducing installation time and cost. The F1.6 maximum aperture and 3D noise reduction support reliable operation in lower-light indoor spaces.

Intelligent Compression and Storage

Pelco Smart Compression and idle scene mode reduce bandwidth and storage consumption by up to 50% versus standard H.264, extending recording duration or freeing NVR capacity without replacing infrastructure. Multi-stream architecture supports simultaneous H.264, H.265, and Motion JPEG output to different clients or storage tiers. Local microSD recording (V10 Class recommended) provides failover and edge analytics capability.

Advanced Imaging and Detection

Wide dynamic range (126 dB with WDR) ensures usable detail in scenes with bright windows and dark shadows. Classified object detection distinguishes people, vehicles, and other targets, reducing false alarms. Up to 64 privacy zones mask sensitive areas while maintaining perimeter coverage. Day/night mode switching via manual or automatic IR cut filter and electronic shutter maintains image quality across lighting conditions.

Network and Integration

100BASE-TX Ethernet with full IPv4/IPv6 support and multi-protocol compatibility (HTTP, HTTPS, RTSP, RTP, DHCP, DNS, NTP) ensures seamless VMS integration. ONVIF Profile compliance enables vendor-neutral system design. Alarm input/output support and audio I/O (G.711 PCM, Opus) expand event management and communication options.

Applications

Ideal for retail transaction monitoring, office lobbies, campus corridors, light industrial facilities, and secure building access points where intelligent analytics and bandwidth efficiency combine with proven reliability.

Ted Perry

The SRXP4-2V10-IMD balances operational flexibility with cost-conscious bandwidth management. The varifocal lens eliminates the need for multiple fixed-lens SKUs across a facility, while Pelco Smart Compression addresses storage without requiring NVR refresh. Classified object detection is superior to pixel-based motion alone for reducing nuisance alerts.

The 126 dB dynamic range with WDR is competitive for 2MP indoor domes and handles moderate contrast scenes well. Onboard microSD support and USB connectivity support edge-based analytics or local backup. The 5-year warranty and ONVIF multi-profile compliance reduce vendor lock-in risk.

For organizations prioritizing analytics accuracy and bandwidth efficiency over IR range, this is a solid mid-market choice.

Product Documentation

📄 Download Product Datasheet (PDF)
