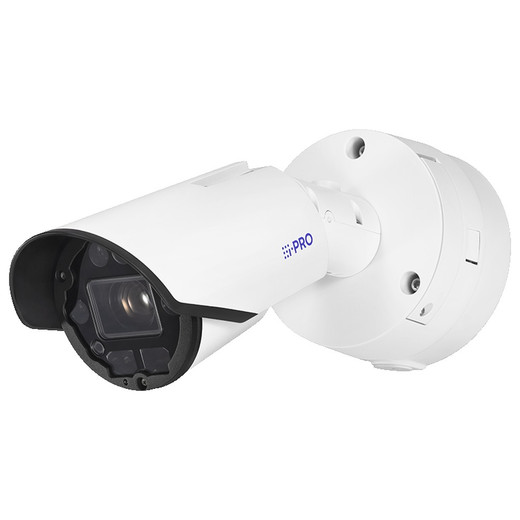

i-PRO WV-X15502-Z1L 5MP Outdoor AI IR LPR Bullet Camera
The i-PRO WV-X15502-Z1L is a purpose-built outdoor license plate recognition (LPR) camera engineered for demanding traffic management, perimeter security, and access control applications. Combining 5MP resolution with 10x optical zoom and up to 180-meter infrared range, this AI-enabled bullet camera delivers precise plate capture and identification in any lighting condition—day or night.
Key Features
- 5MP resolution with 10x optical zoom for distant, high-detail capture
- Advanced infrared LED illumination up to 180 meters (591 feet)
- Embedded Long Pass Filter (LPF) reduces glare and enhances plate contrast
- Nine edge AI analytic applications for real-time intelligent monitoring
- IP66, IP67, and IK10 rated for extreme weather and vandalism resistance
- FIPS 140-2 Level 3 certified secure element (EdgeLock® SE050F)
- PoE powered for simplified network integration
- NDAA compliant for government and enterprise deployment
Technical Highlights
The WV-X15502-Z1L's 5MP sensor combined with motorized 10x zoom ensures license plate text remains legible even at extended distances, critical for traffic enforcement and toll collection. The embedded LPF automatically filters out infrared wavelengths that cause plate reflectivity, delivering sharp, high-contrast imagery regardless of lighting. With infrared coverage extending to 180 meters, the camera maintains clear nighttime performance without requiring supplemental lighting infrastructure.
Edge-based AI processing enables multiple concurrent analytic functions—including LPR, vehicle classification, and intrusion detection—without bandwidth penalties. The EdgeLock® SE050F cryptographic processor ensures all captured data and analytics are encrypted and tamper-proof, meeting FIPS 140-2 Level 3 standards. This makes the camera suitable for law enforcement, border security, and other sensitive high-security applications.
Durability & Compliance
Rated IP66/IP67, the camera withstands heavy rain, dust, and washdown conditions. The IK10 vandalism rating protects against impact damage. NDAA compliance confirms the absence of restricted components, supporting federal and government procurement requirements.
Applications
- Traffic management and enforcement
- Toll plaza and congestion charging
- Airport, port, and border security
- Parking and access control
- Perimeter monitoring and threat detection
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-X15502-Z1L stands out in the LPR segment for its combination of optical zoom, AI processing, and cryptographic security. The 10x motorized lens eliminates the need for fixed-focus, single-purpose cameras, allowing operators to adjust framing post-deployment. The embedded LPF is particularly valuable in high-reflectance environments where standard IR illumination creates washout; this optical element solves that without image post-processing.
For integrators, the nine concurrent AI tasks mean a single camera can serve multiple monitoring objectives—LPR, vehicle counting, and perimeter intrusion—reducing total camera count and PoE infrastructure costs. The EdgeLock® secure element is rarely seen in standard surveillance cameras; its presence indicates i-PRO's commitment to confidentiality-grade deployments where data integrity and tamper evidence matter.
Available in White.
