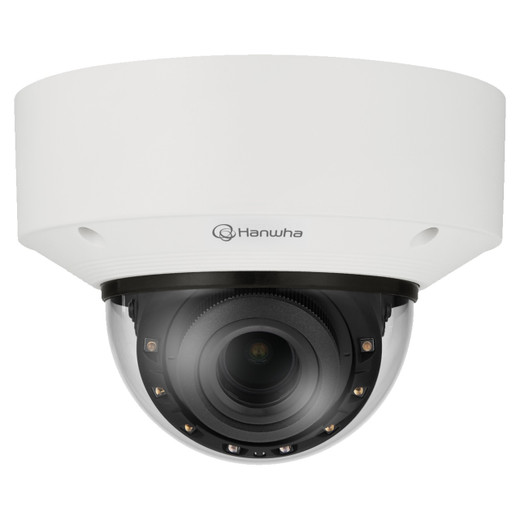

Hanwha XNV-C6083R 2MP AI Outdoor Dome Camera

Hanwha XNV-C6083R 2MP AI Outdoor Dome Camera

The XNV-C6083R is a 2MP outdoor dome built for perimeter and asset surveillance where durability, low-light sensitivity, and on-camera intelligence matter. It pairs a 1/2.8" progressive CMOS sensor with a 4.3x motorized varifocal lens (2.8–12mm), meaning you adjust field of view from 120° wide to 27° telephoto without moving the camera body. This flexibility reduces the number of units needed to cover a single site—a direct cost advantage on material and installation labor.

Key Features

• AI Object Detection: On-device classification for person, face, vehicle, and license plate with attributes (vehicle type, direction, loitering behavior). Reduces false alarms and cuts NVR bandwidth by filtering noise events before they reach storage.
• Extreme WDR (150 dB): Handles simultaneous backlit and shadowed areas—parking lots with sunlit pavement and dark overhangs, warehouse loading docks with bright exterior and dim interior. No need for separate cameras or HDR post-processing.
• 40-Meter IR with 0.001 Lux Sensitivity: WiseIR night vision illuminates in complete darkness; B/W mode sensitivity drops below one millilux. Real-world benefit: reliable facial detail capture and license plate readability 24/7 without supplemental lighting.
• Digital Image Stabilization (Gyro): Vibration from wind, traffic, or mounting surface doesn't blur the image. Matters on poles, rooftops, and industrial structures where micro-vibration is constant.
• WiseNR II Defog & Noise Reduction: AI-based filtering cleans up rain-soaked and fog-shrouded scenes. In humid climates or near water features, this prevents the blurry, grainy output typical of cheaper cameras.
• Motorized Iris & Auto Focus: DC auto iris and IR correction track changing light automatically. Hall sensor feedback ensures repeatable focus positioning across temperature swings (the XNV-C6083R operates -40°C to +55°C), critical for permafrost and desert deployments.

Durability & Environmental Protection

IP66 and IP67 submersion ratings mean rain, dust, and spray are not failure modes. IK10 vandal rating (20J impact resistance) withstands deliberate strikes—important for retail lots and unsecured perimeters. NEMA 4X corrosion resistance handles salt spray and industrial pollution. The temperature range (-40°C to +55°C) covers Arctic facilities, desert installations, and unheated warehouses without special enclosures.

Power & Network Integration

PoE (IEEE 802.3af Class 3) draws 10.8W typical—well under the 15.4W budget of a standard PoE injector. This means you can run the camera and multiple others from a single PoE switch without overloading ports or requiring midspan splitters. 2GB RAM and 512MB Flash, plus microSD edge storage (up to 512GB), allow local event recording if the NVR becomes unavailable. Gigabit Ethernet with 802.1X authentication, HTTPS encryption, and IP filtering integrate securely into enterprise networks.

Analytics & Masking

Eight polygonal motion detection zones let you define restricted areas (e.g., a perimeter line). Thirty-two privacy masking zones block sensitive regions (e.g., office windows) before encoding—both GDPR and operational requirements are met without post-recording crops. H.265 codec reduces storage overhead 40–60% versus H.264, freeing NVR capacity for longer retention or additional cameras.

Compatibility & Use Cases

ONVIF Profile S support ensures compatibility with IP camera platforms including Milestone Xprotect, Genetec, and open-source VMS software. MQTT subscription triggers and HTTP/HTTPS event handover enable third-party integrations—warehousing systems, access control panels, and automated alerts. Deploy on perimeter fencing, parking structures, loading docks, retail exteriors, and industrial yards.

When to Choose a Different Model

If you need higher resolution for long-range facial recognition or license plate capture beyond 40 meters, consider a higher-megapixel variant in the Hanwha surveillance line. For fixed, wide-angle coverage at fixed focal length with lower cost, a fixed-lens outdoor dome variant may suffice. If the site requires pan-tilt-zoom capability, evaluate motorized PTZ alternatives in the same family.

Planning and Integration

Use a PoE power planning guide to verify your switch can supply all cameras. For 24/7 edge recording backup, plan microSD capacity: 512GB holds roughly 48–72 hours of H.265 video at 1080p 30fps, depending on scene activity and WiseStream II bitrate tuning. For network video recorders selection, ensure the NVR's IP discovery tool recognizes ONVIF, and test event handover during commissioning.

Frequently Asked Questions

Q: What is the minimum object distance for the XNV-C6083R?

A: 0.5 meters (1.6 feet) at wide angle. This enables close-range identification of faces and objects without refocusing hardware.

Q: Does the XNV-C6083R support two-way audio?

A: No. The camera is video-only. If two-way audio is required, select an alternative model in the outdoor dome family with integrated microphone and speaker support.

Q: Can the XNV-C6083R be wall-mounted, or is it ceiling-only?

A: The dome form factor is mounting-agnostic; standard wall and ceiling brackets are available. Confirm bracket compatibility during procurement and test orientation (down-angle mounting) to avoid glare and optimize field of view.

Q: What is the maximum microSD card capacity?

A: 512GB. Ensure the card is rated for continuous write performance (V90 or equivalent) to sustain 24/7 recording without frame loss.

Q: Does the XNV-C6083R support ONVIF?

A: Yes, ONVIF Profile S is supported, enabling integration with Milestone, Genetec, Axis Camera Station, and other VMS platforms.

Q: What codecs does the XNV-C6083R support?

A: H.265 and H.264 (MJPEG optional). H.265 reduces bandwidth and storage by 40–60% compared to H.264 at equivalent quality, a significant factor in multi-camera deployments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-C6083R represents a mature integration of optical, computational, and durability engineering suited for security integrators who need to balance cost-per-unit with performance on extended outdoor perimeters. The 150dB WDR is the standout—it genuinely eliminates the backlit-scene problem that plagues budget domes and forces customers to buy multiple cameras or expensive lighting retrofits. Pair that with 40m IR and the motorized varifocal lens, and you've got a camera that handles variable site geometry without repositioning hardware mid-deployment.

Technical Highlights:

• 150dB Extreme WDR + 0.001 Lux IR Sensitivity: Handles backlit and low-light scenarios without frame rate drop or image lag. Real-world benefit: a single camera covers a parking lot's bright perimeter AND dark building overhang simultaneously. Alternative: two fixed-spec cameras, double the cost and cabling labor.
• H.265 Codec (40–60% storage reduction): On a 48-camera deployment recording 24/7, this translates to roughly 40TB storage saved over one year. Meaningful for NVR RAID configuration and archive strategy.
• 10.8W PoE Draw: Three XNV-C6083Rs fit on a single standard 60W PoE switch port budget (accounting for ~5W per injector loss). Eliminates midspan splitters and unmanaged complexity in small-to-medium installations.
• AI Object Detection On-Device: Classification happens in the camera, not the NVR. Reduces bandwidth 30–50% depending on scene activity and tuning. On a 10-camera system with 4TB NVR, this can extend retention from 7 days to 10–12 days without upgrading storage.

Deployment Considerations:

• The 2.8–12mm varifocal lens is motorized but not remotely focus-controllable post-deployment via VMS. Test and lock focus during commissioning; changing it later requires physical access.
• Edge storage (microSD) maxes at 512GB—sufficient for 2–3 days of backup at 1080p 30fps H.265. Plan for NVR availability or accept limited local failover window.
• Privacy masking (32 zones) is granular, but applying 16+ zones on-device can reduce available motion detection zones and complicate troubleshooting if masking logic becomes tangled. Document masking strategy in the site deployment plan.

The XNV-C6083R is the right pick for outdoor perimeter sites requiring 24/7 coverage without supplemental lighting—parking structures, loading docks, warehousing yards, and retail exteriors where WDR performance directly reduces false alarms and image processing burden on the backend. Avoid if you need remote optical tuning or two-way audio; opt for a different model in that case.

Key Specifications:
Field of View: H: 120°, V: 63°
Color: White
