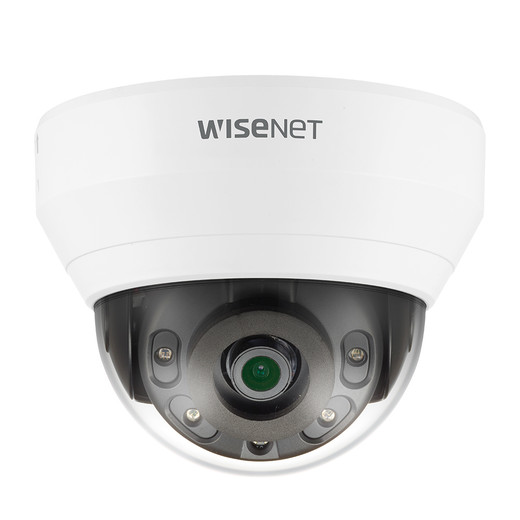

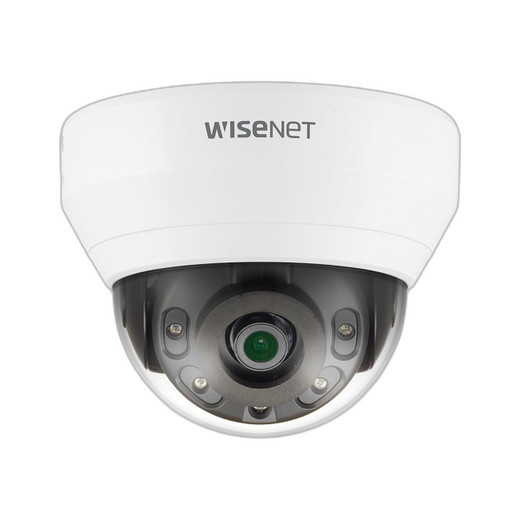

Hanwha QND-7012R 4MP IR Outdoor Dome IP Camera

Hanwha QND-7012R 4MP IR Outdoor Dome Camera

The Hanwha QND-7012R is a professional-grade 4MP infrared outdoor dome camera engineered for reliable 24/7 surveillance in demanding environments. Combining high-resolution imaging, advanced IR night vision, and robust weatherproofing, this camera delivers exceptional security coverage for perimeter monitoring, parking areas, and outdoor facility surveillance.

Key Features

• 4MP resolution (2560x1440) with wide 108° horizontal field of view for expansive coverage
• Infrared LED night vision (850nm) with 20-meter range for complete darkness surveillance
• IP66-rated weatherproof dome construction for outdoor durability across all seasons
• PoE power delivery (IEEE 802.3af Class 3) for simplified installation and reduced cabling
• Advanced video compression: H.265/H.264 and MJPEG with WiseStream II smart codec for optimized bandwidth
• 120dB wide dynamic range (WDR) for balanced exposure in high-contrast outdoor conditions
• Built-in microphone with G.711/G.726 audio compression options
• Edge storage via microSD/SDHC/SDXC (up to 128GB) for local event recording
• Intelligent motion detection with 4 polygonal zones and tampering/defocus alerts
• Auto day/night switching with ICR technology for seamless low-light transitions

Technical Specifications

• Imaging: 1/3" CMOS sensor, F2.0 aperture, 2.8mm fixed focal length
• Frame Rate: Up to 30fps H.265/H.264 at 4MP; 15fps MJPEG
• Minimum Illumination: 0.15 Lux color (F2.0), 0 Lux with IR enabled
• Pan/Tilt/Rotate: 0-350° pan, 0-67° tilt, 0-355° rotation
• Video Output: CVBS composite video for installation verification
• Connectivity: RJ-45 10/100BASE-T Ethernet with IPv4/IPv6, RTSP, HTTP, HTTPS, ONVIF support
• Power Consumption: 6.1W typical (PoE), 5.1W (12VDC)
• Operating Range: -10°C to +55°C; identify subjects at 3.8m, observe at 15m, detect at 37.5m
• Security: 802.1X authentication, digest authentication, HTTPS/SRTP encryption, firmware encryption
• Dimensions: ø110 x 86mm, 255g (compact, low-profile installation)

Advanced Capabilities

The QND-7012R includes sophisticated analytics for proactive security: motion detection across customizable zones, virtual line crossing/direction detection, intrusion alerts, and intelligent handover to PTZ presets. Event triggers enable automated FTP uploads, email notifications, and SD card recording. Support for up to 3 concurrent video profiles and 6 simultaneous unicast streams ensures compatibility with multi-user monitoring environments.

Applications

• Perimeter fencing and boundary monitoring
• Parking lot and outdoor facility surveillance
• Loading dock and cargo area oversight
• Outdoor access points and entryway security
• Campus and property-wide monitoring

James Everett

The QND-7012R excels as a mid-range outdoor surveillance solution for organizations requiring reliable fixed monitoring without pan-tilt complexity. Its 4MP resolution and wide 108° field of view strike an effective balance for area coverage, while the 2.8mm fixed lens eliminates focus drift common in outdoor thermal cycling. The 120dB WDR directly addresses the surveillance industry's most persistent challenge: managing bright skies against dark foreground subjects.

The 20-meter IR range provides practical night vision for typical outdoor perimeters without excessive washout. H.265 compression reduces bandwidth by 50% versus H.264 at equal quality—critical for edge storage and remote monitoring on limited connectivity. The integrated microphone and audio codec support enable correlated audio-visual event logging, enhancing forensic investigation capabilities.

IP66 protection ensures long-term reliability; the plastic housing resists corrosion better than metal in harsh chemical environments (parking garages, coastal facilities). PoE Class 3 operation (max 7.9W) fits standard enterprise switch budgets. Integration via ONVIF and HTTP APIs supports both legacy systems and modern VMS platforms.

For organizations deploying modular outdoor surveillance across large campuses, bulk QND-7012R deployments offer consistent, cost-effective coverage.

Product Documentation

📄 Download Product Datasheet (PDF)
