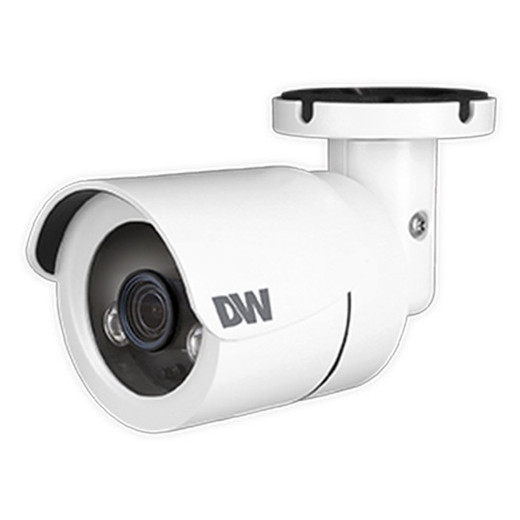

Digital Watchdog DWC-MB75Wi4TW 5MP Star-Light IR Outdoor Weatherproof Bullet IP Camera

Digital Watchdog DWC-MB75Wi4TW 5MP Star-Light IR Bullet Camera

The Digital Watchdog DWC-MB75Wi4TW is a professional-grade 5MP outdoor bullet IP camera designed for comprehensive surveillance in challenging environments. Built with a 5MP 1/2.8" CMOS sensor and advanced Star-Light infrared technology, this camera delivers exceptional image quality and 24/7 monitoring capability regardless of lighting conditions. Its rugged IP67-rated aluminum die-cast housing withstands extreme weather, making it ideal for perimeter security, parking lots, building exteriors, and critical infrastructure protection.

Key Features

• 5-megapixel resolution with 2592 × 1944 total pixels for exceptional clarity
• Star-Light infrared with 100-foot range for reliable night vision in complete darkness
• Extreme low-light performance: 0.0 lux (B/W), 0.16 lux (color)
• IP67 weatherproof rating for outdoor durability in harsh conditions
• Power over Ethernet (PoE) for simplified installation and reduced power consumption
• H.264/H.265 dual-stream video compression with selectable resolution and frame rates
• True Wide Dynamic Range (WDR) at 120dB to handle extreme lighting contrasts
• Smart 3D Digital Noise Reduction (DNR) for cleaner video in low-light scenarios
• Fixed 4.0mm lens with 82.3° horizontal field of view

Advanced Surveillance Features

This camera incorporates professional-grade intelligence capabilities through integrated IVA (Intelligent Video Analytics) licensing options. The base IVA package supports intrusion detection, line crossing, object counting, loitering detection, and tamper alerts. The optional IVA+ license adds logical rules, object removal detection, tailgating, directional tracking, and more—enabling sophisticated security workflows without external processors.

Additional capabilities include 16 programmable privacy masks for sensitive areas, dual-stream architecture for simultaneous recording and live viewing at different resolutions, and support for microSD card storage up to 1TB. Motion detection with configurable thresholds enables efficient event-based recording and alarm triggers.

Network & Compatibility

The DWC-MB75Wi4TW supports H.264, H.265, and MJPEG compression protocols with bitrates from 32Kbps to 20Mbps. It delivers up to 30fps at all supported resolutions and includes dual-stream capability at different rates. Compatible with DW Spectrum® IPVMS, ExacqVision, and Milestone Systems platforms, this camera integrates seamlessly into enterprise surveillance infrastructure.

Standard protocols include RTSP, DDNS, DHCP, HTTP/HTTPS, UPnP, and SNMP. Multi-user authority, 802.1x, and MAC filtering provide enterprise-level security. Web viewing support includes Chrome, Firefox, Safari, Edge, and OS compatibility across Windows, Mac, and Linux.

Environmental Specifications

Operating temperature range from -4°F to 122°F (-20°C to 50°C) and 10-90% humidity tolerance ensure reliable performance year-round. Auto day/night switching, de-fog capability, and adjustable shutter speeds (8 to 1/50000) optimize image quality across varied environmental conditions. Manual and slow shutter modes provide additional exposure flexibility for specialized applications.

Marty Allison

The DWC-MB75Wi4TW represents a balanced solution for cost-conscious security deployments requiring robust outdoor performance. Its 5MP resolution and exceptional low-light sensitivity (0.16 lux color) provide superior detail capture compared to 2MP alternatives, critical for facial recognition and license plate identification at moderate distances. The 100-foot IR range with Smart IR technology effectively covers mid-range perimeter zones without the color wash common in lesser designs.

The true 120dB WDR implementation distinguishes this camera from basic models, enabling reliable performance in mixed-lighting scenarios like parking lot entries or building facades with directional sun exposure. Integration with IVA analytics libraries directly on the camera reduces backend processing load—a significant advantage for bandwidth-constrained or edge-deployed systems.

PoE power delivery eliminates separate 12V infrastructure, reducing installation complexity and cost. The 5-year warranty and die-cast aluminum construction reflect Digital Watchdog's commitment to longevity, though users should verify compatibility with their specific VMS platform before purchase. The microSD slot supports local backup but should not be relied upon as primary storage for critical applications.
