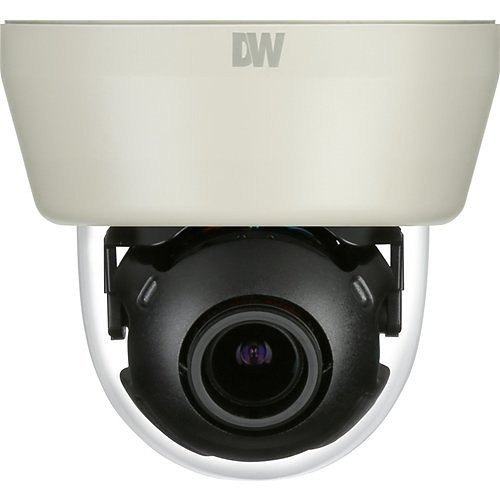

Digital Watchdog DWC-D4283WD 2MP Star-Light IR Indoor Wide Dynamic Range Dome IP Camera

Digital Watchdog DWC-D4283WD 2MP Star-Light IR Dome Camera

The Digital Watchdog DWC-D4283WD is a professional-grade 2MP indoor dome IP camera engineered for comprehensive surveillance in retail, office, and institutional environments. Combining advanced imaging technology with intelligent low-light performance, this camera delivers clear, detailed footage in virtually any indoor lighting condition. With motorized zoom, auto-focus capabilities, and true wide dynamic range processing, the DWC-D4283WD adapts to complex lighting scenarios while maintaining exceptional image quality.

Key Features

• 2MP/1080p resolution with 1944 x 1092 active pixels for detailed imagery
• Star-Light technology with up to 32x sense-up for extreme low-light performance
• True WDR (Wide Dynamic Range) at 100dB for high-contrast environments
• Integrated infrared night vision for round-the-clock monitoring
• 2.8mm–12mm motorized vari-focal lens with auto-focus and P-iris control
• 91° to 28° horizontal field of view for flexible deployment
• Built-in microphone for audio monitoring and alarm output
• 16 programmable privacy masks for sensitive area protection
• Smart DNR™ 3D Digital Noise Reduction for cleaner images in low light
• Auto day/night switching with color and B&W modes
• IP66-rated weatherproof housing (indoor dome)
• PoE power delivery (Class 2) for simplified installation

Technical Highlights

This camera supports multiple video output formats including HD-Analog, HD-CVI, HD-TVI, and Universal HD over Coax® technology, ensuring compatibility with diverse surveillance infrastructure. The 1/3" CMOS sensor operates at 50Hz and 60Hz frequencies with progressive scan capability, delivering 30fps at full resolution. Minimum scene illumination reaches 0.03 lux in color mode, enabling effective surveillance in near-darkness when combined with Star-Light amplification.

Advanced image processing features include auto gain control, backlight compensation (BLC), de-fog capability, dynamic range compression (DRC), and manual sharpness adjustment. The camera supports Pelco C and Pelco D protocols for PTZ control via standard UTP cabling. Shutter speed ranges from 1/30 to 1/30000 seconds with anti-flicker and manual modes, accommodating variable lighting and motion scenarios.

Installation & Operation

Housed in a compact ivory plastic dome enclosure (4.24" H × 3.9" W/D) with Snapit™ housing technology, the DWC-D4283WD integrates seamlessly into ceiling-mounted installations. PoE power eliminates the need for separate power supplies, while optional mounting accessories (sold separately) provide flexible positioning. The camera operates reliably across -40°F to 122°F temperatures with 10–90% humidity tolerance, supporting extended deployment in varied indoor climates.

Applications

Ideal for retail stores, office complexes, educational facilities, hospitality venues, and transportation hubs where variable lighting and WDR performance are critical. The combination of motorized zoom, privacy masking, and multi-format output makes it suitable for both new installations and upgrades to existing analog or hybrid systems.

Eden Phillips

The DWC-D4283WD stands out in the mid-range IP camera segment for its exceptional low-light handling through Star-Light amplification—a significant advantage over standard fixed-gain IR systems. The 100dB true WDR capability is particularly valuable in mixed indoor/outdoor transition zones or high-contrast retail environments with bright displays and dark corners. The motorized 2.8–12mm lens with P-iris automation provides precise exposure control without requiring manual adjustment between zoom positions, reducing operational overhead.

Support for multiple HD-over-Coax standards (CVI, TVI, Analog) makes this camera an excellent choice for retrofitting existing analog infrastructure without requiring complete system replacement. The 16 privacy masks offer institutional-grade protection for sensitive areas like fitting rooms or administrative spaces. Five-year warranty coverage reflects Digital Watchdog's confidence in long-term reliability.

Product Documentation

📄 Download Product Datasheet (PDF)
