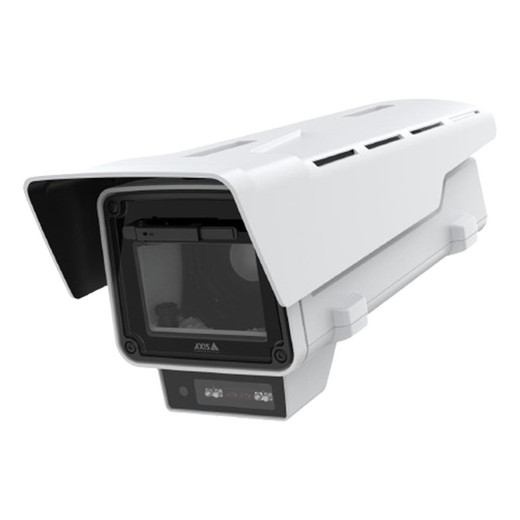

Axis Q1656-BLE 4MP AI IR Outdoor Box IP Camera, 02442-031

Axis Q1656-BLE 4MP AI IR Outdoor Box Camera

The Axis Q1656-BLE delivers professional-grade surveillance for demanding outdoor environments. Built on a 4-megapixel CMOS sensor with integrated infrared illumination, this box camera combines exceptional low-light performance with robust durability ratings, making it ideal for perimeter security, parking facilities, and critical infrastructure monitoring.

Key Features

• 4MP resolution at up to 50/60 fps for detailed, fluid video capture
• Lightfinder 2.0 technology with 0.05 lux minimum illumination for color performance in near-darkness
• Built-in IR illumination with optimized intensity control for extended night vision range
• Forensic WDR (Wide Dynamic Range) for balanced detail in complex lighting scenarios
• H.264 video compression with Zipstream technology to minimize bandwidth and storage requirements
• IP66-rated weatherproof enclosure with IK10 vandal resistance (IK08 front window) for harsh outdoor conditions
• PoE Class 4 power delivery—single cable installation for power and data
• CS-mount lens compatibility for flexible optics selection
• Operating temperature range from -40°C to 60°C for extreme climate resilience
• Built-in audio support for two-way communication and forensic analysis
• Signed Firmware and Secure Boot for enhanced device security

Technical Highlights

The 1/1.8" image sensor delivers 2688×1512 maximum resolution with exceptional clarity across varied conditions. Average power consumption of 11.2W (peak 25.5W) makes this camera efficient for large-scale deployments. The integrated CS-mount accepts a wide range of lens types, from wide-angle to telephoto configurations, enabling customization for specific surveillance zones.

Zipstream codec optimization reduces storage footprint without quality loss, while onboard edge storage capabilities via PoE ensure data integrity even during network interruptions. The combination of Forensic WDR and Lightfinder 2.0 provides reliable forensic-quality imagery across day/night transitions and scenes with mixed lighting.

Applications

Ideal for perimeter security, parking lot surveillance, transportation hubs, industrial facilities, and public spaces requiring durable, high-resolution monitoring. The IP66/IK10 rating and wide temperature tolerance suit installations in coastal, high-humidity, or extreme-temperature environments where standard cameras would fail.

Karl Wilson

The Q1656-BLE represents Axis's commitment to outdoor surveillance at the 4MP tier. The Lightfinder 2.0 engine paired with built-in IR delivers exceptional color retention in low-light scenarios—a critical advantage over traditional IR-only boxes that revert to monochrome. The Forensic WDR engine prevents overexposure in mixed sunlight/shadow scenes common in industrial and transportation settings.

H.264 compression with Zipstream keeps bandwidth modest for organizations managing hundreds of cameras. The PoE Class 4 requirement (25.5W max) means deployment over extended cable runs requires proper PSE infrastructure, but eliminates separate power runs. CS-mount flexibility allows lens swaps without camera replacement, extending asset lifecycle. IP66 + IK10 durability justifies premium positioning against non-hardened alternatives. Best deployed in VMS platforms supporting Axis Camera Station or standard ONVIF integrations for full AI analytics leverage.
