Overview

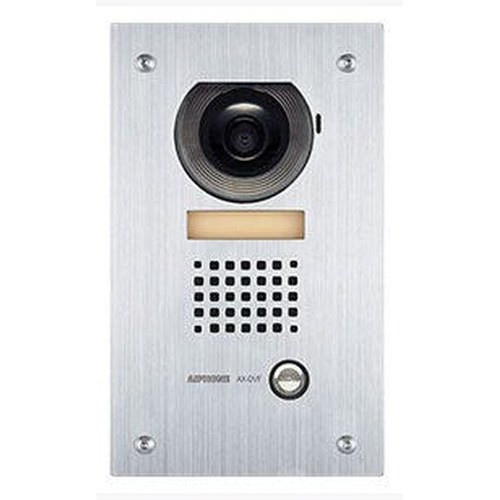

The Aiphone AX-DVF is a flush-mount video door station designed for integration into intercom and access control systems. Built with stainless steel construction and featuring a fixed 1/4" CCD camera, the AX-DVF (often searched as AX DVF) delivers reliable video entry monitoring in a compact, wall-integrated form factor. This device connects via standard Cat-5e cabling to a central exchange unit and operates on PoE+ power delivery, eliminating the need for dedicated low-voltage wiring.

Key Features

• Fixed 1/4" CCD Camera: Delivers clear video with a viewing area of 2'1" vertical × 3'1" horizontal at 20 inches, suitable for entry monitoring and visitor identification.
• IP43 Protection Rating: Rated for splash and dust resistance, protecting the camera lens and housing from environmental exposure in typical entry areas.
• Flush Mount Design: Installs directly into wall cavity with included back box for seamless integration, or surface mount configuration using optional SBX-DVF-P accessory.
• PoE+ Power (802.3at): Single Cat-5e cable provides both data and power, simplifying installation and reducing infrastructure requirements.
• Polycarbonate Lens Cover: Protects the optical path from impact and debris while maintaining clear video transmission.
• LED Illumination: Automatically activates in low-light conditions to ensure video clarity during evening or night-time operation.
• Hands-free Communication: Integrated audio capability for two-way conversation with visitors at the entry point.
• Stainless Steel Housing: Durable construction resists corrosion and blends with modern architectural finishes.
• Extended Wire Distance: Supports Cat-5e runs up to 980 feet to the central exchange unit, accommodating larger facilities.

Integration & Compatibility

The AX-DVF integrates with Aiphone AX Series master stations and control units. Connection to the system requires Cat-5e wiring terminated to an AX Series central exchange (such as the AX-8M Audio Master or AX-8MV Audio/Video Master). The device operates within the AX Series ecosystem, which supports up to 8 master stations and configurable door/sub-station combinations. System expandability is available through the AX-16SW selector, enabling integration of up to 16 door stations in larger installations.

Operating Environment

The AX-DVF operates across a temperature range of 14°F to 140°F (-10°C to 60°C), making it suitable for interior entry areas with climate control. The IP43 rating ensures the device handles typical splash and dust exposure found in office, commercial, or residential entry environments. Installation requires a flush-mount back box or surface-mount bracket, both supplied or available separately.

Eden Phillips

I've evaluated the Aiphone AX-DVF during intercom system deployments across commercial and multi-tenant facilities. This is a straightforward, reliable flush-mount video door station that fits well into existing AX Series infrastructure. The combination of PoE+ power and Cat-5e connectivity simplifies rough-in cabling and eliminates the need for separate power supplies at each entry point.

Technical Highlights:

• Fixed Camera with Adequate Field of View: The 1/4" CCD provides a 2'1" vertical by 3'1" horizontal view at 20 inches, which captures typical visitor positioning at an entry door without requiring pan/tilt mechanisms. This is sufficient for identification and access verification in standard applications.
• IP43 Environmental Rating: Protects against splash and minor dust ingress, making it suitable for covered entry areas but not for direct outdoor exposure. Do not install in fully exposed weather conditions without additional protective enclosure.
• Flush Installation Reduces Visibility: The flush-mount design integrates seamlessly with wall aesthetic and minimizes tampering risk compared to surface-mounted units, an advantage in higher-security installations.

Deployment Considerations:

• Verify Cat-5e cable runs do not exceed 980 feet; longer distances require repeaters or fiber conversion equipment outside the scope of this unit's native support.
• Confirm central exchange unit (AX-8M, AX-8MV, or compatible master) is installed and powered before commissioning the AX-DVF; the door station does not operate independently.
• Install the flush-mount back box during wall construction or retrofit carefully to avoid damaging the polycarbonate lens cover during roughing-in phases.
• LED illumination activates automatically; ensure there is adequate ambient lighting in the entry area or plan for supplemental outdoor lighting if the unit is installed near a dark vestibule.

The AX-DVF is a solid choice for integrators standardizing on Aiphone AX Series intercom systems. It delivers video entry monitoring without unnecessary feature bloat, operates reliably on PoE+ infrastructure, and integrates seamlessly with existing Aiphone master stations and sub-stations. Suitable for small to medium deployments where fixed-camera entry monitoring is sufficient.
