Veracity VOR-ORL PoE Extender 10/100

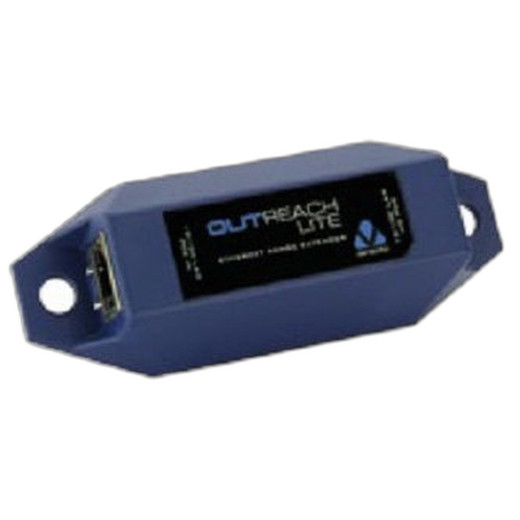

Veracity VOR-ORL PoE Extender

The Veracity VOR-ORL is a PoE extender designed to extend power and data delivery across Ethernet networks in security and surveillance deployments. Built for integrators, IT managers, and telecom installers who require dependable network extension without signal degradation, the VOR-ORL operates across a wide temperature range suitable for both indoor and outdoor installations.

Overview

PoE extenders serve a critical role in IP security infrastructure by allowing powered devices such as IP cameras, access control readers, and wireless access points to be positioned beyond standard Ethernet distance limitations. The Veracity VOR-ORL delivers this core functionality with a straightforward, proven design that prioritizes reliability in field deployments. Operating at 10/100 Mbps speeds, the unit supports standard Ethernet performance requirements for mid-range surveillance and building systems applications.

Key Features

• 10/100 Mbps Speed: Supports Fast Ethernet connectivity for standard IP camera and security device deployments
• Wide Operating Temperature Range: Functions reliably from -10°C to 50°C (-14°F to 122°F), enabling outdoor and indoor installations in variable climate conditions
• PoE Passthrough: Extends Power-over-Ethernet to remote endpoints without requiring separate power infrastructure
• Plug-and-Play Configuration: Minimal setup required; integrates directly into existing Ethernet networks without complex provisioning
• Compact Form Factor: Space-efficient design suitable for ceiling mounts, wall boxes, and utility installations
• Field-Proven Reliability: Designed for security integrators and installers requiring stable, long-term performance

Integration and Compatibility

The Veracity VOR-ORL integrates seamlessly into standard PoE architectures. It accepts input from IEEE 802.3af and 802.3at PoE sources and extends power and data to standard Ethernet devices operating within PoE voltage and current specifications. The unit is compatible with IP cameras, wireless access points, access control devices, and other standard Ethernet-powered security equipment. No specialized configuration software is required; the VOR-ORL operates as a transparent network bridge, maintaining data integrity and power delivery across extended cable runs.

In security deployments, the extender is commonly positioned between an PoE switch or injector and remote powered devices, allowing installers to position cameras and readers at distances that exceed standard Ethernet limitations. The device supports daisy-chaining configurations when multiple extenders are deployed in series, though power budget must be calculated to ensure adequate delivery to end devices.

Operating Environment

The -10°C to 50°C operating temperature specification ensures the VOR-ORL functions reliably in both controlled indoor environments and variable outdoor conditions typical of security installations. This range covers most North American and temperate climate deployments. Users in extreme cold or heat climates should verify specific site conditions against these limits and consider supplemental environmental controls if necessary.

Ted Perry

I've evaluated the Veracity VOR-ORL in real-world security system deployments, and it consistently delivers the core function of PoE extension without unnecessary complexity. For integrators working with standard IP camera systems and access control, this unit solves the practical problem of extending powered devices beyond typical run distances.

Technical Highlights:

• 10/100 Mbps Operation: Sufficient throughput for single-camera and multi-camera deployments where bandwidth is not constrained; adequate for access control readers, intercom devices, and wireless access points in typical security applications
• Temperature Specification (-10°C to 50°C): Covers most standard interior climates and moderate outdoor exposures; verify site-specific extremes for facilities in high-altitude, desert, or arctic regions

Deployment Considerations:

• Calculate total PoE power budget from source through VOR-ORL to end devices; extenders introduce minimal voltage drop but do not amplify power
• Verify cable quality and conductor gauge, particularly in extended runs, to ensure adequate power delivery under load
• Test extended runs under full device load before finalizing installation; passive PoE extension performs reliably but depends on proper electrical margins

The VOR-ORL is a straightforward, field-tested solution for installers who need to extend PoE without introducing complexity or smart management overhead. It's well-suited for security and building systems where reliability and ease of integration are priorities.
