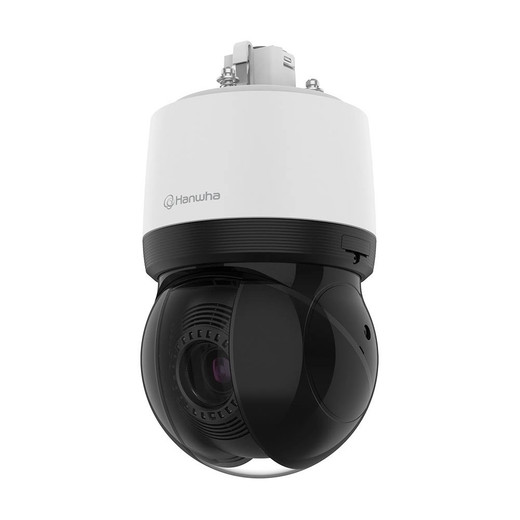

Hanwha XNP-C6403 (2MP) Intelligent AI WDR Outdoor PTZ IP Camera
Hanwha XNP-C6403 (2MP) Intelligent AI WDR Outdoor PTZ IP Camera
Hanwha XNP-C6403 2MP Intelligent AI WDR Outdoor PTZ IP Camera

Overview

SKU: XNP-C6403
UPC: 8801089224613
Condition: New
Availability: Usually ships in 24 hours
Warranty 3-year warranty
Write a Review 40% OFF

Hanwha XNP-C6403 2MP Intelligent AI WDR Outdoor PTZ IP Camera

Hanwha XNP-C6403 2MP Outdoor AI PTZ Camera The Hanwha XNP-C6403 is a professional-grade 2MP outdoor PTZ IP camera engineered for comprehensive survei…

Add to cart for sale price
$3,550.00
$2,136.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Hanwha XNP-C6403 2MP Intelligent AI WDR Outdoor PTZ IP Camera

$3,550.00
$2,136.99
Add to Cart

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price
Optional Add-Ons recommended
Services optional

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: XNP-C6403
UPC: 8801089224613
Condition: New
Availability: Usually ships in 24 hours
Warranty 3-year warranty
Description

Hanwha XNP-C6403 2MP Outdoor AI PTZ Camera

The Hanwha XNP-C6403 is a professional-grade 2MP outdoor PTZ IP camera engineered for comprehensive surveillance of large perimeters. Built on advanced AI technology, this camera combines exceptional optical zoom capabilities with intelligent tracking and robust weather protection, making it ideal for enterprise security deployments requiring long-range monitoring and automated threat detection.

Key Features

  • 40x optical zoom with 32x digital zoom (1280x total magnification) for distant object identification
  • AI-powered auto-tracking for person and vehicle detection with target lock capability
  • 360° endless pan with 110° tilt range and pan speeds up to 700°/sec
  • Extreme WDR (150dB) with intelligent backlight compensation (BLC, HLC, SSDR)
  • IR night vision with 0.005 Lux minimum illumination in B/W mode
  • IP66 and IK10 rated for harsh outdoor environments; NEMA 4X certified
  • PoE+ powered with low 24W typical consumption
  • Lens heater and spin-dry water removal for fog, rain, and snow operation
  • Dual microSD slots supporting up to 1TB edge storage

Technical Specifications

Imaging & Zoom: 1/2.8" CMOS sensor with 1920x1080 native resolution. 4.25–170mm focal length zoom range (F1.6 to F4.95 aperture). Supports oneshot autofocus with focus save and preset accuracy to ±0.1°.

Video Processing: Up to 60fps H.265/H.264 or 30fps MJPEG encoding with WiseStream II/III smart codec optimization. Extreme WDR with AI-based noise reduction (WiseNR II) and digital image stabilization via built-in gyro sensor.

Intelligence: Advanced analytics detect and classify persons, faces, vehicles, and license plates. Virtual line crossing and area detection with 8 configurable motion zones. Analytics-triggered alarms support email, FTP image upload, and SD/NAS recording.

Connectivity & Security: Gigabit Ethernet with IPv4/IPv6 support. ONVIF Profile S/G/T/M compatible with Hanwha Wisenet open platform. Full SSL/TLS encryption, 802.1X network authentication, TPM/HTPM secure boot, and signed firmware protection.

Durability: Operates -40°C to +50°C with 0–100% RH humidity tolerance. IP66 dust/water ingress protection and IK10 vandal resistance. Weight: 3.2kg with aluminum and polycarbonate construction.

Applications

  • Large-scale facility perimeter monitoring (airports, ports, industrial sites)
  • Transportation and traffic enforcement
  • Critical infrastructure protection with long-range identification
  • Automated threat detection in open-space environments
  • Multi-zone surveillance requiring minimal camera count
Karl Wilson
Karl Wilson

The XNP-C6403 excels in scenarios demanding extended range and autonomous object tracking. Its 1280x total zoom (40x optical + 32x digital) enables identification at 234m in tele mode—exceeding typical PTZ capabilities. The extreme 150dB WDR and AI-driven noise reduction maintain clarity across challenging lighting transitions common in outdoor deployments.

Intelligent auto-tracking of persons and vehicles reduces manual control overhead while the gyro-stabilized image ensures smooth panning at high speeds (700°/sec pan, 500°/sec tilt). Edge storage via dual microSD slots with SD card encryption provides autonomous recording during network interruptions. Security features including TPM FIPS 140-2 Level 2 certification, signed firmware, and secure boot address enterprise compliance requirements.

The PoE+ power delivery at only 24W typical consumption is efficient for large installations. Preset capacity (300 locations with ±0.1° accuracy) and advanced patrol sequencing enable complex surveillance programs without system overhead. IP66/IK10 environmental ratings combined with active lens heating and spin-dry ensure year-round operation in moisture-prone zones.

Product Documentation

📄 Download Product Datasheet (PDF)

Expert Analysis
Specifications
Features: AI Auto Tracking
Frame Rate: 60fps
Imaging Device: 1/2.8" CMOS
Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz); MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination: Color: 0.05Lux(F1.6, 1/30sec); BW: 0.005Lux(F1.6, 1/30sec)
Focal Length (Zoom Ratio: 4.25~170mm(40x) zoom (digital 32x, total 1280x zoom)
Max. Aperture Ratio: F1.6(Wide)~F4.95(Tele)
Angular Field of View: H: 65.66°(Wide)~1.88°(Tele) / V: 39.4°(Wide)~1.09°(Tele)
Min. Object Distance: 5m(16.4ft)
Focus Control: Oneshot AF, Focus save
Lens Type: DC auto iris
Pan Range: 360° Endless
Pan Speed: Max. 700°/sec, Manual: 0.024°/sec~250°/sec
Tilt Range: 110°(90°~-20°)
Tilt Speed: Max. 500°/sec, Manual: 0.024°/sec~250°/sec
Sequence: Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy: Up to ±0.1°, Pan/Tilt correction
Camera Title: Displayed up to 85 characters
Direction Indicator: Support
Day & Night: Auto(ICR)
Backlight Compensation: BLC, HLC, WDR, SSDR
Wide Dynamic Range: Extreme WDR(150dB)
Digital Noise Reduction: WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization: Support(built-in gyro sensor)
Defog: Support
Motion Detection: 8ea, 8point polygonal zones
Privacy Masking: 32ea, Quadrangle Support; - Color: Grey/Green/Red/Blue/Black/White; - Mosaic
Gain Control: Off / Max gain / Manual
White Balance: ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec); Prefer shutter control(Based on AI engine)
Video Rotation: Flip&Mirror
Analytics: Classified object type : Person/Face/Vehicle/License plate; Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle); Support DetectionShot; Analytics events based on AI engine; - Object detection, Virtual line(Crossing/Direction), Virtual area(Lo
Alarm Triggers: Analytics, Network disconnect, Alarm input((Via optional I/O box SPM-4210), Time schedule, MQTT subscription
Alarm Events: When alarm trigger occurred; - File upload(image) : e-mail/FTP; - Notification : e-mail; - Recording : SD/SDHC/SDXC or NAS recording at event triggers; - Handover: PTZ preset, send message by HTTP/HTTPS/TCP; - MQTT: publication; * Alarm output / Audi
Water Removal: Support(Spin dry, Lens heater)
Auto Tracking: Support; Object auto tracking(Person/Vehicle); Target lock tracking
Ethernet: Metal shielded RJ-45(10/100BASE-T)
Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec: Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI Engine)
Bitrate Control: H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming: Unicast(20 users) / Multicast (128 user); Multiple streaming(Up to 10 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
Application Programming Interface: ONVIF Profile S/G/T/M; SUNAPI(HTTP API); Wisenet open platform
OS / Firmware Protect: Secure boot, Signed firmware, Firmware encryption
User authentication: Digest Authentication, Prevent brute-force attack
Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication: HTTPS, SRTP, WSS(Web socket secure)
Access Control: Access control based on IP address
Data Protect: Authentication information encryption, ZIP compression encryption
Audit: User Access/System/Event log management
Device ID: Device Certificate(Hanwha Private Root CA)
Secure Storage: TPM(Trusted platform module), HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate: TPM with FIPS 140-2 level 2
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage: Micro SD/SDHC/SDXC 2slot 1TB (512GBx2)
RAM: 4GB RAM, 512MB Flash
Operating Temperature / Humidity: -40°C~+50°C(-40°F ~ +122°F) /; +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7); * Start up should be done at above -30°C; 0~100%RH(Condensing) Humidity control /w AIR sheet
Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH
Certification: IP66, IK10, NEMA4X, NEMA-TS 2(2.2.7, 2.2.8, 2.2.9)
Input Voltage: PoE+(IEEE802.3at, Class4)
Power (Max: Typical 24W, Max 25.5W
Color / Material: Body : White / Aluminum; Head : Black / Polycarbontate; Hard-coated dome
RAL Code: White: RAL9003 / Black: RAL9005
Product Dimensions / Weight: ø158x293.3mm(6.22x11.55") / 3200g(7.05lb)
Hanging Mount (Dome: SBP-156HMW
Ceiling Mount (Assy: SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI
Wall Mount: SBP-156WMW, SBP-390WMW2
Pole Mount: SBP-300PMW2
In-ceiling Mount: SHP-1563FPW, SHP-1563FW
Parapet Mount: SBP-156LMW, SBP-156LMW1, SBP-300LMW
Corner Mount: SBP-156KMW, SBP-300KMW1
Cabinet: SBP-300NBW
Other Compatible Models: SPB-PTZ85W
EMC: FCC 47 CFR 15 Subpart B Class A; ICES-3(A)/NMB-3(A); CE/UKCA; - EN 55032 Class A, EN 50130-4; VCCI CISPR 32 Class A; RCM AS/NZS CISPR 32 Class A; KS C 9832 Class A, KS C 9835
Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1; IEC 62471
Environment Rating: EN IEC 63000; IEC 60529 IP66, IEC 62262 IK10; NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9); NEMA 250 type 4X
Detect (25PPM/ 8PPF: Wide: 59.5m(195.3ft) / Tele: 2340.4m(7678.4ft)
Observe (63PPM/ 19PPF: Wide: 23.8m(78.1ft) / Tele: 936.2m(3071.4ft)
Recognize (125PPM/ 38PPF: Wide: 11.9m(39.1ft) / Tele: 468.1m(1535.7ft)
Identify (250PPM/ 76PPF: Wide: 6.0m(19.5ft) / Tele: 234.0m(767.8ft)
Product Type: Dome
Connectivity: Wired
IP Rating: IP66
Night Vision: IR
Power Type: PoE+
PoE Class: 4
Form Factor: Dome
Vandal Rating: IK10
Compatibility: ONVIF
IR Distance: 5m
Built-in IR: Yes
Day/Night: Yes
Storage Support: microSD
Outdoor Ready: Yes
HTTPS Encryption: Yes
WDR: WDR
