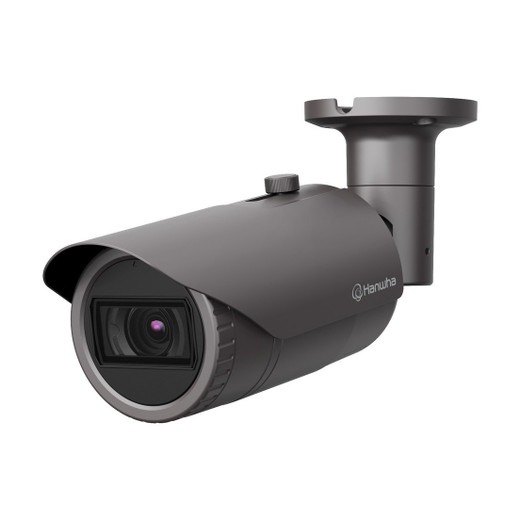

Hanwha QNO-6082R1 2MP Outdoor IR Bullet Camera

Hanwha QNO-6082R1 2MP Outdoor IR Bullet Network IP Camera

The Hanwha QNO-6082R1 is a professional-grade outdoor bullet camera designed for comprehensive surveillance in demanding environments. Featuring 2MP resolution (1920×1080) and a motorized 3.2–10mm varifocal lens with 3.1x zoom capability, this camera delivers exceptional image clarity across wide and telephoto focal lengths. The 120dB Wide Dynamic Range (WDR) combined with advanced backlight compensation (BLC, SSDR) ensures detailed footage in high-contrast scenes, while Day/Night (ICR) auto-switching enables seamless operation across lighting conditions.

Key Features

• 2MP CMOS sensor with 1920×1080 native resolution
• Motorized 3.2–10mm varifocal lens with DC auto iris
• 30fps at H.265/H.264 codec; 15fps MJPEG support
• Infrared illumination with 30m viewable range in complete darkness
• 120dB Wide Dynamic Range for high-contrast environments
• Intelligent motion detection (4 polygonal zones) and tampering alerts
• MicroSD/SDHC/SDXC slot supporting up to 128GB edge storage
• IP66 and IK10 rated for weather and impact resistance
• PoE (IEEE 802.3af Class 3) and 12VDC power options
• Hallway View (90/270° rotation) for unconventional mounting

Technical Specifications

Imaging & Optics: The 1/2.8" 2MP CMOS sensor operates at 0.03 Lux in color (F1.6, 1/30sec) and 0 Lux in B/W with IR enabled. The varifocal lens provides a horizontal field of view ranging from 109° (wide) to 33.2° (tele), ensuring flexible coverage options. Lens Distortion Correction (LDC) and simple focus control enhance image quality for diverse installations.

Advanced Analytics: Built-in analytics include defocus detection, directional detection, motion detection, enter/exit monitoring, and virtual line crossing. The camera supports up to 6 rectangular privacy masking zones and includes alarm I/O (1 input, 1 output) for integration with third-party security systems.

Streaming & Codec Support: Multiple streaming profiles enable simultaneous H.265/H.264 (Main/High) and MJPEG transmission with CBR or VBR bitrate control. WiseStream technology optimizes bandwidth while maintaining image quality. The camera supports unicast (6 simultaneous users) and multicast protocols.

Security & Connectivity: HTTPS/SSL encryption, IP address filtering, digest and login authentication, and 802.1X (EAP-TLS/EAP-LEAP) ensure secure operation. Full IPv4/IPv6 protocol support includes ONVIF Profile S/G/T, RTSP, DHCP, FTP, and SMTP for flexible network integration.

Environmental Durability: Operating temperature range of -30°C to +55°C (-22°F to +131°F) with less than 90% RH ensures reliable performance in harsh climates. IP66 ingress protection and IK10 impact resistance provide robust outdoor durability.

Performance Metrics

The camera achieves forensic-grade performance with detection ranges up to 27.4m (wide) and 128.8m (telephoto) at 25 pixels-per-meter. Recognition performance extends to 25.8m telephoto, supporting proactive investigation workflows. Power consumption of 5.4W (typical PoE) ensures efficient operation with minimal infrastructure demands.

Applications

Ideal for perimeter security, industrial facilities, transportation hubs, and large outdoor areas. The combination of IR capability, WDR, and motorized zoom supports 24/7 monitoring across varying lighting and contrast conditions. Edge storage and intelligent analytics enable autonomous operation with reduced bandwidth and storage requirements.

Jerry Tildsen

The QNO-6082R1 represents a solid mid-range offering in the outdoor bullet segment. The 120dB WDR and 0 Lux IR performance address critical low-light scenarios, while motorized zoom provides operational flexibility without multiple fixed-lens cameras. The 3.1x zoom ratio is modest by modern standards but sufficient for mid-range applications.

Notably, the 30m IR range is competitive for 2MP, though it doesn't exceed category leaders. The native 30fps at H.265 ensures smooth motion capture for vehicle and pedestrian tracking. Security credentials are comprehensive: 802.1X support and SSL/TLS encryption meet enterprise standards.

The microSD slot is valuable for edge recording during network downtime, though 128GB capacity limits extended local retention. Power efficiency (5.4W typical) is excellent for PoE Class 3 operation. One limitation: MJPEG maxes at 15fps, which may be insufficient for motion-intensive applications requiring this lower-latency codec.

Integration with ONVIF Profile S/G/T ensures broad VMS compatibility, though Wisenet platform features remain proprietary. The IP66/IK10 certification and -30°C operating floor make this suitable for true outdoor deployment, though startup requires -20°C minimum. Overall, the QNO-6082R1 delivers balanced performance, robust build quality, and intelligent analytics at a value-oriented price point, making it a practical choice for cost-conscious large-scale deployments and hybrid analog-to-IP transitions.
