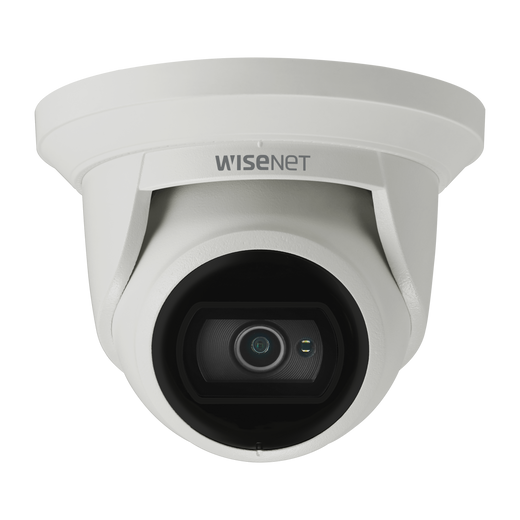

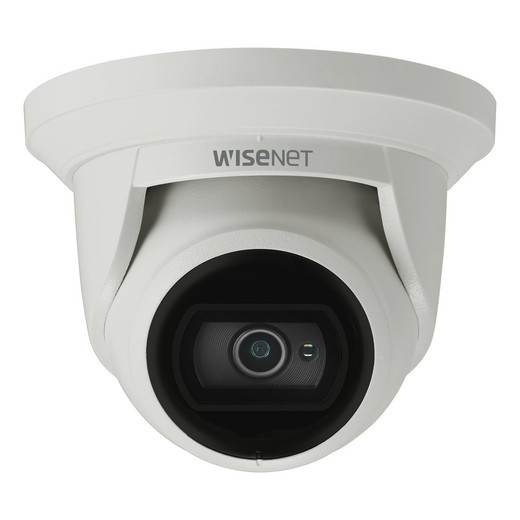

Hanwha ANE-L7012R 4MP Fisheye Outdoor IP Camera

Hanwha ANE-L7012R 4MP Fisheye Outdoor IP Camera

The Hanwha ANE-L7012R is a compact 4MP fisheye network camera engineered for demanding outdoor surveillance applications. Its innovative flateye optical design minimizes IR reflection and prevents condensation buildup, delivering consistently clear imagery in wet, humid, and challenging environmental conditions. With IP67 and IK10 ratings, this camera withstands water ingress, dust, and physical impact, making it ideal for industrial sites, transportation hubs, and exposed outdoor installations.

Key Features

• 4MP resolution (1/2.8" CMOS sensor) with 30fps H.265/H.264 video compression
• Wide 115° diagonal field of view with 3mm fixed focal lens (F1.6 aperture)
• Day/night operation with auto ICR and 20m IR LED range (850nm)
• Extreme durability: IP67 waterproof, IK10 impact-resistant certification
• Advanced WDR (120dB) and SSDR for balanced exposure in high-contrast scenes
• PoE powered (IEEE 802.3af Class 3) with minimal 5.7W typical consumption
• Integrated analytics: motion detection (4 zones), tampering, defocus detection, virtual area/line analytics
• Video rotation support (flip, mirror, hallway view) for flexible mounting

Technical Highlights

The ANE-L7012R delivers exceptional low-light performance with 0.13 Lux minimum illumination in color mode and full black/white operation at 0 Lux with IR enabled. Its dual compression engine supports H.265 and H.264 Main/High profiles plus MJPEG, enabling efficient bandwidth and storage optimization through WiseStream II smart codec technology. The camera features 6 rectangular privacy masking zones and supports up to 6 concurrent unicast users or multicast streaming with 3 separate profiles.

Built-in edge storage supports microSD/SDHC/SDXC cards up to 128GB with encryption, while SD partition encryption and firmware encryption protect sensitive data. Comprehensive alarm triggers include analytics events and network disconnection, with automatic actions such as email/FTP file upload, event-triggered recording, and PTZ handover capabilities.

Network security is enterprise-grade: 802.1X authentication (EAP-TLS, EAP-PEAP), HTTPS/SRTP encrypted communication, brute-force attack prevention, and ONVIF Profile S/G/T compliance ensure seamless integration into diverse surveillance ecosystems. The camera operates across extended temperature ranges (-30°C to +55°C) and includes 16 multilingual interface options.

Ideal Applications

• Industrial facilities and manufacturing plants
• Outdoor parking areas and transportation terminals
• Perimeter security and building entrances
• Municipal and public infrastructure monitoring
• Environments requiring IP67 durability and wide-angle coverage

Jerry Tildsen

The ANE-L7012R excels as a rugged, wide-angle surveillance solution for outdoor installations where environmental durability is non-negotiable. Its flateye design is particularly valuable in humid or wet climates—the condensation resistance and IR reflection minimization deliver superior image quality compared to traditional hemispherical domes in these conditions. The 115° diagonal coverage reduces blind spots while the 3mm lens maintains acceptable object detail at typical surveillance ranges (8.9m identification distance at 125 PPM).

Bandwidth efficiency through WiseStream II and H.265 support makes it suitable for installations with limited network capacity or high-density deployments. Enterprise security features—802.1X auth, encrypted storage, and comprehensive audit logging—ensure compliance with corporate security policies. At 5.7W typical power draw, it's an efficient PoE device ideal for sprawling outdoor sites.

The integrated analytics (virtual line crossing, intrusion detection, defocus alerting) provide actionable intelligence without requiring external video management complexity, though integration with compatible NVR platforms maximizes operational value.
