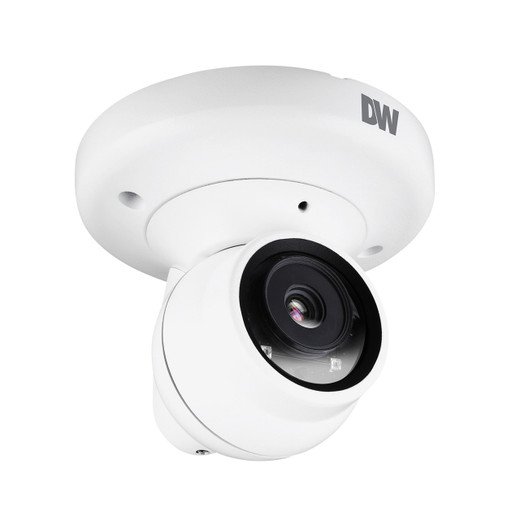

Digital Watchdog DWC-VA853WTIR 5MP Star-Light IR Outdoor Weatherproof High Resolution Turret IP Camera

Digital Watchdog DWC-VA853WTIR 5MP Star-Light IR Turret Camera

The Digital Watchdog DWC-VA853WTIR is a professional-grade 5MP outdoor turret IP camera engineered for demanding surveillance applications. Combining Star-Light low-light technology with a robust weatherproof design, this camera delivers exceptional image clarity in challenging lighting conditions while maintaining reliable performance in harsh outdoor environments.

Key Features

• 5-megapixel resolution with 4K 1/1.8" CMOS sensor (3864 x 2176 active pixels)
• Star-Light technology with up to x32 sense-up for extreme low-light performance
• True WDR (Wide Dynamic Range) at 120dB for balanced exposure in mixed lighting
• Smart IR with 70-foot infrared range for night vision capability
• IP67 weatherproof rating with IK10 vandal-resistant turret housing
• Aluminum die-cast construction rated for -4°F to 122°F operating range
• PoE Class 2 powered with 12VDC backup option
• Auto day/night mode with color at 0.10 lux and B/W at 0.0 lux minimum illumination

Technical Specifications

Imaging Performance: The camera utilizes Smart DNR™ 3D digital noise reduction and auto gain control to maintain image quality across variable lighting conditions. Variable frame rate capability ensures optimal performance for both real-time monitoring and bandwidth-constrained deployments. Progressive scan technology eliminates interlacing artifacts for crisp surveillance footage.

Optics & Coverage: Fixed 2.8mm lens provides a 106.5° horizontal and 59.1° vertical field of view, ideal for general-purpose outdoor monitoring. Smart IR™ adjusts infrared output dynamically to prevent washout on nearby objects while maintaining visibility at extended distances.

Image Enhancement: Programmable features include 24 privacy zones, backlight compensation, de-fog processing, dynamic range control (DRC), and manual/auto shutter modes (1/30 to 1/30000). Mirror and flip capabilities support flexible mounting orientations.

Durability: Compact 4.92" x 4.05" housing weighs only 1.16 lbs. IP67 rating ensures protection against dust and water ingress. Operating humidity range of 10-90% (non-condensing) handles moisture-prone environments. 5-year manufacturer warranty included.

Connectivity: Universal HD over Coax® technology supports CVBS, HD-Analog, HD-CVI, and HD-TVI signal formats for flexible integration with existing analog or hybrid systems. CVBS test output simplifies commissioning and troubleshooting.

Applications

• Perimeter security and facility monitoring
• Parking lot and driveway surveillance
• Warehouse and industrial outdoor areas
• Retail storefronts and building exteriors
• Remote locations requiring extended IR range

Eden Phillips

The DWC-VA853WTIR excels in applications requiring reliable night vision without constant infrared illumination. Star-Light technology provides genuine low-light performance improvement beyond standard IR alone, delivering usable color footage in twilight conditions. The 120dB WDR handles backlit scenes—such as monitored areas lit by street lights or security floods—without overexposure or shadow clipping.

IK10 rating ensures the turret housing survives attempted tampering in high-risk installations. PoE Class 2 compliance simplifies power delivery on extended cable runs without requiring supplementary 12VDC supplies. Ideal for integrators balancing image quality with weatherproofing and vandal resistance in outdoor deployments.

Product Documentation

📄 Download Product Datasheet (PDF)
