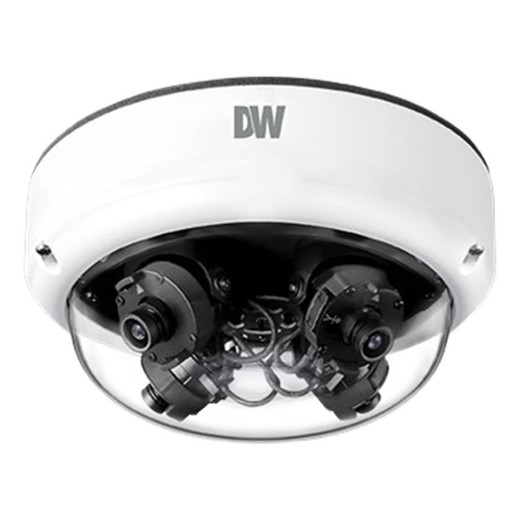

Digital Watchdog DWC-PVX16W2W 16MP AI IR Multi-Sensor Outdoor Dome IP Camera

Digital Watchdog DWC-PVX16W2W 16MP AI IR Multi-Sensor Outdoor Dome IP Camera

The Digital Watchdog DWC-PVX16W2W delivers enterprise-grade surveillance with 16MP resolution across four integrated 1/3" CMOS sensors, each with a 2.8mm fixed lens. This multi-sensor panoramic dome architecture provides 360° panoramic coverage with 90° horizontal field of view per sensor, enabling comprehensive monitoring of large outdoor areas without blind spots. Built on AI-driven analytics and infrared night vision, the DWC-PVX16W2W is engineered for demanding security applications requiring both expansive coverage and exceptional image clarity.

Key Features

• 16MP Multi-Sensor Design: Four 4MP sensors deliver 16MP total resolution with panoramic capability for wide-area coverage
• Advanced Night Vision: IR-enabled with 0.41 lux minimum color illumination and intelligent day/night switching
• True WDR 120dB: Handles extreme lighting conditions with 120dB wide dynamic range for balanced imagery in high-contrast scenes
• Smart DNR™ 3D Noise Reduction: Reduces video noise while preserving detail in low-light and high-compression scenarios
• Weatherproof & Vandal-Resistant: IP66 rating and aluminum die-cast vandal dome housing rated for -4°F to 122°F operation
• AI Capabilities: Intelligent object detection and motion analysis to reduce false alarms and enhance security operations
• Flexible Local Storage: Four Micro SD/SDHC/SDXC card slots supporting up to 1TB total capacity (FAT32)
• Privacy & Security: 16 programmable privacy masks, multi-user authority, 802.1x authentication, HTTPS/TLS encryption, and IP filtering

Technical Highlights

The camera streams at up to 30fps at all resolutions with H.264 and MJPEG compression options, supporting triple-stream at different rates and resolutions up to 10,752 x 1,520 total pixels. Video bitrate ranges from 100Kbps to 10Mbps with CBR/VBR multi-streaming control for adaptive bandwidth management. Connectivity includes 1Gbps Ethernet with comprehensive protocol support: ONVIF, RTSP, HTTP/HTTPS, FTP, DDNS, NTP, SNMPv1/v2/v3, and SMTP for email alerts. The PoE-powered design draws a maximum of 18W, with a high-power injector included. Dual audio channels support G.711 compression (50Hz–10KHz response), while dual alarm I/O enable integration with external sensors and access control systems.

Advanced imaging features include auto day/night mode with selectable color/B&W operation, de-fogging, auto gain control, and shutter speeds ranging from 1/15 to 1/32000 seconds with optional slow shutter modes (x2 to x7.5). Mirror and flip capabilities support flexible mounting orientations.

Video Management Integration

The DWC-PVX16W2W integrates seamlessly with industry-standard platforms including DW Spectrum® IPVMS, Milestone Systems, and ExacqVision Technologies, as well as any ONVIF-compliant VMS. Web-based access via Chrome, Firefox, Edge, or Safari supports Windows, macOS, and Linux environments.

Applications

Ideal for large-area outdoor surveillance including parking facilities, perimeter monitoring, transportation hubs, critical infrastructure, retail campuses, and municipal installations where comprehensive coverage and forensic detail are essential.

James Everett

The DWC-PVX16W2W's quad-sensor panoramic architecture represents a mature approach to wide-area outdoor surveillance. The 90° per-sensor HFOV eliminates perspective distortion inherent in ultra-wide single-lens designs, supporting more accurate object tracking and behavior analytics. The 120dB WDR specification ensures usability in high-contrast outdoor lighting—critical for sunrise/sunset transitions and backlit scenarios.

IR night vision at 0.41 lux provides reliable low-light performance without starlight-level claims. The quad SD card architecture (1TB total) enables extended local retention even at high bitrates, reducing dependency on network bandwidth during congestion. PoE power delivery at 18W is efficient for extended cable runs, and the included high-power injector removes single-point power failures.

ONVIF conformance and multi-VMS support ensure vendor flexibility and future-proof integration. The 5-year warranty (base model) and aluminum construction reflect enterprise-grade durability expectations for 24/7 outdoor deployment.
