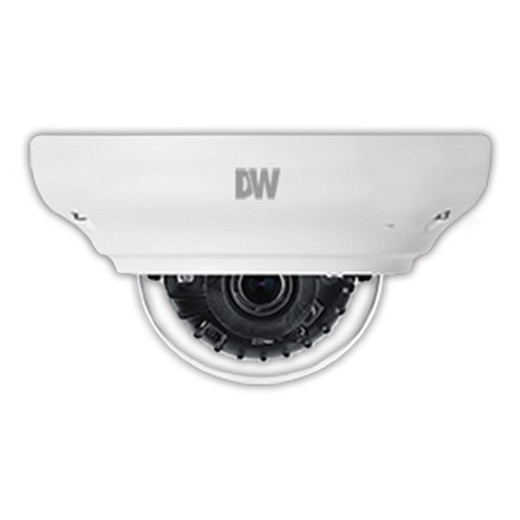

Digital Watchdog DWC-MPV75Wi28TW 5MP IR Outdoor Dome IP Camera

Digital Watchdog DWC-MPV75Wi28TW 5MP IR Dome Camera The Digital Watchdog DWC-MPV75Wi28TW is a professional-grade 5MP infrared outdoor dome camera eng…

Add to cart for sale price
$671.00
$374.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Digital Watchdog DWC-MPV75Wi28TW 5MP IR Outdoor Dome IP Camera

$671.00
$374.99

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: DWC-MPV75Wi28TW
UPC: 812226033133
Condition: New
Availability: Backorder Available — Contact for ETA
Warranty 5-year warranty
Description

Digital Watchdog DWC-MPV75Wi28TW 5MP IR Dome Camera

The Digital Watchdog DWC-MPV75Wi28TW is a professional-grade 5MP infrared outdoor dome camera engineered for demanding surveillance applications. Built on a robust 5MP 1/2.8" CMOS sensor with 2592 × 1944 total pixels, this camera delivers exceptional image clarity and detail capture across diverse outdoor environments. Whether protecting parking facilities, building perimeters, or industrial sites, the DWC-MPV75Wi28TW combines high resolution with intelligent imaging technology to maintain security vigilance 24/7.

Key Features

  • 5MP resolution with 1/2.8" CMOS sensor for crisp, detailed imagery
  • Smart IR™ technology with 80-foot infrared range for superior night vision
  • True WDR 120dB for balanced exposure in high-contrast lighting conditions
  • Smart DNR™ 3D Digital Noise Reduction for clean low-light video
  • IK10-rated vandal dome housing with IP67 weatherproof protection
  • PoE powered for simplified installation and reduced wiring complexity
  • Dual-stream capability with H.264, H.265, and MJPEG compression
  • Up to 30fps at all resolutions for smooth motion capture
  • Interchangeable lens options: 2.8mm, 4.0mm, or 6.0mm focal lengths
  • Integrated motion detection and 16 programmable privacy masks
  • Micro SD/SDHC/SDXC local recording up to 1TB capacity
  • Comprehensive IVA analytics: intrusion, line crossing, loitering, tamper detection, and more

Technical Specifications

Sensor and Optics: The 5MP 1/2.8" CMOS sensor captures images at 2592 × 1944 pixels. Three fixed lens options provide flexibility: 2.8mm (102.4° HFOV), 4.0mm (51.9° HFOV), or 6.0mm (82.3° HFOV) focal lengths, accommodating various deployment scenarios from wide-area coverage to focused monitoring.

Low-Light Performance: Exceptional night vision is achieved through Smart IR™ with an 80-foot illumination range and variable shutter speeds (8 to 1/50000). Minimum scene illumination reaches 0.0 lux in black and white and 0.13 lux in color, ensuring visibility in virtually any lighting condition. Smart DNR™ 3D noise reduction and adjustable slow shutter modes further enhance low-light clarity.

Video Compression and Streaming: Multi-format support includes H.264, H.265, and MJPEG compression with dual-stream capability at different rates and resolutions. Bitrate control ranges from 32Kbps to 20Mbps, enabling bandwidth optimization. The camera streams up to 30fps at all resolutions.

Network and Integration: IPv4 connectivity supports industry-standard protocols including RTSP, HTTP/HTTPS, DHCP, DNS, NTP, and SNMP. Compatible with DW Spectrum® IPVMS, ExacqVision, and Milestone Systems VMS platforms. Security features include 802.1x, TLS encryption, MAC filtering, and multi-user authority.

Durability and Installation: Aluminum die-cast construction with IK10 vandal rating and IP67 weatherproof sealing withstands harsh outdoor environments from -20°C to 50°C (-4°F to 122°F). Low power consumption (6.0W DC12V, 7.2W PoE) and flexible PoE support simplify deployment. Optional mounting accessories are available separately.

Applications

  • Parking lot and perimeter surveillance
  • Industrial facility monitoring
  • Building entrance and exit protection
  • Transportation hubs and access control
  • Retail and commercial property security
Eden Phillips
Eden Phillips

The DWC-MPV75Wi28TW stands out as a versatile mid-range outdoor dome built for integration-focused deployments. The combination of 5MP resolution, robust 120dB WDR, and advanced Smart IR™ addresses the most common outdoor surveillance challenges—backlighting, low-light gaps, and detail preservation. The availability of three fixed focal lengths accommodates both wide-area and targeted monitoring without requiring expensive PTZ mechanisms.

IVA analytics support is comprehensive, covering intrusion, line crossing, loitering, and tamper detection natively, with optional IVA+ licensing for advanced logical rules and object tracking. Dual-streaming with H.265 codec support ensures efficient bandwidth utilization in bandwidth-constrained environments. The 5-year warranty and compact 0.70 lb design further enhance value for facility managers balancing performance with installation simplicity. Best suited for outdoor applications where mid-range resolution, durability, and proven ecosystem integration are priorities.

Specifications
Features: IR
Frame Rate: High
Sensor Type: 5MP 1/2.8" CMOS sensor
Max Resolution: 5MP
Minimum Scene Illumination in color: 0.0 lux (B/W), 0.13 lux (color), 0.16 lux (color)
Test Video Output: Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total Pixels: 2592 (H) × 1944 (V)
Focal Length: 2.8mm, 4.0mm, 6.0mm
Horizontal Field of View (HFOV: 102.4°, 51.9°, 82.3°
IR Distance: 80' range Smart IR™
Lens Type: Fixed Lens
Vertical Field of View (VFOV: 37.6°, 58.8°, 77.4°
IVA license: Intrusion, line crossing, counting line, loitering, enter, exit, tamper
IVA+ license: Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left
3D digital noise reduction: Smart DNR™ 3D Digital Noise Reduction
Auto gain control: Auto
Day and Night: Auto day/night, Day (color), Night (B/W)
De-fog: Yes
Memory slot: Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32
Mirror/flip: Yes
Motion Detection: Yes
Operational Notifications: Alarm output activation, Email, SD card recording
Privacy Zones: 16 programmable privacy masks
Shutter Mode: Auto, Manual, Slow Shutter
Shutter Speed: 8 ~ 1/50000
Slow Shutter Speed: Off, x15, x2, x3, x4, x5, x6, x7.5
White Balance: Yes
Wide Dynamic Range (WDR: True WDR 120dB
Bitrate Control: Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
IP: IPv4
Network resolution: H.264: 2.1MP/1080p, 720p (main), CIF (sub), H.264: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, H.265: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, MJPEG: CIF
Network Web Viewer: Google Chrome® browser, Linux® OS, Mac® OS, Microsoft Edge® browser, Mozilla Firefox® browser, Safari® browser, Windows® OS
Protocol: Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP)
Security: 802.1x, HTTPS (TLS), MAC filtering, Multi-user authority
Stream Speed: Up to 30fps at all resolutions
Streaming Capability: Dual-stream at different rates and resolutions
Video Bitrate: 32Kbps~20Mbps
Video Compression Type: H.264, H.265, MJPEG
Video Management Software: DW Spectrum® IPVMS, ExacqVision Technologies, Milestone Systems
Environmental Operating Humidity: 10-90% (non-condensing)
Environmental Operating Temperature: -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional: Optional. Sold separately
Camera Dimensions (H X W X D: 4.13" x 2.38" (105 x 60.7 mm)
Camera Weight: 0.70 lbs (0.32kg)
Housing: Vandal Dome
Housing Color: White
Vandal Rating: IK10 Rated
IP Rating: IP67
Materials: Aluminum die-casting
American wire gauge (AWG: Cable type #18
Power (Max: DC12V: max 6.0W, 500mA, PoE: max 7.2W
Power Requirements: Adapter not included, PoE
Warranty: 5 Year Warranty
Product Type: Dome
Connectivity: Wired
Power Type: PoE
Resolution: 5MP
Night Vision: IR
