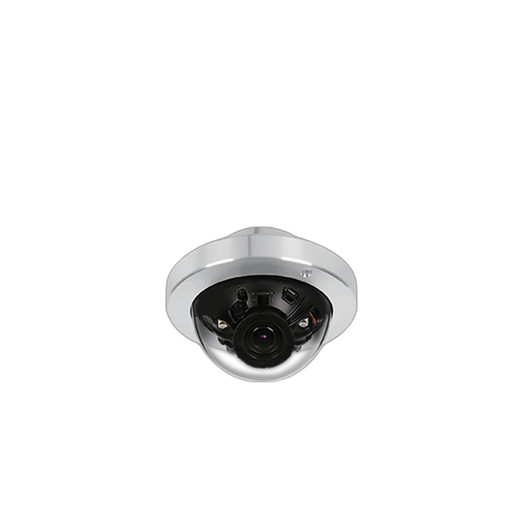

Digital Watchdog DWC-MC553WTIR 5MP Star-Light IR Outdoor Weatherproof Micro Dome IP Camera

Digital Watchdog DWC-MC553WTIR 5MP Star-Light IR Micro Dome Camera

The Digital Watchdog DWC-MC553WTIR is a compact 5MP outdoor micro dome camera engineered for professional surveillance applications requiring exceptional low-light performance and rugged durability. Combining Star-Light technology with a 1/2.8" CMOS sensor, this camera delivers crisp, detailed imagery in challenging lighting conditions while maintaining a compact profile ideal for discreet outdoor deployment.

Key Features

• 5MP resolution with 2608 x 1960 active pixels for detailed image capture
• Star-Light technology with adjustable sense-up (x2–x32) for superior low-light imaging
• Smart IR with 50-foot range for reliable night vision coverage
• Universal HD over Coax technology supporting CVBS, HD-Analog, HD-TVI, and HD-CVI signals
• True WDR 120dB for balanced exposure in mixed lighting environments
• IP66-rated weatherproof housing with IK09 impact resistance
• PoE (Class 2) and 12VDC powered for flexible installation options
• Smart DNR 3D Digital Noise Reduction for cleaner video output
• 24 programmable privacy zones for sensitive area masking
• Auto day/night switching with progressive scan technology
• Compact micro dome form factor at just 3.14" x 2.34"
• Aluminum die-cast housing with ivory finish
• Operating temperature range: -4°F to 122°F (-20°C to 50°C)
• 5-year warranty

Technical Specifications

Sensor & Imaging: The 5MP 1/2.8" CMOS sensor captures progressive scan video with a 4.0mm fixed lens, delivering an 82° horizontal and 60° vertical field of view. Variable frame rates accommodate multiple resolution outputs: 5MP at 20fps, 4MP/1440p at 30fps, 2.1MP/1080p at 30fps, and 720p at 30fps across supported protocols.

Low-Light Performance: Star-Light technology enables exceptional sensitivity with minimum scene illumination of 0.0 lux in black-and-white mode and 0.16 lux in color. The Smart IR system extends coverage to 50 feet with automatic brightness adjustment, while automatic shutter speeds (1/30 to 1/30,000) adapt to dynamic lighting.

Environmental Durability: IP66 rating ensures complete dust protection and water resistance against high-pressure jets. The IK09 impact rating protects against mechanical stress, and the aluminum die-cast construction withstands outdoor temperature extremes from -20°C to 50°C with 10–90% humidity tolerance.

Signal & Connectivity: Universal HD over Coax technology provides backward compatibility with existing coaxial infrastructure while supporting modern HD-TVI, HD-CVI, and analog systems. PoE Class 2 operation minimizes power infrastructure requirements, consuming just 1.98–2.62W depending on configuration.

Applications

Ideal for perimeter monitoring, parking lot surveillance, building entrances, and outdoor facility coverage where compact form factors and low-light performance are essential. The combination of Star-Light technology and WDR ensures reliable identification in varied environmental conditions.

Marty Allison

The DWC-MC553WTIR excels in outdoor environments where traditional cameras struggle with low light. Star-Light technology outperforms standard IR-only approaches by maintaining color detail in twilight conditions while enabling full IR capability in complete darkness. The 120dB WDR handles challenging backlighting scenarios common in perimeter applications.

Universal HD over Coax support makes this camera ideal for integrators modernizing legacy systems without complete infrastructure replacement. The IK09 rating and compact dimensions make it suitable for exposed locations where vandalism resistance and aesthetic discretion matter. PoE Class 2 operation simplifies power provisioning on long cable runs, while the 5-year warranty reflects Digital Watchdog's confidence in outdoor durability.

Product Documentation

📄 Download Product Datasheet (PDF)
