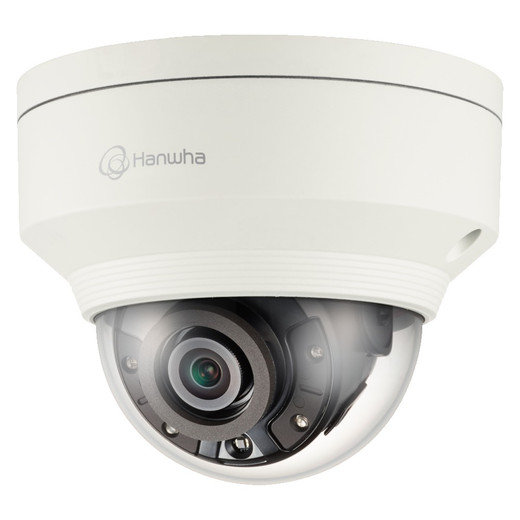

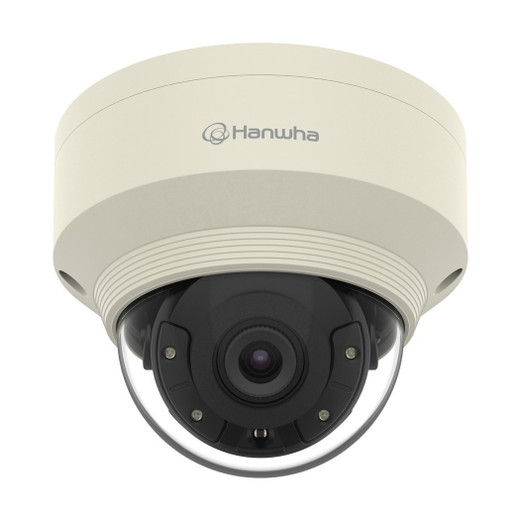

Hanwha XNV-6020R 2MP Vandal-Resistant Dome Camera

Hanwha XNV-6020R 2MP Vandal-Resistant Dome Camera

The Hanwha XNV-6020R is a professional-grade 2MP outdoor dome IP camera engineered for demanding surveillance applications where durability and image quality are non-negotiable. Built with a vandal-resistant IK10-rated dome housing and IP66/IP67 environmental sealing, this camera withstands physical tampering and harsh weather conditions. Its compact aluminum construction (Ø120x97.5mm, 615g) makes it ideal for discrete installation on corporate campuses, retail environments, transportation hubs, and public infrastructure.

Key Features

• 2MP 1/2.8" CMOS sensor with 4mm fixed focal lens and 88.6° horizontal field of view
• 150dB Wide Dynamic Range (WDR) for balanced imaging in high-contrast lighting
• Built-in 30m IR illumination with intelligent day/night auto-switching (ICR)
• Vandal-resistant IK10 dome with IP66/IP67 environmental protection
• Advanced video analytics: motion detection, tampering, face detection, loitering, virtual line crossing, and audio detection
• Efficient H.265/H.264 and MJPEG compression with WiseStream II smart codec
• Dual microSD card slots supporting up to 512GB edge storage
• PoE (IEEE 802.3af Class 3) powered, maximum 9W consumption

Technical Highlights

The XNV-6020R operates at maximum 60fps (H.265/H.264) or 30fps (MJPEG) and achieves exceptional low-light sensitivity of 0.015 Lux in color mode and 0 Lux with IR enabled. Its F1.4 aperture and electronic shutter (2~1/12,000sec) provide precise exposure control across dynamic scenes. The camera supports pan/tilt/rotate controls (0°~354°/0°~67°/0°~355°) and multiple video rotation modes including hallway view and mirror/flip options for flexible deployment.

Image enhancement capabilities include Backlight Compensation (BLC), Highlight LED Compensation (HLC), digital noise reduction (SSNRv), defog, lens distortion correction (LDC), and digital image stabilization. Privacy masking offers 32 polygonal zones with color and mosaic options. Business intelligence features encompass people counting, queue management, and heatmap generation for actionable insights.

Connectivity & Integration

Full ONVIF Profile S/G/T compliance ensures seamless integration with third-party VMS platforms. Dual streaming profiles support up to 20 unicast users plus multicast capability. Comprehensive protocol support includes IPv4/IPv6, TCP/IP, UDP/IP, RTSP, HTTP/HTTPS, SSL/TLS, DHCP, FTP, SMTP, SNMPv1/v2c/v3, and UPnP. Security authentication includes digest login, IP filtering, 802.1X EAP, and HTTPS encryption. Audio in/out support enables two-way communication via microphone or line-level input with configurable G.711/G.726/AAC-LC compression.

Operational Range

Rated for -30°C to +55°C operation and -50°C to +60°C storage, the XNV-6020R delivers reliable performance in extreme climates. It supports both PoE and 12VDC auxiliary power input, offering deployment flexibility in diverse network infrastructures.

Marty Allison

The XNV-6020R represents intelligent value engineering for mid-range outdoor surveillance. The 150dB WDR combined with F1.4 optics and 30m IR range addresses real-world lighting challenges without premium 4K overhead. WiseStream II adaptive bitrate encoding minimizes storage and bandwidth demands—critical for edge-stored or bandwidth-constrained deployments.

The robust analytics suite (tamper detection, directional motion, loitering) provides operational intelligence beyond basic monitoring. IK10 vandalism resistance and IP67 sealing justify specification in public-access zones where fixture abuse is anticipated. PoE efficiency at Class 3 (max 9W) simplifies power infrastructure; dual microSD slots enable continuous local recording with redundancy.

ONVIF compliance mitigates vendor lock-in risk. Best suited for organizations prioritizing durability, analytics depth, and total cost of ownership over maximum resolution.

Product Documentation

📄 Download Product Datasheet (PDF)
