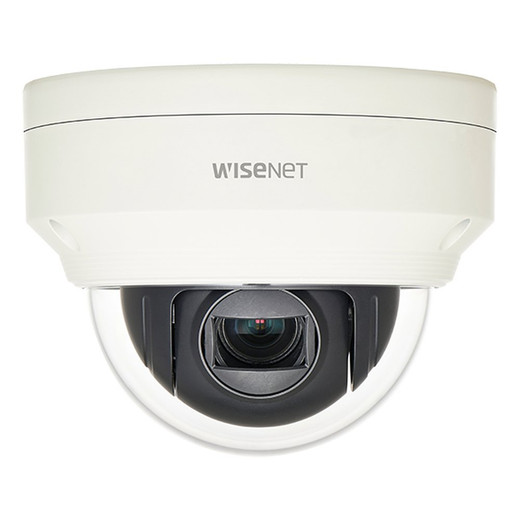

Hanwha XNP-6040H 2MP Outdoor Micro PTZ Dome Camera
Hanwha XNP-6040H 2MP Outdoor Micro PTZ Dome CameraThe Hanwha XNP-6040H is a professional-grade 2MP Micro PTZ dome camera engineered for demanding outd…
Hanwha XNP-6040H 2MP Outdoor Micro PTZ Dome Camera
$1,200.00
$722.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
XNP-6040H
UPC:
8801089104076
Condition:
New
Availability:
Backorder Available — Contact for ETA
Warranty
3-year warranty
Description
Hanwha XNP-6040H 2MP Outdoor Micro PTZ Dome Camera
The Hanwha XNP-6040H is a professional-grade 2MP Micro PTZ dome camera engineered for demanding outdoor surveillance applications. Combining compact design with powerful optical zoom and advanced day/night imaging, this camera delivers comprehensive monitoring capabilities for perimeter security, parking facilities, and large commercial properties. Its robust construction and intelligent feature set make it an ideal choice for organizations requiring flexible, long-range surveillance without compromising on image quality or reliability.
Key Features
- 2MP 1/2.8" CMOS sensor with 1920x1080 native resolution
- 4.3x optical zoom (2.8–12mm) with 32x digital zoom for 137.6x total magnification
- Micro PTZ with 350° pan and 90° tilt range; pan/tilt speeds up to 60°/sec
- Day/night operation with automatic ICR switching and low-light sensitivity to 0.0015 Lux (B/W)
- 150dB Wide Dynamic Range (WDR) for excellent performance in high-contrast scenes
- H.265/H.264 and MJPEG video compression with multiple streaming profiles
- IP66 weather-sealed and IK10 vandal-resistant construction
- PoE power (IEEE 802.3af Class 3) with optional DC12V input
- Auto-tracking, digital image stabilization (gyro sensor), and defog capability
- Comprehensive analytics including face detection, motion detection, and virtual line crossing
Technical Specifications
This camera supports up to 60 fps at 1080p resolution with H.265 encoding, ensuring smooth motion capture and efficient bandwidth utilization. Its F1.4 maximum aperture and advanced autofocus deliver sharp imaging across a wide field of view (119.5° horizontal at wide angle). Built-in 8-zone motion detection, 32-zone privacy masking, and 300 PTZ presets provide granular control over monitoring areas. The camera includes dual SD card slots (up to 512GB per slot) for local edge storage and supports ONVIF Profile S/G/T, making it compatible with most major VMS platforms. Audio capabilities include selectable microphone or line-level input with G.711/G.726 compression. Security features include HTTPS/SSL encryption, IP filtering, 802.1X authentication, and comprehensive user access logging.
Installation & Mounting
The XNP-6040H ships with support for multiple mounting configurations, including hanging dome (SBP-301HM5), ceiling (SBP-300CM), wall (SBP-300WM), pole (SBP-300PM1), and corner mounts (SBP-300KM1). Its compact 136×106mm form factor and lightweight 780g design simplify installation on existing infrastructure.
Performance & Range
Detection ranges scale with zoom position: at wide angle, the camera can detect subjects at 22.4m; at maximum telephoto, detection extends to 154.6m. Recognition distances reach 30.9m at tele zoom, providing excellent capability for identifying faces and objects across expansive outdoor areas.
Karl Wilson
The XNP-6040H represents a mature engineering balance between compactness and PTZ functionality. Its 4.3x optical zoom paired with 32x digital extension delivers practical flexibility for outdoor environments where wide-area overview and targeted close-up monitoring are both required. The 150dB WDR and low-light performance (0.0015 Lux) ensure usable imagery in challenging lighting without relying solely on IR illumination.
H.265 codec support is critical for sites managing bandwidth constraints. The gyro-based image stabilization addresses the common issue of PTZ micro-movements causing visible jitter in recorded video. For security integrators, the ONVIF multi-profile compatibility and extensive preset/sequence functionality (300 presets, 6 groups, tour modes) streamline deployment in heterogeneous VMS environments.
The IP66/IK10 rating is appropriate for outdoor use, though mounting location matters—eaves or overhang protection extends hardware lifespan significantly.
Product Documentation
Specifications
Imaging Device:
1/2.8" CMOS
Resolution:
1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate:
H.265/H.264: Max. 60fps/50fps(60Hz/50Hz); MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination:
Color: 0.015Lux(F1.4, 1/30sec); BW: 0.0015Lux(F1.4, 1/30sec)
Video Out:
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation; USB: Micro USB type B, 1280x720 for installation
Focal Length (Zoom Ratio:
2.8~12mm(4.3x) zoom (digital 32x, total 137.6x zoom)
Max. Aperture Ratio:
F1.4
Angular Field of View:
H: 119.5˚(Wide)~27.9˚(Tele); V: 62.8˚(Wide)~15.7˚(Tele); D: 142.1˚(Wide)~32.0˚(Tele)
Min. Object Distance:
Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)
Focus Control:
Oneshot AF
Lens Type:
DC auto iris
Pan Range:
0˚ ~ 350˚
Pan Speed:
0.1˚/sec ~60˚/sec
Tilt Range:
0˚ ~90˚
Tilt Speed:
0.1˚/sec ~60˚/sec
Sequence:
Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy:
±0.5˚
Camera Title:
Displayed up to 85 characters
Direction Indicator:
Support
Day & Night:
Auto(ICR)
Backlight Compensation:
BLC, HLC, WDR, SSDR
Wide Dynamic Range:
150dB
Digital Noise Reduction:
SSNRⅤ
Digital Image Stabilization:
Support(built-in gyro sensor)
Defog:
Support
Motion Detection:
8ea, 8point polygonal zones
Privacy Masking:
32ea, 4point quadrangle zones; - Color: Grey/Green/Red/Blue/Black/White; - Solid/Mosaic
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed:
Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation:
Flip, Mirror
Analytics:
Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Serial Interface:
RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm Inputs/Outputs:
Input 1ea / Output 1ea
Alarm Triggers:
Analytics, Network disconnect, Alarm input
Alarm Events:
File upload via FTP and e-mail; Notification via e-mail; SD/SDHC/SDXC or NAS recording at event triggers; Alarm output; PTZ Preset
Audio In:
Selectable(mic in/line in); Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out:
Line out, Max.output level: 1Vrms
Auto Tracking:
Support
Ethernet:
RJ-45(10/100BASE-T)
Video Compression:
H.265/H.264: Main/High, MJPEG
Audio Compression:
G.711 u-law /G.726 Selectable; G.726(ADPCM) 8KHz, G.711 8KHz; G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps; AAC-LC: 48Kbps at 16KHz
Smart Codec:
Manual(5ea area), WiseStreamⅡ
Bitrate Control:
H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming:
Unicast(20 users) / Multicast; Multiple streaming(Up to 10 profiles)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205
Security:
HTTPS(SSL) Login Authentication; Digest Login Authentication; IP Address Filtering; User access log; 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface:
ONVIF Profile S/G/T; SUNAPI(HTTP API); Wisenet open platform
Webpage Language:
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage:
Micro SD/SDHC/SDXC 2slot 512GB
RAM:
1GB RAM, 256MB Flash
Operating Temperature / Humidity:
-30°C~+55°C (-22°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity:
-30°C~+60°C (-22°F~+140°F) / Less than 90% RH
Certification:
IP66, IK10
Input Voltage:
DC12V, PoE(IEEE802.3af, Class3)
Power (Max:
DC12V: Max. 8.6W; PoE : Max. 9.6W
Color / Material:
Ivory / Aluminum
Product Dimensions / Weight:
ø136x106mm(5.35x4.17"), 780g(1.72 lb)
Hanging Mount (Dome:
SBP-301HM5
Backbox:
SBV-136B
Ceiling Mount (Assy:
SBP-300CM
Wall Mount:
SBP-300WM1, SBP-300WM
Pole Mount:
SBP-300PM1
In-ceiling Mount:
SHD-3000F3
Parapet Mount:
SBP-300LM
Corner Mount:
SBP-300KM1
Other Compatible Models:
SPB-PTZ71(Smoked Dome Cover)
Detect (25PPM/ 8PPF:
Wide: 22.4m(73.47ft) / Tele: 154.6m(507.18ft)
Observe (63PPM/ 19PPF:
Wide: 9.0m(29.39ft) / Tele: 61.8m(202.87ft)
Recognize (125PPM/ 38PPF:
Wide: 4.5m(14.69ft) / Tele: 30.9m(101.44ft)
Identify (250PPM/ 76PPF:
Wide: 2.2m(7.35ft) / Tele: 15.5m(50.72ft)
Product Type:
PTZ
Connectivity:
Wired
IP Rating:
IP66
Features:
WDR
Night Vision:
IR
Power Type:
PoE
PoE Class:
3
Form Factor:
PTZ
Vandal Rating:
IK10
Compatibility:
ONVIF
IR Distance:
1.5m
Built-in IR:
Yes
Day/Night:
Yes
Storage Support:
microSD
Outdoor Ready:
Yes
HTTPS Encryption:
Yes
WDR:
WDR
Weight Lbs:
1.72
PTZ Range:
0˚ ~ 350˚
