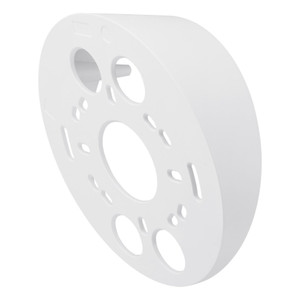

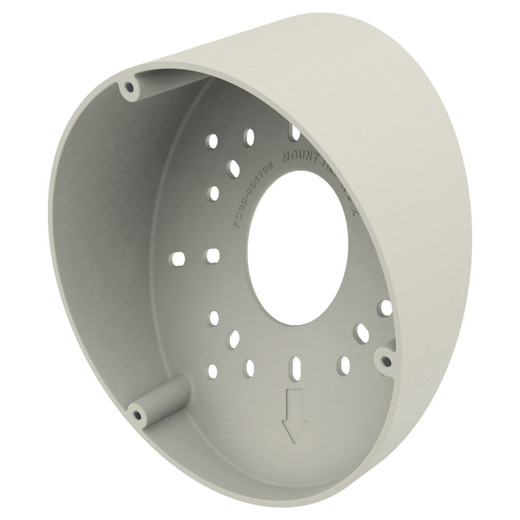

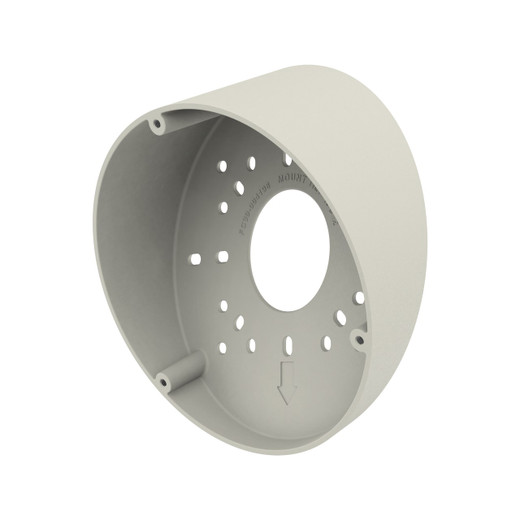

Hanwha SBP-160TM Tilted Wall Mount

Hanwha SBP-160TM Tilted Wall Mount

The Hanwha SBP-160TM is a precision-engineered wall mount designed to optimize camera positioning and field of view for Hanwha dome camera installations. The integrated 23° tilt angle enables flexible camera angles without additional adapters, simplifying deployment and improving coverage accuracy across diverse surveillance environments.

Key Features

• 23° Tilt Angle: Fixed tilt orientation for optimized camera positioning and enhanced field of view coverage
• Aluminum Construction: Lightweight yet durable aluminum frame rated for both indoor and outdoor wall installations
• Compact Design: Dimensions of 5.9" W × 6.1" H × 4.2" D (150 × 155 × 107 mm) for discreet mounting
• Wide Camera Compatibility: Supports 16+ Hanwha camera models including XNV, SNV, and PNV series
• Low Profile: Weighs only 1.57 lbs (0.71 kg) for easy installation on standard drywall and masonry

Technical Specifications

• Form Factor: Wall Mount
• Material: Aluminum
• Color: White
• Tilt Angle: 23°
• Weight: 1.57 lbs / 0.71 kg
• Dimensions: 150 × 155 × 107 mm (W × H × D)

Compatible Cameras

XNV-6080, XNV-6080R, XNV-8080R, PNV-9080R, XNV-L6084, XNV-L6084R, SNV-8081, SNV-8080, SNV-7084, SNV-7084R, SNV-6084, SNV-6084R, SNV-6085R, SNV-5084, SNV-5084R, SCV-6081R. Verify your camera model before purchase.

Applications

Ideal for retail environments, office buildings, parking facilities, and perimeter security where angled wall mounting improves sightlines and reduces blind spots. The tilted design is particularly effective in lobbies, hallways, and corner installations.
