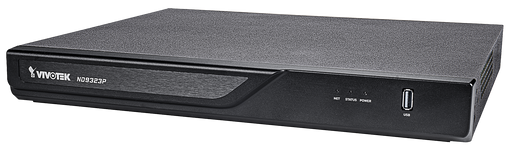

Vivotek ND9323P 8-Channel 2TB NVR with 4x 2MP IR Turret Cameras

Vivotek ND9323P 8-Channel 2TB NVR with 4x 2MP IR Turret Cameras

The Vivotek ND9323P-2TB-4IT60 bundle delivers enterprise-grade surveillance in a compact, ready-to-deploy package. This integrated system combines an 8-channel H.265 NVR with four 2MP infrared turret cameras, designed for small to medium-sized businesses requiring reliable 24/7 monitoring with minimal setup complexity. The pre-installed 2TB storage and PoE+ power architecture eliminate the need for separate power supplies, reducing installation costs and cable management overhead.

Key Features

• H.265 Compression: Advanced video codec reduces storage consumption and bandwidth by up to 50% compared to H.264, extending recording duration on the 2TB drive
• 4K Video Decoding: Supports 3840x2160 resolution playback at 30fps (single channel) or 1920x1080 at 120fps (4-channel simultaneous decode)
• 8-Channel PoE+ NVR: Integrated Gigabit Ethernet with PoE power management eliminates separate power infrastructure for all four cameras
• 2MP IR Turret Cameras: Fixed focal length turret design with infrared illumination for reliable night vision in zero-light environments
• Multi-Layout Display: 8-channel live view with flexible layouts (1x1, 2x2, 3x3, picture-in-picture modes) on dual video outputs (HDMI 4K, VGA)
• Smart Event Management: Motion detection, PIR sensing, tampering alerts, and automated recording triggers with email/snapshot notifications
• Mobile & Cloud Access: iViewer app for iOS/Android plus VIVOCloud for secure remote monitoring from any location
• RAID Support: RAID 0/1 configuration with dual 3.5" HDD slots and S.M.A.R.T. health monitoring

Technical Specifications

• Recording Capability: Continuous, scheduled, manual, and event-triggered modes with pre/post-record buffers (5-10 sec pre-event, 20-300 sec post-event)
• Video Formats: H.265, H.264, MJPEG with hardware decoding acceleration
• Connectivity: 10/100/1000Mbps Ethernet, ONVIF Profile S compliance, IPv4/IPv6, RTSP streaming, DDNS, FTP backup
• I/O Interfaces: 4 alarm inputs, 1 alarm output, audio in/out (3.5mm), USB 3.0 (front), USB 2.0 (rear)
• Advanced Analytics: VCA counting solution, crowd control detection, Trend Micro IoT security integration
• Power: PoE+ powered with automatic restart on power recovery; max 175W consumption
• Operating Conditions: 0–40°C, 0–95% humidity (non-condensing); Embedded Linux OS

Applications

Ideal for retail stores, small offices, warehouses, parking facilities, and branch locations where cost-effective surveillance with professional-grade features is required. The compact 366mm width fits standard rack installations, while the turret camera design suits wall or corner mounting for flexible coverage angles.

Marty Allison

This bundle represents strong value for organizations transitioning from analog or basic IP systems. The H.265 codec efficiency is particularly advantageous for extended retention policies—2TB of storage will accommodate significantly longer recording windows than H.264 at equivalent quality. The 8-channel architecture allows mixed-resolution streaming (up to 88Mbps aggregate network throughput), enabling selective 2K recording on primary scenes while maintaining standard definition on secondary zones.

Hardware-accelerated decoding ensures smooth 4-channel playback without CPU bottlenecks, critical for investigation workflows. RAID redundancy and automated PoE management reduce operational overhead typical of larger deployments. Note that the NVR supports up to 2 additional HDD slots; the 2TB capacity is baseline storage—users requiring extended retention should reference Vivotek's qualified HDD compatibility list for expansion drives.
