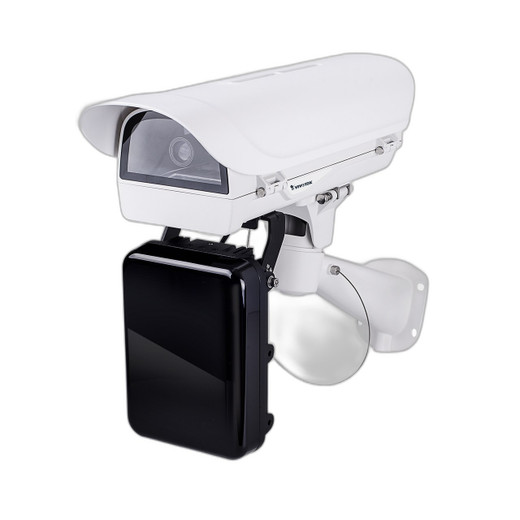

Vivotek IP9165 LPCKIT H1 v2 2MP Outdoor License Plate Capture Kit

Vivotek IP9165 LPCKIT H1 v2 2MP Outdoor License Plate Capture Kit

The Vivotek IP9165 LPCKIT H1 v2 is a purpose-built license plate recognition system engineered for professional traffic monitoring, law enforcement, and access control applications. This complete 2MP outdoor kit delivers high-precision image capture with intelligent illumination, advanced video processing, and robust environmental protection—ensuring reliable plate recognition from day through night operations.

Key Features

• 2MP resolution optimized for license plate detail and readability
• Extended capture range up to 35 meters (recommended 10–20m)
• Dual-lane capability (gantry configuration) or single lane (roadside)
• 48W AI 109 IR illuminator with 10°–30° remote-controlled beam angle
• IP68 weatherproof and IK10 vandal-resistant housing
• H.265 video compression for efficient bandwidth and storage
• Adaptive IR triggering (300–600 lux configurable via RS485)
• Fast shutter speeds: 1/1,000–1/10,000 sec (street mode)
• Remote focus capability with i CS lens
• Support for 3 simultaneous streams and up to 10 live viewing clients

Technical Specifications

• Imaging: 30fps @ 2MP; H.265 compression; anti-overexposure and white balance controls
• Illumination: Embedded IR illuminator; adaptive on/off threshold; 48W peak power
• Operating Range: Optimal 10–20m; maximum 35m; 3.5–4m suggested lane width
• Power: AC 24V or DC 24V input; max 110W consumption; PoE compatible
• Durability: IP68 weatherproof; IK10 vandal-resistant; operating 0°–60°C (optional cold-start heater)
• Connectivity: Gigabit PoE/RJ45; RS485; digital I/O; audio in/out; BNC connector
• Network: IPv4/IPv6; HTTPS/TLS 1.2; DDNS; SNMP; SMTP; FTP/SFTP; comprehensive protocol support

Analytics & Event Management

Five-window motion detection with configurable triggers for motion, audio, digital input, tampering, and cybersecurity events. Real-time notifications via email, FTP/SFTP, NAS, or SD card; automatic recording on event detection.

Applications

• Traffic enforcement and tolling systems
• Parking facility access control
• Border and checkpoint monitoring
• Vehicle tracking and fleet management
• Public safety and law enforcement

James Everett

The IP9165 LPCKIT H1 v2 combines proven 2MP sensor technology with purpose-designed optics and illumination for high-accuracy license plate capture. The 48W AI 109 illuminator with adjustable beam angle (10°–30°) ensures consistent plate visibility across varying distances and vehicle heights—critical for both stationary and gantry-mounted deployments. Adaptive IR thresholding (300–600 lux) minimizes false triggers while extending IR illuminator lifespan.

Shutter control ranging from 1/1,000 to 1/10,000 sec freezes motion blur from vehicles traveling at highway speeds (up to 90 km/hr), preserving alphanumeric character legibility. H.265 compression reduces bandwidth demand by 50% versus H.264, enabling multi-stream simultaneous recording without network saturation. IP68 and IK10 certifications qualify this kit for harsh outdoor environments, road surfaces, and high-vandalism zones.

Integration via RS485, digital I/O, and comprehensive network protocols (SNMP, HTTPS TLS 1.2) makes this system suitable for large-scale traffic management platforms and enterprise access control ecosystems. The remote focus system eliminates field focus drift, while five-window motion detection allows fine-tuned region-of-interest (ROI) triggering to reduce false events and storage overhead.
