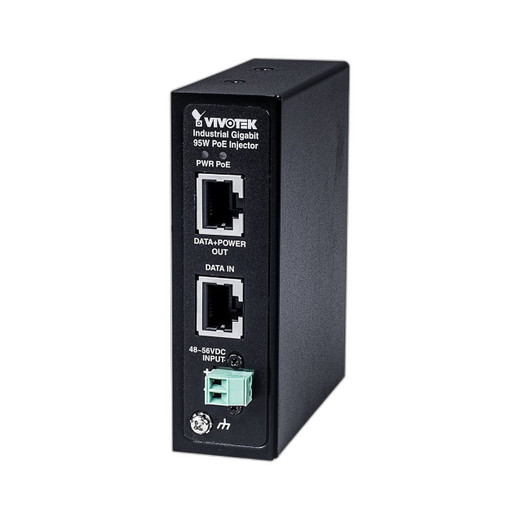

Vivotek AW-IHH-0110 Industrial Gigabit 95W PoE Midspan

Vivotek AW-IHH-0110 Industrial Gigabit 95W PoE Midspan

The Vivotek AW-IHH-0110 is a professional-grade PoE midspan injector engineered for industrial surveillance and networking applications. This compact, DIN-rail mounted device delivers up to 95W of power over a single Gigabit Ethernet connection, enabling deployment of high-power devices in locations where dedicated power infrastructure is unavailable or impractical. Built to withstand harsh environmental conditions, the AW-IHH-0110 is an essential component for extending IP camera networks, powering PTZ cameras, and supporting wireless access points in demanding industrial settings.

Key Features

• 95W High-Power Output – Delivers up to 54VDC at 95W per port, supporting power-hungry PoE devices without performance compromise
• Gigabit Ethernet Connectivity – Dual Gigabit ports (10/100/1000Mbps) ensure fast, reliable data transmission
• Industrial-Grade Construction – Operates reliably from -40°C to 75°C, suitable for outdoor and harsh environments
• Advanced Protection – Integrated surge protection (12KV per port), circuit shorting protection, and over-current protection
• Auto-Detection Technology – Intelligent PoE PD auto-detection minimizes setup complexity and ensures device compatibility
• Compact DIN-Rail Design – Space-efficient form factor (100 x 81.5 x 30mm) simplifies integration into network closets and control cabinets
• Flexible Power Input – Accommodates 48-56VDC for standard 802.3af/at devices and 52-56VDC for full 95W output

Technical Specifications

• Ethernet Standards: IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX), 802.3ab (1000BASE-T), 802.3af/at PoE
• PoE Output: 54VDC/95W maximum per port with PD auto-detection
• Cable Compatibility: Cat. 5e, 6, or 7 for Gigabit operation
• Power Consumption: 100W input
• Environmental Rating: Operating humidity 10-90% non-condensing
• Certifications: CE, FCC, LVD EN62368-1, VCCI
• Warranty: 24 months

Applications

• PTZ and high-resolution IP surveillance cameras in industrial facilities
• Wireless access points and mesh network nodes in remote locations
• Outdoor perimeter security systems requiring extended cable runs
• Network infrastructure extension in factories, warehouses, and outdoor environments
• Emergency backup power distribution for critical surveillance endpoints

Ted Perry

The AW-IHH-0110 addresses a critical gap in industrial PoE deployment: the need for high-power delivery over extended cable distances. Unlike standard PoE injectors limited to 30W, this midspan's 95W capacity supports next-generation PTZ cameras and industrial-grade wireless devices. The 12KV surge protection and circuit shorting defense are particularly valuable in outdoor installations prone to electrical transients.

Dual Gigabit ports provide input/output flexibility, while auto-detection eliminates manual configuration overhead. Temperature range (-40°C to 75°C) and IP67-rated enclosure options make this suitable for uncontrolled environments. For integrators deploying enterprise surveillance across distributed industrial sites, the AW-IHH-0110 represents a cost-effective alternative to retrofitting dedicated power circuits at each endpoint.
