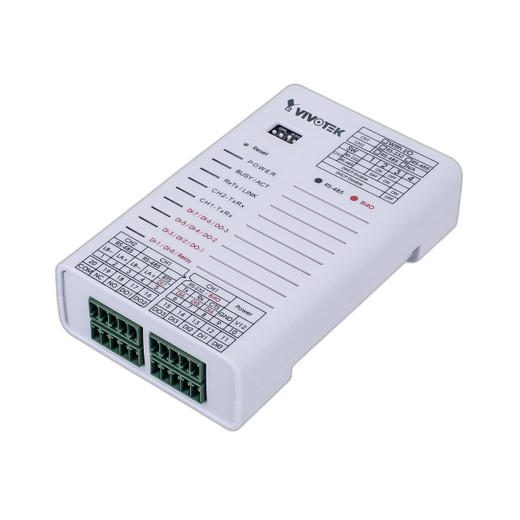

Vivotek AO-20W Ethernet Wiegand Converter
Vivotek AO-20W Ethernet Wiegand ConverterThe Vivotek AO-20W is a robust multi-protocol Ethernet to Wiegand converter designed to bridge modern IP-base…
Vivotek AO-20W Ethernet Wiegand Converter
$584.00
$429.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
AO-20W
Condition:
New
Availability:
Backorder Available — Contact for ETA
Description
Vivotek AO-20W Ethernet Wiegand Converter
The Vivotek AO-20W is a robust multi-protocol Ethernet to Wiegand converter designed to bridge modern IP-based security systems with traditional access control infrastructure. This compact device enables seamless integration between Ethernet networks and Wiegand-based readers, making it an essential component for hybrid security deployments that require compatibility across legacy and contemporary systems.
Key Features
- Dual-port Ethernet to Wiegand conversion with flexible protocol support
- Supports TCP/Server, TCP/Client, and UDP communication modes
- Up to 96-bit Wiegand output capability for advanced access control scenarios
- 8 digital inputs and 4 digital outputs (1 relay + 3 digital) for flexible integration
- Configurable baud rates from 2400 to 115200 bps on both serial ports
- 1K buffer per channel for reliable data handling
- Comprehensive surge protection with bi-directional avalanche breakdown devices
- Built-in watchdog for automatic system error recovery
Technical Specifications
- Network: 10/100 Mbps Base-T Ethernet with RS485 and RS232 auto-detection
- Power: DC 9-24V input, maximum 2W consumption
- Operating temperature: -20°C to 65°C (working); -25°C to 85°C (storage)
- Humidity: 20-90% working; 5-95% storage
- Dimensions: 106.5 x 66.3 x 27.7 mm; Weight: 86g
- Certifications: FCC, CE, RoHS
- Configuration: Web browser-based via 701Server/701Client software
- Compatible with Windows 7/8/10 and Windows Server 2008/2012/2016
Applications
Ideal for access control upgrades, parking management systems, perimeter security installations, and facilities requiring integration between IP networks and Wiegand-based readers. The converter's multi-protocol support makes it suitable for complex security environments where legacy and modern systems must coexist efficiently.
Specifications
Model:
AO-20W
TCP Server:
10/100 Mbps Base T Ethernet RS485; (Auto-detection by order: RS232, RS232+RS485)
Server Port 0:
Baud rate: 2400 bps - 115200 bps; Support TCP/Server, TCP/Client, UDP mode
Server Port 1:
Baud rate: 2400 bps - 115200 bps; Support TCP/Server, TCP/Client, UDP mode
Maximum Wiegand Output:
Up to 96 bits
Power Type:
No
Connectors:
Digital input x 8; Digital output x 4: relay output x1 & digital output x3; (DO1, DO2 = WG data 1, data 0 when using Wiegand protocol)
LED Indicator:
9 LEDs for power, communication
Input Voltage:
DC 9 ~ 24V
Power (Max:
Max. 2W
Dimension:
106.5 (L) x 66.3 (W) x 27.7 (H) mm
Weight:
86 (±5) g
Safety Certifications:
FCC, CE, RoHs
Operating Temperature:
Starting Temperature: -25°C ~ 85°C (14°F ~ 185°F); Working Temperature: -20°C ~ 65°C (-4°F ~ 149°F)
Humidity:
Storage: 5% ~ 95%; Working: 20% ~ 90%
Buffer:
1K each channel
Surge Protection:
Power: 30 Volt, bi-directional avalanche breakdown device; RS485 6.5 Volt, bi-directional avalanche breakdown device; 400W peak power dissipation; Clamping time < 1 picosecond (theoretical)
Fuse Protection:
Power PTC 150mA / RS485 PTC 30mA
Software Setting:
701Server, 701Client HTTP web browser
Operating System:
Windows 7/8/10; Win Server 2008/2012/2016
Watchdogs:
Yes, build in watchdog for system error handling
Product Type:
Accessory
Connectivity:
Wired
