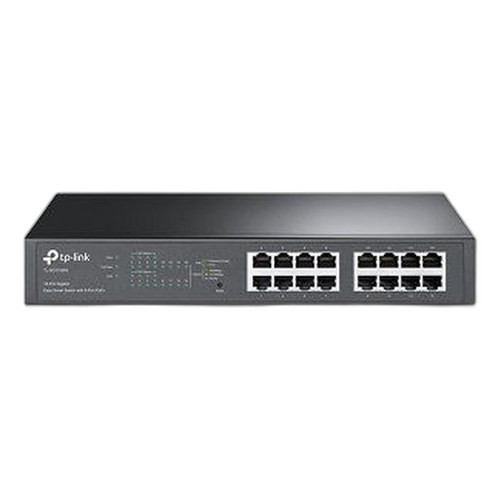

TP-Link TL-SG1016PE 16-Port Gigabit PoE Switch

Overview

The TL-SG1016PE is a 16-port gigabit network switch with 8 dedicated PoE ports and a 120W total power budget. This configuration is built for mixed deployments where surveillance cameras, access control readers, and wireless access points share the same infrastructure but have different power requirements. All 16 ports operate at full 1 Gbps — eliminating bandwidth bottlenecks common in smaller or unmanaged switches. The Easy Smart management layer provides VLAN segmentation and QoS control via web interface or included utility software, enabling per-port configuration without requiring a dedicated management workstation. This is the right fit for integrators provisioning mid-scale surveillance and access control systems where traffic isolation and per-device power limits matter, but enterprise-grade Layer 3 routing is not required.

Compatibility

The TL-SG1016PE accepts any standard 802.3af or 802.3at (PoE+) powered device on its 8 designated PoE ports — IP cameras (domes, turrets, bullets), PTZ units, access control readers, wireless access points, and SIP phones all draw power directly from the switch. Non-PoE devices use the remaining 8 unpowered gigabit ports. The 120W total allocation handles four simultaneous high-power devices (e.g., PTZ cameras drawing 40W each) or eight mid-power devices (standard dome cameras at 15W each). Configuration is port-agnostic — assign PoE power to any of the 8 dedicated ports; assign traffic VLANs and QoS rules to any port via the management interface. Integrators can deploy this switch behind enterprise network infrastructure or as a standalone power/switching node for a remote or branch-office security system.

Installation Notes

The TL-SG1016PE is a desktop or rack-mounted unit (verify physical enclosure dimensions for your deployment space). Connect power to the included power adapter; all 16 network ports are active immediately upon boot. Use the included Easy Smart utility software or web browser to access the management interface — no separate management VLAN or controller is required. Define PoE port limits per device if your powered equipment draws less than the maximum 30W per port — this prevents accidental overcurrent and helps distribute the 120W budget across more devices. For integrations with larger VMS or access control platforms, confirm that your management software supports standard SNMP v2/v3 monitoring if you need centralized switch status reporting.
