Pelco SRXV2-2F3-IMD-IR Sarix Value 2 2MP Indoor Dome IR

Pelco SRXV2-2F3-IMD-IR – Professional Accessory

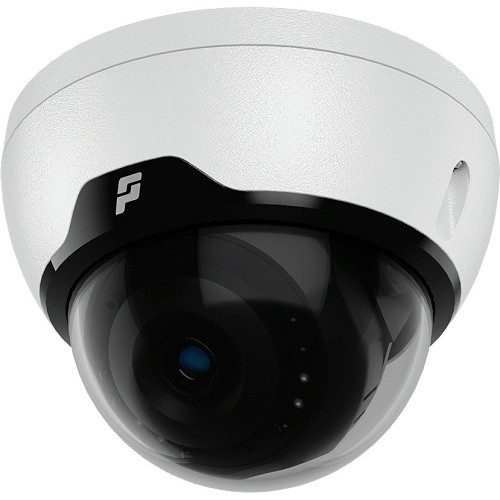

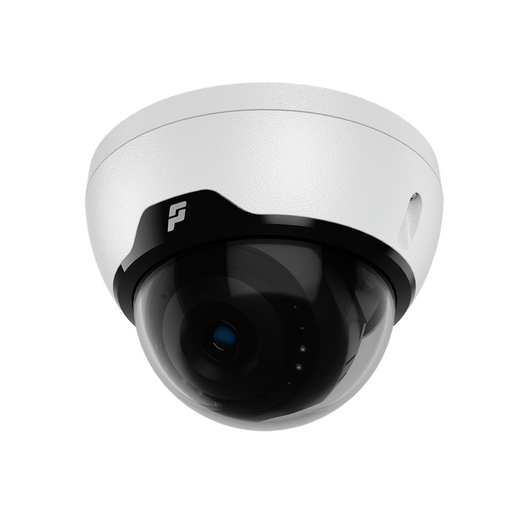

Pelco SRXV2-2F3-IMD-IR is a Sarix Value 2 indoor mini-dome delivering 2 MP (1920×1080) at 30 fps from a 3 mm fixed lens with integrated 850 nm IR illumination. The recessed mini-dome form factor maintains a low-profile, architecturally discreet installation in drop ceilings, hallways, and retail spaces. 120 dB True WDR handles mixed lighting from windows and overhead fixtures. H.265 encoding reduces storage and bandwidth roughly in half compared to H.264-only cameras.

PoE (802.3af) powers the camera over a single Ethernet run. ONVIF Profile S/T compliance ensures integration with VideoXpert and third-party VMS platforms.

The 3 mm lens covers wide-angle scenes in small to mid-size rooms. For outdoor or environmentally exposed locations, use the SRXV2-2F3-EWD-IR instead. Flush-mount in standard drop ceilings or surface-mount with the appropriate Sarix Value wall bracket. NDAA Section 889 compliant.

Key Specifications

• Resolution: 2 MP
• Image Sensor: 1/2.8 inch progressive scan CMOS
• Maximum Resolution: 1920 x 1080
• Video Compression: H.265; H.264; Motion JPEG
• WDR: 120 dB
• Minimum Illumination: 0.02 lux color; 0 lux mono with IR
• ONVIF Compliance: ONVIF Profile S; Profile T
• Ingress Protection: IP42
• Operating Temperature: 0C to +50C

Integration and Compatibility

Engineered for seamless integration with Pelco camera systems, this accessory supports professional installation workflows and enterprise-grade deployment standards. Built to withstand the environmental demands of commercial and industrial surveillance applications. NDAA Section 889 compliant for government and regulated installations.

Warranty and Support

Backed by a 5-year warranty, this product is supported by Pelco's global service network and authorized distributor channels. Enterprise customers benefit from priority technical support and streamlined RMA processes through authorized reseller partners.
