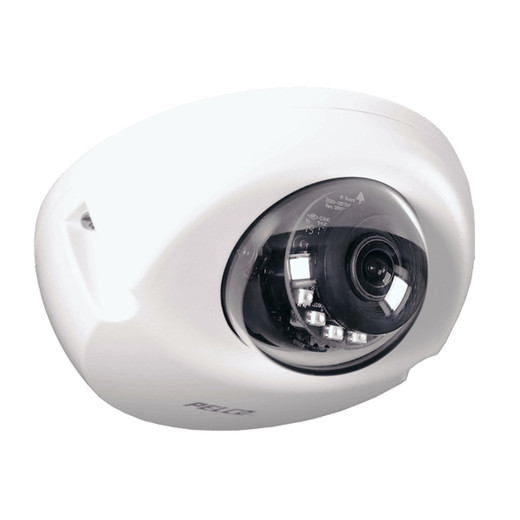

Pelco IWP532-1ERS Sarix Pro 3 5MP Indoor Wedge

Pelco IWP532-1ERS – Professional Accessory

Pelco IWP532-1ERS — a 5 MP indoor wedge camera from the Sarix Pro 3 series. Fixed lens with H.265/H.264 dual-stream encoding. Low-profile wedge form factor mounts flush against walls or ceiling corners for discreet coverage. 5 MP delivers the highest pixel density in the Pro 3 Wedge lineup, supporting wider digital zoom cropping and improved facial detail capture. ONVIF Profile S/T/G/M. NDAA Section 889 compliant.

Wedge form suits stairwells, elevator lobbies, corridors, and retail point-of-sale positions where a traditional dome would be conspicuous. Fixed lens sets the field of view permanently — confirm coverage geometry matches the specification before committing to the mount point. IEEE 802.3af PoE (Class 3). Budget additional NVR bandwidth and storage versus 2 MP or 3 MP wedge variants.

For lower storage impact, the IWP232-1ERS (2 MP) or IWP333-1ERS (3 MP) cover the same form factor at reduced bandwidth. No IR illumination — ambient or supplemental lighting is required for low-light scenes. For varifocal flexibility, step to a Sarix Pro 4 dome instead.

Key Specifications

• Resolution: 5MP
• Lens: Fixed
• Frame Rate: 30 fps
• Video Compression: H.265; H.264
• ONVIF Compliance: ONVIF Profile S; Profile T
• Ingress Protection: IP52 indoor
• Operating Temperature: -10C to +60C
• Power: PoE

Integration and Compatibility

Engineered for seamless integration with Pelco camera systems, this accessory supports professional installation workflows and enterprise-grade deployment standards. Built to withstand the environmental demands of commercial and industrial surveillance applications. NDAA Section 889 compliant for government and regulated installations.

Warranty and Support

Backed by a 5-year warranty, this product is supported by Pelco's global service network and authorized distributor channels. Enterprise customers benefit from priority technical support and streamlined RMA processes through authorized reseller partners.
