Pelco IWP232-1ERS Sarix Pro 3 2MP Indoor Wedge 2.4mm

Pelco IWP232-1ERS – Professional Accessory

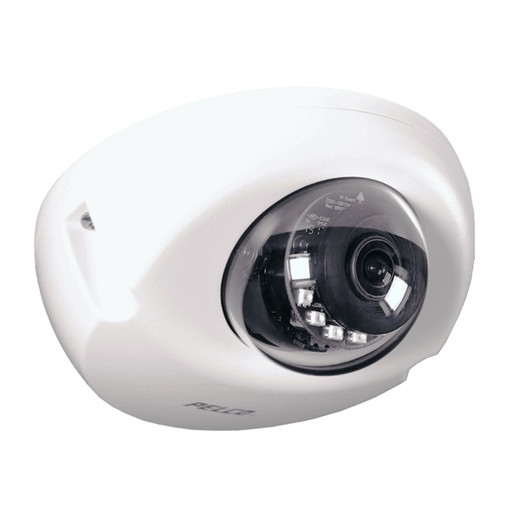

Pelco IWP232-1ERS is a Sarix Pro 3 indoor wedge camera delivering 2 MP (1920×1080) from a fixed 2.4 mm ultra-wide lens with H.265/H.264 dual-stream encoding and ONVIF Profile S/T/G/M compliance. The wedge body mounts at wall corners and junction-box surfaces where dome housings are too large or protrude excessively. Ultra-wide 2.4 mm field of view covers nearly wall-to-wall in elevators, stairwells, and small rooms.

IK10 vandal resistance protects the camera in public-access environments. PoE (802.3af) powers the unit over a single Ethernet run.

The 2.4 mm lens covers the widest coverage in the Sarix Pro 3 wedge lineup. For narrower corridors, the IWP234-1ERS (4 mm) or IWP236-1ERS (6 mm) concentrates pixel density at greater distance. All three share the same housing and mounting interface. NDAA Section 889 compliant.

Key Specifications

• Resolution: 2MP
• Lens: Fixed
• Frame Rate: 30 fps
• Video Compression: H.265; H.264
• ONVIF Compliance: ONVIF Profile S; Profile T
• Ingress Protection: IP52 indoor
• Operating Temperature: -10C to +60C
• Power: PoE

Integration and Compatibility

Engineered for seamless integration with Pelco camera systems, this accessory supports professional installation workflows and enterprise-grade deployment standards. Built to withstand the environmental demands of commercial and industrial surveillance applications. NDAA Section 889 compliant for government and regulated installations.

Warranty and Support

Backed by a 5-year warranty, this product is supported by Pelco's global service network and authorized distributor channels. Enterprise customers benefit from priority technical support and streamlined RMA processes through authorized reseller partners.
