Frame Rate:
30fps
Sensor Type:
Approx. 1/2.8 type CMOS image sensor
Scanning Area:
5.12 mm (H)×3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}
Minimum Illumination (Color:
Color : 0.05 lx (30IRE, F1.3, 1/30s) Color : 0.07 lx (50IRE, F1.3, 1/30s)
Minimum Illumination (B&W:
BW : 0.04 lx (50IRE, F1.3, 1/30s) BW : 0 lx(50IRE, F1.3,1/30s with IR LED)
White Balance:
ATW1/ ATW2/ AWC
Shutter Speed:
[30fps/15fps mode] 1/30 Fix to 1/10000 Fix [25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix
Intelligent Auto:
On / Off
Super Dynamic:
On / Off, The level can be set in the range of 0 to 31.
Dynamic Range:
Max.132 dB (Super Dynamic : On, Level 31)
Adaptive Black Stretch:
The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation:
BLC (Back light compensation) / HLC (High light compensation) / Off (Range : 0 to 31) *only when Super Dynamic/ Intelligent Auto: Off
Fog Compensation:
On / Off (only when Intelligent auto / auto contrast adjust : Off)
Maximum Gain (AGC:
The level can be set in the range of 0 to 11.
Color/BW (ICR:
Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light:
High / Middle / Low / Off, Maximum irradiation distance : 25 m {Approx. 82 ft} (30IRE) 20 m {Approx. 66 ft} (50IRE)
Digital Noise Reduction (DNR:
The level can be set in the range of 0 to 255.
Video Motion Detection (VMD:
On / Off, 4 areas available
Scene Change Detection (SCD:
On / Off, 1 areas available
Audio Detection:
On / Off
AI Sound Classification:
Gunshot, Yell, Vehicle horn, Glass break
AI Analytics:
AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection
Privacy Zone:
On / Off, Up to 8 zones available
VIQS:
On / Off, Up to 8 zones available
Image Rotation:
0° / 90° / 180° / 270°
Camera Title (OSD:
On / Off, Up to 40 characters (alphanumeric characters, marks)
Focus Adjustment:
Auto focus
Optical Zoom:
3.1x (Motorized zoom / Motorized Focus)
Extra zoom:
3.1x - 9.3x (when resolution is 640 x 360)
Focal Length:
2.9 - 9 mm {1/8 inches - 11/32 inches}
Angular Field of View:
[16 : 9 mode] Horizontal : 33° (TELE) – 105° (WIDE), Vertical : 19° (TELE) – 56° (WIDE) [ 4 : 3 mode] Horizontal : 33° (TELE) – 105° (WIDE), Vertical : 25° (TELE) – 76° (WIDE)
Maximum Aperture Ratio:
1 : 1.3 (WIDE) – 1 : 2.5 (TELE)
Focus range:
0.3 m {11-13/16 inches} – ∞
DORI Detect (25ppm / 8ppf:
Wide: 47.1 m /154.7 ft, Tele: 207.4 m / 680.5 ft
DORI Observe (62.5ppm / 19ppf:
Wide: 18.9 m / 61.9 ft, Tele: 83.0 m / 272.2 ft
DORI Recognize (125ppm / 38ppf:
Wide: 9.4 m / 30.9 ft, Tele: 41.5 m / 136.1 ft
DORI Identify (250ppm / 76ppf:
Wide: 4.7 m / 15.5 ft, Tele: 20.7 m / 68.1 ft
System on Chip (SoC:
Ambarella CV22
Adjusting Angle:
Horizontal : -240 to +120°, Vertical : -30 to +85°, Yaw : ±100°
Camera Control:
Brightness, AUX On / Off
Audio Support:
Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / Hig
GUI / Setup Menu Language:
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network IF:
10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) 16:9:
[16:9 mode (30 fps mode)][16:9 mode (25 fps mode)] 3072x1728/2560x1440/1920x1080/1280x720/640x360/320x180
Resolution H.265/ H.264/ JPEG (MJPEG) 4:3:
[4:3 mode (30 fps mode)][4:3 mode (25 fps mode)] 3072x2304/2560x1920/1280x960/800x600/VGA/400x300/320x240
JPEG:
[Image Quality] 10 steps
Smart Coding:
GOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control)
Audio Compression:
G.726 (ADPCM) : 16 kbps / 32 kbps , G.711 : 64 kbps , AAC-LC : 64 kbps / 96 kbps / 128 kbps
Audio Transmission Mode:
Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Supported Protocol (IPv6:
TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP
Supported Protocol (IPv4:
TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, MQTT, LLDP
No. of Simultaneous Users:
Up to 14 users (Depends on network conditions)
Secure:
FIPS 140-2 level 3 Certified Secure Element (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed
Secure (Continued:
User authentication, Host authentication, HTTPS, 802.1X Support, Data encryption
SDXC/SDHC/SD Memory Card:
microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB
Mobile Terminal Compatibility:
iPad, iPhone, AndroidTM terminals
ONVIF® Profile:
G / M / S / T
Alarm Source:
3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions:
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
Safety:
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC:
FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
Power Source and Power Consumption:
DC power supply : DC12 V 1.0 A, Approx. 12.0 W PoE (IEEE802.3af compliant) Device : DC48 V 240 mA, Approx. 11.5 W (Class 0 device)
Ambient Operating Temperature:
-10 °C to +50 °C (14 °F to 122 °F) (Power On range: 0 °C to 50 °C{32°F to 122 °F})
Ambient Operating Humidity:
10 to 90 % (no condensation)
Dimensions:
ø129.5 mm x 102.5 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)} Dome radius 41.5 mm {1-5/8 inches}
Mass (approx:
800 g {1.77 lbs.}
Finish:
Main body : Aluminum die cast, Black Dome cover : Polycarbonate resin, Clear
Monitor Output (for Adjustment:
VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera
Audio input:
ø3.5 mm stereo mini jack For microphone input : Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Audio Output:
ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) / Output level : –20 dBV
External I/O Terminals (Cable:
ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
Shock Resistance:
IK10 (IEC 62262)

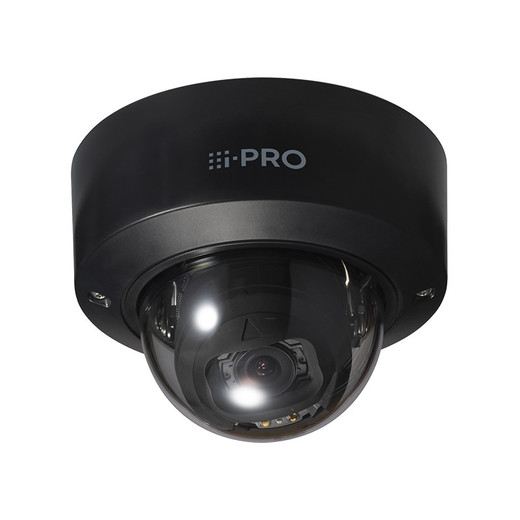

Product Type:
Dome
Connectivity:
Wired
Night Vision:
IR
Power Type:
PoE
PoE Class:
0
Form Factor:
Dome
Vandal Rating:
IK10
Compatibility:
ONVIF
Resolution:
5MP
Video Compression:
H.265, H.264, MJPEG
IR Distance:
40m
Built-in IR:
Yes
Day/Night:
Yes
Analytics:
Facial Recognition
Storage Support:
microSD
Signed Firmware:
Yes
HTTPS Encryption:
Yes
Operating System:
Android
