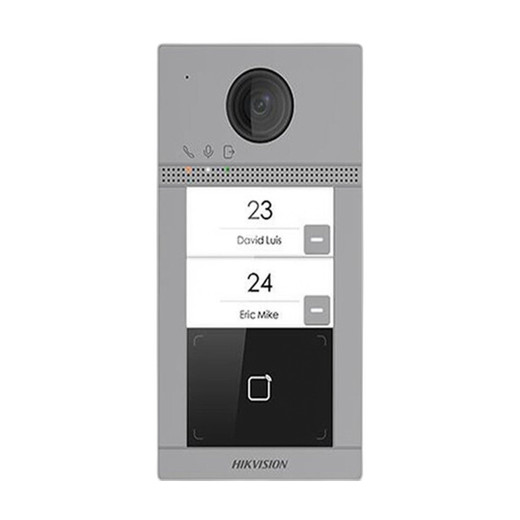

Hikvision DS-KV8213-WME1 Dual-Button Villa Door Station

Hikvision DS-KV8213-WME1 Dual-Button Villa Door Station

The Hikvision DS-KV8213-WME1 is a professional-grade outdoor intercom and access control device engineered for villa, residential, and commercial entry points. This wired door station combines 2MP video capture with dual-button visitor management, IR night vision, and robust weather sealing to deliver reliable perimeter security in diverse environmental conditions. Its compact 174 × 91 × 29 mm form factor and lightweight design (385 g) make it ideal for surface-mounted installations on external gates, doors, and entry vestibules.

Key Features

• 2MP 1080p Video: 1920 × 1080 main stream resolution with 720 × 480 sub-stream for flexible bandwidth management
• Wide-Angle Lens: 129° horizontal × 75° vertical FOV captures comprehensive entry views
• Dual-Button Design: Two independent call buttons with customizable nametag labeling for multi-unit access
• IR Night Vision: 3-meter low-illumination IR supplement mode ensures 24/7 visibility
• Built-in Audio: Omnidirectional microphone and 85+ dB loudspeaker with noise suppression and echo cancellation
• IP65 & IK08 Protection: Sealed against dust, water spray, and vandalism; rated for -40°C to +55°C operation
• Dual-Stream Compression: H.264, H.265, and MJPEG support optimizes storage and bandwidth

Technical Specifications

• Connectivity: Wired 10/100 Mbps Ethernet with TCP/IP and RTSP protocols; ONVIF compatible
• Power: DC supply; low power consumption under 10W
• I/O Capacity: 4 alarm inputs, 2 exit buttons, 2 door contact inputs, 2 lock control outputs, 2 linked indoor station capacity
• Authentication: Supports up to 2000 multi-factor authentication credentials
• Processing: Embedded Linux OS with 256MB RAM, 32MB ROM, and embedded MCU processor
• Audio Bitrate: 64 Kbps G.711 U compression with adjustable volume
• Installation: Surface mount with 3 status indicators and 1 tamper detection input
• Multi-Language Support: 20+ languages including English, Spanish, French, Russian, Arabic, and more

Applications

Ideal for multi-unit villas, residential complexes, office buildings, and gated communities requiring two-way intercom communication with integrated access control. The dual-button configuration accommodates multiple residents or departments per installation point. RS-485 connectivity enables integration with building management systems and third-party access platforms.

Jerry Tildsen

The DS-KV8213-WME1 strikes a practical balance between feature density and operational simplicity. Its dual-button interface and 2000-credential authentication capacity support small-to-medium access control deployments without requiring external card readers. The H.264/H.265 dual-stream architecture ensures compatibility with legacy NVR systems while enabling modern bandwidth optimization.

Wide-angle FOV and IR supplement mode provide comprehensive entry documentation in low-light conditions common to covered vestibules and night-time monitoring. IP65/IK08 durability ratings and extended temperature tolerance (-40°C to +55°C) qualify it for harsh outdoor environments including coastal, industrial, and high-altitude installations. The embedded Linux foundation with ONVIF compliance facilitates integration into heterogeneous security ecosystems, reducing vendor lock-in risk.

Power consumption under 10W makes it suitable for PoE-constrained deployments. Primary considerations include the absence of onboard storage (0 TF card slots), necessitating centralized recording infrastructure, and the 2-unit linked indoor station limit, which restricts deployment to smaller properties or requires parallel intercom branches for larger estates.
