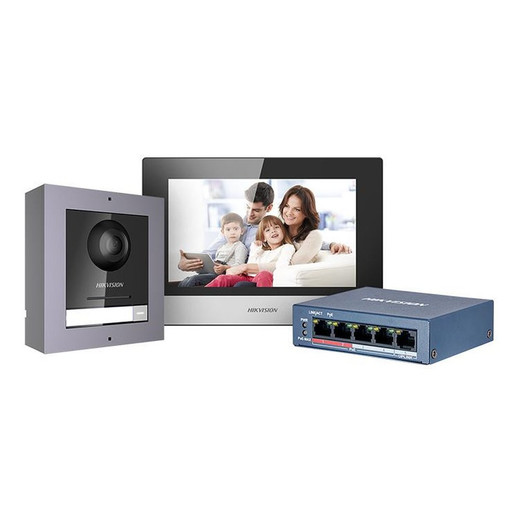

Hikvision DS-KIS602 Modular IP Video Intercom Kit

Hikvision DS-KIS602 Modular IP Video Intercom Kit

The Hikvision DS-KIS602 is a professional-grade modular IP video intercom system designed for secure access control and two-way communication in enterprise and institutional environments. This integrated kit combines high-definition video, crystal-clear audio, and flexible I/O capabilities within a compact, weather-resistant form factor. Supporting up to 8 channels and leveraging H.264 compression, the DS-KIS602 delivers reliable performance across diverse deployment scenarios while maintaining bandwidth efficiency and system scalability.

Key Features

• 2MP High-Definition Video — Crisp, detailed video feeds for accurate visitor identification and security verification
• Modular Architecture — Configurable design accommodates custom access control and communication workflows
• 7-Inch Colorful TFT Display — 1024×600 resolution touchscreen for intuitive user interaction and real-time monitoring
• Day/Night Capability — Automatic adaptation for 24/7 operational readiness
• Wide Dynamic Range (WDR) — Optimized performance in mixed lighting conditions, from bright sunlight to shadowed entry points
• Dual Audio System — Built-in omnidirectional microphone with noise suppression and echo cancellation, plus integrated loudspeaker for clear two-way communication
• IP65 Weather Protection — Rated for outdoor and harsh indoor environments; resists dust, moisture, and temperature extremes (-40°C to +60°C)
• PoE Power Delivery — IEEE 802.3af compliant; operates at ≤10W, simplifying installation and reducing infrastructure demands

Technical Specifications

• Video Compression: H.264 codec with 2MP resolution
• Audio: G.711 U compression at 64 Kbps with noise suppression and echo cancellation
• Processor: Embedded MCU with 128 MB RAM running Embedded Linux
• Connectivity: 10/100 Mbps Self-Adaptive Ethernet; TCP/IP and RTSP protocol support
• I/O Capacity: 4 inputs and 2 outputs for relay control and sensor integration
• Power: 12 VDC or PoE (IEEE 802.3af); maximum 10W consumption
• Physical: 200 mm × 140 mm × 15.1 mm main unit; 355g (net weight)

Applications

Ideal for corporate headquarters, healthcare facilities, educational institutions, and secured entry points requiring integrated access control and visitor communication. The modular design supports multi-unit deployments for campus-wide or multi-floor installations. Seamless integration with Hikvision NVRs, cameras, and management platforms ensures ecosystem consistency and simplified administration.

Ted Perry

The DS-KIS602 strikes a pragmatic balance between feature richness and operational simplicity. The embedded Linux OS and TCP/IP networking enable straightforward integration into existing IP-based security systems, while the modular architecture—supporting up to 8 channels—allows organizations to scale deployment without architectural redesign. The 7-inch touchscreen, coupled with dual audio processing and WDR imaging, positions this unit competently for outdoor vestibules and high-traffic indoor lobbies.

PoE operation at sub-10W consumption is particularly valuable for distributed deployments where power distribution is limited. The IP65 rating and extended temperature range (-40°C to +60°C) make it suitable for climate-challenged locations. Primary consideration: verify compatibility with existing Hikvision backend (NVR/management software version) prior to deployment, as modular intercom kits typically require firmware synchronization for optimal functionality.
