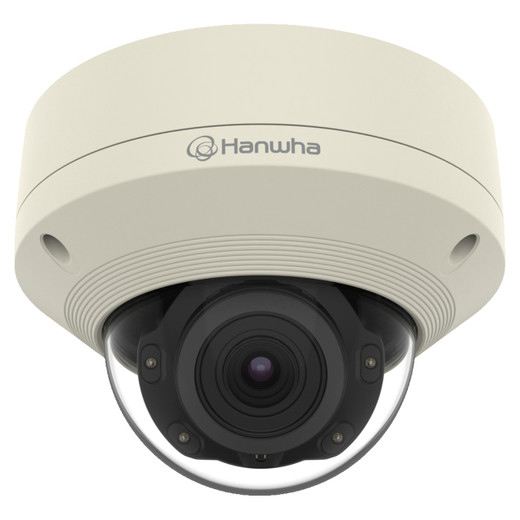

Hanwha XNV-L6080R 2MP Varifocal IR Dome Camera

Hanwha XNV-L6080R 2MP Varifocal IR Dome Camera

The Hanwha XNV-L6080R delivers professional-grade outdoor surveillance with a 2MP 1/2.8" CMOS sensor capturing 1920x1080 Full HD resolution at up to 60fps (H.265/H.264) or 30fps (MJPEG). Built for demanding outdoor environments, this vandal-resistant dome camera combines adaptive imaging technologies with motorized varifocal optics to provide flexible, intelligent monitoring across diverse applications.

Key Features

• Motorized Varifocal Lens: 3.2-10mm (3.1x zoom) with 109°-33.2° horizontal field of view, enabling operators to adjust coverage from wide-area surveillance to detailed close-ups without camera repositioning
• 120dB Wide Dynamic Range (WDR): Balanced exposure in challenging lighting—from bright parking lots to shadowed perimeter areas—without image degradation
• 30m IR LED Range: Advanced infrared illumination for true day/night operation with automatic color-to-B&W switching (ICR)
• H.265 Smart Codec: WiseStream II technology with manual 5-area selective encoding reduces bandwidth and storage demands while maintaining critical detail
• IP66/IK10 Rated: Complete dust and water ingress protection (IP66) plus vandal-resistant dome construction (IK10) for harsh outdoor environments
• PoE Powered: IEEE 802.3af Class 3 support with minimal 5W typical consumption simplifies installation and reduces cabling costs
• Edge Storage: MicroSD/SDHC/SDXC support (up to 256GB) with event-triggered recording for autonomous operation
• Advanced Analytics: Motion detection (8 polygonal zones), defocus detection, and tampering alerts enable intelligent event triggering and proactive responses

Technical Specifications

• Resolution: 1920x1080 (2MP), multiple output formats down to 320x240
• Min. Illumination: 0.03 Lux (color, F1.6); 0 Lux (IR on)
• Aperture: F1.6 (wide) to F2.9 (telephoto) with DC auto iris
• Video Compression: H.265, H.264 (Main/Baseline/High), MJPEG with CBR/VBR bitrate control
• Streaming: Up to 5 simultaneous profiles; unicast (20 users) and multicast support
• Networking: IPv4/IPv6, RTSP, HTTP/HTTPS, ONVIF Profile S/G, Wisenet open platform API
• Security: 802.1X authentication, HTTPS/SSL, digest login, IP filtering, user access logs
• Pan/Tilt/Rotate: 354°/67°/355° with 0.5m minimum focus distance
• Operating Range: -40°C to +55°C; 256MB Flash, 1GB RAM

Applications

Ideal for perimeter security, parking lot monitoring, building entrances, outdoor retail environments, and industrial facilities requiring detailed surveillance in variable lighting with minimal bandwidth overhead. ONVIF compatibility ensures integration into diverse VMS and recording platforms.

Eden Phillips

The XNV-L6080R balances flexibility and efficiency in outdoor dome surveillance. Its motorized varifocal lens eliminates the need for multiple fixed-lens cameras, reducing deployment complexity and cost. The 120dB WDR engine combined with SSDR (Super Sense Dynamic Range) ensures usable imagery in mixed lighting without post-processing adjustments.

H.265 encoding with WiseStream II delivers 50% bandwidth savings versus standard H.264, a critical advantage for multi-camera deployments or bandwidth-constrained networks. The 30m IR range with 0 Lux capability ensures round-the-clock operation without external lighting. IP66/IK10 certification and -40°C to +55°C tolerance handle extreme weather, though the varifocal mechanism should be monitored in freeze-thaw cycles.

For integrators, ONVIF compliance and robust security (802.1X, SSL/TLS) simplify enterprise deployments. The 1,298g weight and compact ∮160mm form factor ease gimbal mounting, while integrated defocus and tampering detection reduce false alarms and support unmanned operations.

Product Documentation

📄 Download Product Datasheet (PDF)
