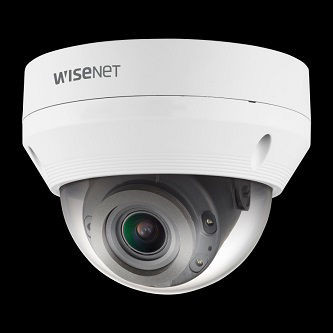

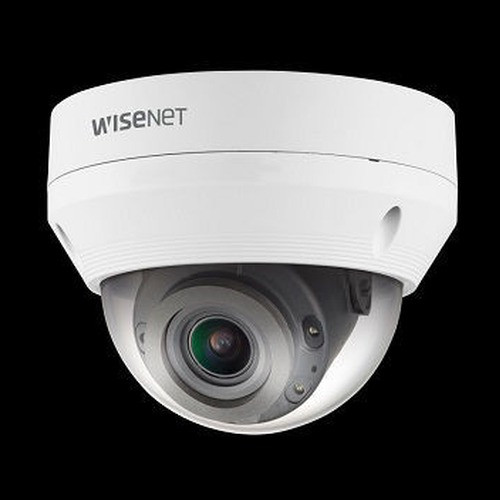

Hanwha QNV-7082R 4MP Vandal Dome IP Camera
Hanwha QNV-7082R 4MP Vandal Dome Varifocal Outdoor IP Camera The Hanwha QNV-7082R is a purpose-built outdoor surveillance dome designed for high-defi…
Hanwha QNV-7082R 4MP Vandal Dome IP Camera
$619.00
$372.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
QNV-7082R
UPC:
8801089202703
Condition:
New
Availability:
Usually ships in 24 hours
Warranty
3-year warranty
Description
Hanwha QNV-7082R 4MP Vandal Dome Varifocal Outdoor IP Camera
The Hanwha QNV-7082R is a purpose-built outdoor surveillance dome designed for high-definition monitoring in demanding environments. Featuring a 1/3" CMOS sensor with 4MP resolution, this camera delivers sharp, detailed imagery across multiple resolutions up to 2560x1440. Its motorized varifocal lens (3.2–10mm, 3.1x zoom) provides flexible field-of-view control, allowing operators to adjust coverage from a wide 98.6° horizontal view to a narrow 30.8° telephoto perspective without repositioning the camera.
Key Features
- 4MP Resolution: 2560x1440 native resolution at 30fps H.265/H.264 or 15fps MJPEG
- Motorized Varifocal Lens: 3.2–10mm with DC auto iris; wide (F1.6) to telephoto (F2.9) aperture range
- Superior Low-Light Performance: 0.1Lux color (F1.6, 1/30sec), 0Lux in B/W with IR LEDs; 30m IR range
- 120dB Wide Dynamic Range (WDR): Balances exposure in mixed lighting conditions
- Vandal-Resistant Build: IK10 impact rating; IP66 dust and water protection
- Advanced Analytics: Defocus detection, directional detection, motion detection, enter/exit, tampering, virtual line
- Flexible Codec Support: H.265, H.264, MJPEG with WiseStreamII smart codec for bandwidth optimization
- Edge Storage: microSD/SDHC/SDXC slot (up to 128GB) for local event recording
- PoE Powered: IEEE 802.3af Class 3; max 11.4W typical 8.5W; optional 12VDC supply
- ONVIF Compatibility: Profile S/G/T for seamless integration with standard VMS platforms
Technical Highlights
The QNV-7082R employs multiple image enhancement technologies to maintain clarity across diverse conditions. BLC (Backlight Compensation), WDR, and SSDR (Spatial Super Dynamic Range) work together to prevent blown-out highlights and lost shadow detail. Electronic shutter speed ranges from 1/5 to 1/12,000 sec with anti-flicker support. The camera supports up to four motion detection zones with polygonal configuration and six rectangular privacy masks for flexible deployment.
Video streaming supports unicast (6 concurrent users) and multicast with three simultaneous profiles at different bitrates and resolutions. Security features include HTTPS/SSL encryption, 802.1X authentication, IP address filtering, and user access logging. Pan/tilt/rotate PTZ functionality (0–350°/0–67°/0–355°) enables directional surveillance.
Environmental specifications are robust: operating range −40°C to +55°C, storage to −40°C to +60°C, humidity rated to 95% RH. The compact aluminum dome (Ø137.0 × 106.1mm, 710g) ships in white (RAL9003) and accommodates standard 3/4" (M25) conduit holes.
Applications
Ideal for perimeter security, parking facilities, building entrances, retail environments, and transportation hubs where impact resistance and all-weather durability are essential. The combination of varifocal optics, long-range detection (27m wide/129m tele at 25PPM), and intelligent analytics makes it suitable for both wide-area monitoring and focal-point surveillance.
Ted Perry
The QNV-7082R strikes a practical balance between cost and capability. Its 120dB WDR and motorized varifocal lens eliminate the need for separate cameras or manual lens swaps in mixed-lighting deployments. H.265 codec support with WiseStreamII reduces bandwidth by up to 50% versus H.264 without noticeable quality loss—a significant advantage for bandwidth-constrained networks.
The IK10/IP66 ratings and −40°C startup (typical outdoor requirement) confirm this camera's outdoor-first design. MicroSD edge storage provides valuable failover recording independent of network connectivity. However, note that this model lacks thermal imaging, auto-tracking, and defog features; it is optimized for visible-light surveillance in outdoor daytime and low-light conditions with supplemental IR.
Product Documentation
Specifications
Frame Rate:
30fps
Imaging Device:
1/3" CMOS
Resolution:
2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate:
H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps
Thermal Sensitivity (NETD:
None
Pixel Size:
None
Min. Illumination:
Color : 0.1Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)
Video Out:
CVBS : 1.0 Vpp/75Ω composite, 720x480(N), 720x576(P) for installation
Video Transmission Distance:
None
Focal Length (Zoom Ratio:
3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio:
F1.6(Wide) ~ F2.9(Tele)
Angular Field of View:
H : 98.6˚(Wide) ~ 30.8˚(Tele), V : 52.3˚(Wide) ~ 17.3˚(Tele), D : 115.7˚(Wide) ~ 35.3˚(Tele)
Min. Object Distance:
None
Focus Control:
Simple focus
Lens Type:
DC auto iris
Mount Type:
None
Optional Lens:
None
Pan / Tilt / Rotate Range:
0°~350° / 0°~67° / 0°~355°
Pan Range:
None
Pan Speed:
None
Tilt Range:
None
Tilt Speed:
None
Rotate Range:
None
Sequence:
None
Preset Accuracy:
None
Camera Title:
Displayed up to 85 characters
Direction Indicator:
None
Day & Night:
Auto(ICR)
Backlight Compensation:
BLC, WDR, SSDR
Wide Dynamic Range:
120dB
Digital Noise Reduction:
SSNR
Digital Image Stabilization:
None
Defog:
None
Motion Detection:
4ea, polygonal zones
Privacy Masking:
6ea, rectangular zones
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
LDC:
Support
Electronic Shutter Speed:
Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Digital PTZ:
None
Video Rotation:
Flip, Mirror, Hallway view(90˚/270˚)
Analytics:
Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Business Intelligence:
None
Serial Interface:
None
Alarm Inputs/Outputs:
Input 1ea / Output 1ea
Alarm Triggers:
Analytics, Network disconnect, Alarm input
Alarm Events:
File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover
Audio In:
Line in
Audio Out:
None
IR Viewable Length:
30m(98.42ft)
IR Illuminator (Optional:
None
Water Removal:
None
Auto Tracking:
None
Coaxial Protocol:
None
Color Palettes:
None
Temperature Detect Range:
None
Temperature Accuracy:
None
Temperature Detection:
None
Additional:
None
Ethernet:
RJ-45 (10/100BASE-T)
Video Compression:
H.265/H.264 : Main/High, MJPEG
Audio Compression:
G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz, G.726 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec:
Manual (5ea area), WiseStreamⅡ
Video Quality Adjustment:
H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control:
H.264/H.265 : CBR or VBR MJPEG : VBR
Streaming:
Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security:
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication
Application Programming Interface:
ONVIF Profile S/G/T, SUNAPI (HTTP API)
Webpage Language:
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer:
None
Edge Storage:
Micro SD/SDHC/SDXC 1slot 128GB
RAM:
512MB RAM, 256MB Flash
Operating Temperature / Humidity:
-40°C~+55°C (-40°F~+131°F) / Less than 95% RH ＊Start up should be done at -30°C or above
Storage Temperature / Humidity:
-40°C~+60°C (-40°F~+140°F) / Less than 95% RH
Certification:
IP66, IK10
Input Voltage:
PoE(IEEE802.3af, Class3), 12VDC
Power (Max:
PoE: Max 11.4W, typical 8.5W 12VDC: Max 9.6W, typical 7.2W
Color / Material:
White / Aluminum
RAL Code:
RAL9003
Product Dimensions / Weight:
Ø137.0 x 106.1mm (Ø5.39 x 4.18"), 710g (1.565 lb)
Compatible Conduit hole / Gangbox:
3/4"(M25) Single, Double, 4"Octagon
Hanging Mount (Dome:
SBP-301HMW2
Skin Cover (Dome:
SPB-VAW72 (White)
Weather Cap (Dome:
None
Power Module:
None
Backbox:
SBV-136BW
Detect (25PPM/ 8PPF:
Wide: 27m(89.86ft) / Tele: 129m(422.61ft)
Observe (63PPM/ 19PPF:
Wide: 11m(35.95ft) / Tele: 52m(169.04ft)
Recognize (125PPM/ 38PPF:
Wide: 6m(17.97ft) / Tele: 26m(84.52ft)
Identify (250PPM/ 76PPF:
Wide: 3m(8.99ft) / Tele: 13m(42.26ft)
Product Type:
Dome
Connectivity:
Wired
IP Rating:
IP66
Features:
WDR
Night Vision:
IR
Power Type:
PoE
PoE Class:
3
Form Factor:
Dome
Vandal Rating:
IK10
Compatibility:
ONVIF
Day/Night:
Yes
Storage Support:
microSD
Outdoor Ready:
Yes
HTTPS Encryption:
Yes
WDR:
WDR
Weight Lbs:
1.57
Have Questions?
Ask an Expert.
RELATED PRODUCTS
Add to Cart
The item has been added
Hanwha
Hanwha QNV-7012R 4MP Outdoor IR Vandal Dome Camera
$429.00
$251.99
Save $177.01
The item has been added
Add to Cart
The item has been added
Hanwha

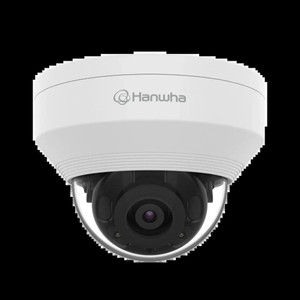

Hanwha QNV-7022R 4MP Outdoor IR Vandal Dome Camera
