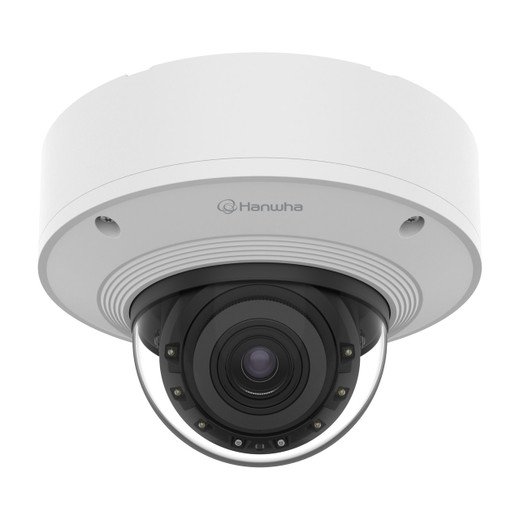

Hanwha PNV-A6081R-E 2MP AI IR Vandal Dome Camera

Hanwha PNV-A6081R-E 2MP AI IR Vandal Dome Camera with SolidEDGE WAVE Recording

The Hanwha PNV-A6081R-E is a ruggedized 2MP outdoor vandal dome IP camera engineered for demanding surveillance environments. This integrated solution combines AI-powered video analytics, edge storage with WAVE VMS pre-loaded, and industrial-grade durability in a single deployment. Available in 1TB or 2TB SSD configurations, it delivers server-less recording with support for up to 6 total cameras and 33Mbps total bandwidth.

Key Features

• 2MP 1/2" CMOS sensor with 1920x1080 native resolution up to 120fps (H.265/H.264)
• 4.38–9.33mm motorized varifocal lens (2.13x zoom) with P-iris and IR correction
• WiseIR 40m (131.23ft) IR illumination with 120dB wide dynamic range
• License-free AI video analytics: person, face, vehicle, and license plate detection with attribute classification
• Advanced detection capabilities: virtual line crossing, intrusion, loitering, defocus, tamper, shock, people counting, queue management, and heatmap
• Integrated 1TB or 2TB SSD with WAVE VMS and professional camera license pre-installed
• Server-less edge recording for up to 5 additional cameras (6 total system)
• Triple codec support: H.265, H.264, and MJPEG with WiseStream II smart compression
• Day/night operation with auto ICR, BLC, WDR, and SSDR backlight compensation
• Vandal-resistant design: IP66/IP67/IP6K9K, NEMA4X, IK10 rated
• Hard-coated dome bubble with aluminum construction (RAL9003 white)
• PoE+ (IEEE 802.3at type 2) and 12VDC power with redundancy failover
• TPM 2.0 FIPS 140-2 level 2, secure boot, 802.1X authentication, and certificate support
• 8 motion detection zones, 6 privacy masking zones, and digital PTZ with presets
• Audio in/out: selectable mic or line input with G.711/G.726 compression
• ONVIF Profile S/T/M and SUNAPI HTTP API support
• Operating range: -30°C to +55°C with 0–95% RH tolerance

Technical Specifications

Imaging & Optics: The 1/2" CMOS sensor captures 1920x1080 at up to 120fps with minimum illumination as low as 0.0008 Lux in black & white mode (F1.3, 1/30sec). The motorized varifocal lens ranges from 4.38–9.33mm with a maximum aperture of F1.3 wide to F2.15 tele. Horizontal field of view spans 104° (wide) to 44° (tele), enabling both broad coverage and detailed zoom.

Lighting & Low-Light Performance: WiseIR provides 40m effective range with 0 Lux performance via IR LED activation. Dual-sensor day/night operation switches automatically via ICR. The 120dB WDR accommodates extreme backlit conditions, while WiseNR and SSNRV digital noise reduction maintain image clarity in low-light environments.

Edge Storage & Recording: Integrated 1TB or 2TB SSD runs WAVE VMS with one professional license included. The system records up to 6 cameras (host + 5 remote) at maximum 33Mbps total bandwidth. Note: AI mode is not currently available when recording to SSD.

Video Compression: H.265 and H.264 Main/High profile with MJPEG fallback. WiseStream II intelligently manages bandwidth by applying selective codec optimization across 5 configurable areas, reducing bitrate while preserving critical detail.

Security & Compliance: TPM 2.0 with FIPS 140-2 level 2 certification, pre-installed device certificates, HTTPS/SSL login, IP filtering, user access logs, and 802.1X EAP-TLS/LEAP support. Compliant with NDAA, FCC, UL, CE, and UKCA standards.

Applications

Ideal for perimeter defense, building access points, parking facilities, retail environments, and critical infrastructure requiring vandal-resistant, all-in-one surveillance. The integrated edge recording eliminates dependency on centralized servers, enabling rapid deployment in remote or network-constrained locations.

Eden Phillips

The PNV-A6081R-E represents Hanwha's mature approach to edge-based surveillance: purpose-built for cost-conscious integrators who need IP67-rated durability, genuine AI analytics, and zero-footprint VMS deployment. The inclusion of WAVE VMS with pre-loaded licensing removes licensing friction on day one.

The motorized varifocal lens and P-iris deliver cinema-grade image control, while 120fps capture enables post-event frame-by-frame analysis. H.265 codec adoption, paired with WiseStream II, reduces storage consumption by up to 50% versus H.264—critical for extended edge retention.

Practical constraints: AI detection is disabled during SSD recording, forcing operators to choose between on-device storage and advanced analytics. For AI-heavy deployments, offload to a separate NVR or cloud gateway. The 33Mbps aggregate bandwidth ceiling means large multi-camera setups favor H.265 or aggressive WiseStream tuning. PoE+ power delivery (max 19.2W) is standard for outdoor domes but requires verified PSE hardware.

Best suited for mid-market and enterprise accounts prioritizing operational simplicity, standards compliance (ONVIF, MQTT, SRTP), and auditable security posture.
