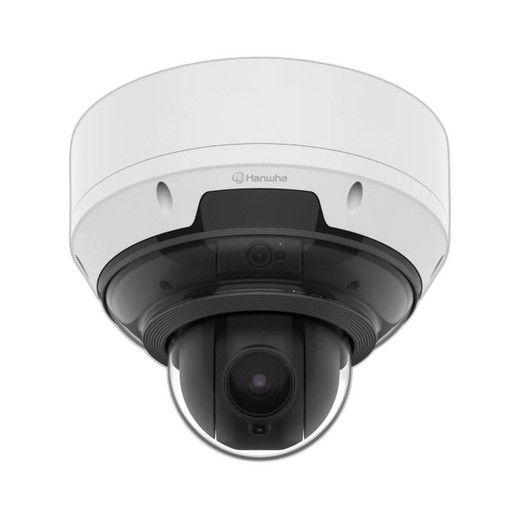

Hanwha PNM-C19183RVTP 5MP Multi-Channel Outdoor AI PTZ Camera
The Hanwha Vision PNM-C19183RVTP is a hybrid outdoor AI PTZ network camera that combines panoramic situational awareness with targeted zoom inspection from a single mounting point. Featuring three fixed 5MP channels paired with a dedicated 4MP PTZ module, this system delivers comprehensive coverage and detail-rich forensic capability without multiple camera installations.
Key Features
- Three 5MP fixed channels at 30 fps with 123° ultra-wide horizontal field of view per channel
- Dedicated 4MP PTZ module with 18× optical zoom for targeted monitoring and investigation
- 120 dB wide dynamic range for consistent image clarity in high-contrast and mixed-lighting scenes
- Integrated IR illumination extending visibility up to 15 m (49 ft) in low-light and nighttime conditions
- Edge-based AI processing for real-time analytics without external server dependency
- WiseNR II noise reduction and WiseStream III AI-based bandwidth optimization
- IP66-rated outdoor construction for reliable all-weather performance
Advanced AI and Analytics
The integrated AI engine performs classified object detection for people, faces, vehicles, and license plates with attribute analysis including vehicle type, vehicle color, and clothing color identification. Intelligent Video Analytics support virtual line and area detection, intrusion monitoring, loitering detection, directional movement tracking, and appear/disappear event triggers. Business intelligence tools including people counting, vehicle counting, queue management, and heatmap visualization provide actionable insights for operational planning and facility optimization.
Optical and Image Quality
Fixed 2.4 mm lenses on the three fixed channels provide exceptional ultra-wide coverage, while the PTZ module's variable focal length enables flexible zoom capability. The 120 dB wide dynamic range ensures usable imagery across challenging lighting conditions, from bright outdoor areas to shadowed zones and direct sunlight reflection.
Typical Applications
- Large outdoor premises requiring both overview and detail monitoring (parking lots, courtyards, perimeters)
- Transportation hubs and traffic management facilities
- Retail and commercial properties with high-value asset protection needs
- Industrial facilities and outdoor manufacturing areas
- Critical infrastructure requiring 24/7 surveillance with AI-driven threat detection
The PNM-C19183RVTP addresses a significant operational challenge: the traditional trade-off between wide coverage and investigative detail. By integrating three fixed 5MP channels with a dedicated 4MP PTZ, this camera eliminates the need for multiple installations while reducing overall system complexity and cost. The 123° ultra-wide field of view per fixed channel ensures minimal blind spots, while the 18× optical zoom PTZ module allows operators to investigate events in real-time or during forensic review without losing the panoramic context provided by the fixed channels.
Edge-based AI processing is particularly valuable for outdoor deployments where network bandwidth may be constrained; classified object detection and attribute analysis occur locally, reducing upstream data transmission. The combination of WiseNR II and WiseStream III optimization maintains image quality while minimizing bandwidth consumption—critical for facilities managing multiple cameras. For organizations requiring AI-driven security with reduced reliance on external analytics infrastructure, this hybrid approach delivers enterprise-grade capability in a single outdoor-rated platform.
