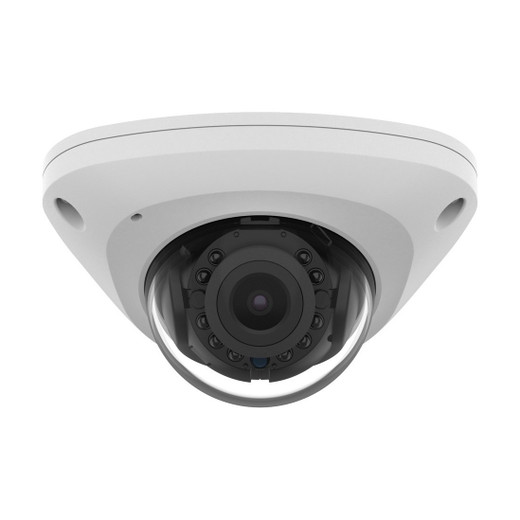

Hanwha ANV-L6023R 2MP Outdoor IR Flateye IP Camera

Hanwha ANV-L6023R 2MP Outdoor IR Flateye Camera

The Hanwha ANV-L6023R is a compact 2MP outdoor IP dome camera engineered for reliable surveillance in challenging environments. Its innovative Flateye design minimizes IR reflections to deliver clean, detailed night-time imagery, while advanced optics and intelligent video processing ensure consistent performance across varying lighting and weather conditions.

Key Features

• 2MP 1/2.8" CMOS sensor with 1920x1080 native resolution
• IR night vision up to 15m (49.21ft) with 0 Lux capability
• Flateye design eliminates IR reflection artifacts for superior image clarity
• 120dB wide dynamic range (WDR) for backlit and high-contrast scenes
• IP66, IK10, NEMA4X rated for extreme outdoor durability
• PoE powered (IEEE 802.3af, Class 3) with minimal 5W typical consumption
• Compact form factor: 98.9 x 52.0 x 100.0mm, 295g
• H.265/H.264 video compression with WiseStream II smart codec
• Edge storage: Micro SD/SDHC/SDXC up to 128GB

Optical & Imaging Performance

The 3.6mm fixed focal lens delivers a 94.8° horizontal field of view with F2.0 aperture, ideal for wide-area perimeter monitoring. Motion detection spans 4 configurable polygonal zones, while 6 rectangular privacy masks protect sensitive areas. Auto day/night switching via ICR ensures seamless transitions between color and B&W modes. Fixed focus and electronic shutter (1/5–1/12,000 sec) enable reliable operation from -30°C to +55°C.

Video & Analytics

Supporting H.265 and H.264 at up to 30fps (H.265/H.264) or 15fps (MJPEG), the camera delivers flexible streaming options. Multiple profiles enable simultaneous unicast (6 users) and multicast viewing. Built-in analytics include defocus detection, motion detection, tampering alerts, and virtual area/line detection (intrusion, entry/exit, crossing, direction). FTP and email event notifications, plus SD/NAS recording triggers, support proactive security workflows.

Network & Security

Full IPv4/IPv6 support with ONVIF Profile S/G/T compliance ensures integration with third-party management systems. HTTPS/SSL encryption, 802.1X authentication, and IP filtering protect against unauthorized access. RTSP, RTP, DHCP, DDNS, and QoS protocols enable flexible deployment in diverse network environments. The camera supports 14 interface languages and includes SUNAPI and Wisenet open platform integration.

Applications

Ideal for parking lots, building perimeters, industrial yards, and other outdoor spaces requiring robust all-weather surveillance. The combination of compact design, low power draw, and superior night vision makes it suitable for remote locations and solar-powered deployments.

Karl Wilson

The ANV-L6023R occupies a practical niche in outdoor surveillance—delivering solid 2MP performance without premium pricing. The Flateye technology directly addresses a common complaint with traditional dome IR: washout and reflection artifacts in close-range night scenes. At 15m IR range and 0 Lux B&W sensitivity, detection capability reaches 35.3m, recognition 7.1m—suitable for mid-range perimeter work but not long-distance identification.

The 120dB WDR is competitive for mixed lighting, though not as aggressive as ultra-high-end solutions. H.265 encoding via WiseStream II keeps bandwidth demands low, critical for PoE-only deployments and edge storage. Fixed focus and 3.6mm optics mean predictable performance once sited correctly; no motorized lens complexity.

IP66/IK10/NEMA4X durability is genuine for outdoor North American and industrial use. At 5W typical power, it operates comfortably within IEEE 802.3af PoE budgets. Best suited for operations prioritizing ease of installation, low operating cost, and reliable night vision over extreme zoom or ultra-high resolution.
