Digital Watchdog DWC-MPV75Wi6TW 5MP Outdoor IR Dome IP Camera

Digital Watchdog DWC-MPV75Wi6TW 5MP Outdoor IR Dome Camera

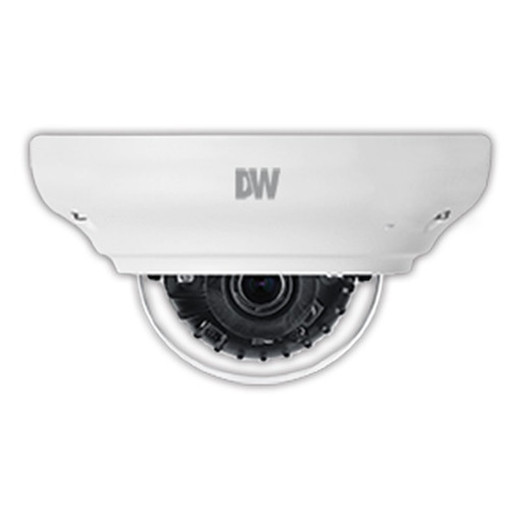

The Digital Watchdog DWC-MPV75Wi6TW is a professional-grade 5-megapixel outdoor IR dome camera designed for comprehensive 24/7 surveillance. Built with a robust 5MP 1/2.8" CMOS sensor and equipped with Smart IR technology delivering 80-foot infrared range, this camera captures exceptional detail in both daylight and complete darkness. Its vandal-resistant IK10-rated dome housing with IP67 weather protection makes it ideal for high-security applications in demanding outdoor environments.

Key Features

• 5-megapixel resolution with 2592 × 1944 total pixels for crisp, detailed imagery
• Smart IR technology with 80-foot night vision range for complete darkness monitoring
• True WDR 120dB wide dynamic range for balanced exposure in challenging lighting
• IK10 vandal-resistant dome and IP67 weatherproof housing rated for extreme conditions
• PoE power delivery for simplified installation and reduced cabling
• Dual-streaming capability with H.264, H.265, and MJPEG compression at up to 30fps
• Smart DNR 3D noise reduction for superior low-light image quality
• 360° smart panning capability with auto day/night switching
• Micro SD/SDHC/SDXC card slot supporting up to 1TB local storage
• 16 programmable privacy masks for sensitive area protection

Technical Specifications

Imaging & Optics: The camera features interchangeable fixed lenses (2.8mm, 4.0mm, 6.0mm) with horizontal field of view ranging from 51.9° to 102.4°. Minimum scene illumination reaches 0.0 lux in black/white and 0.13 lux in color mode, enabling reliable identification in near-total darkness. Auto day/night switching, white balance control, and slow shutter modes (up to 7.5x) enhance performance across diverse lighting scenarios.

Video Processing & Analytics: Equipped with advanced IVA (Intelligent Video Analytics) licensing supporting intrusion detection, line crossing, loitering, object counting, and tamper detection. IVA+ options add logical rules, object removal, tailgating, and directional analysis. Motion detection, 16 privacy zones, and operational notifications via email or SD card ensure flexible monitoring workflows.

Network & Storage: Multi-streaming at variable and constant bitrates (32Kbps–20Mbps) supports bandwidth-efficient deployment. Compatible with DW Spectrum IPVMS, ExacqVision, and Milestone Systems platforms. Supports IPv4, DHCP, DDNS, RTSP, HTTP/HTTPS, and SNMP with 802.1x and MAC filtering security. Local CVBS video output for legacy integration.

Environmental Durability: Operating range of -4°F to 122°F (-20°C to 50°C) and 10–90% non-condensing humidity rating ensures year-round reliability. De-fog capability combats moisture in humid climates. Compact dimensions (4.13" × 2.38") and lightweight design (0.70 lbs) simplify mounting on existing infrastructure.

Typical Applications

• Commercial properties, warehouses, and manufacturing facilities
• Parking structures and vehicle access control points
• Retail and hospitality establishments
• Critical infrastructure and high-security perimeters
• Educational and municipal facilities

James Everett

The DWC-MPV75Wi6TW represents a solid mid-range choice for organizations requiring reliable outdoor surveillance without premium pricing. The 5MP resolution balances image clarity with manageable bandwidth, while the 80-foot Smart IR range and 120dB WDR handle most outdoor lighting extremes effectively. IK10 and IP67 ratings provide genuine durability—not marketing hyperbole—making this suitable for hostile environments where cameras face vandalism or weather exposure.

The inclusion of dual-streaming, local SD storage, and extensive IVA analytics adds operational flexibility. PoE simplification reduces installation labor. However, buyers should note fixed lens options require pre-selection; the 360° angle specification refers to pan capability via software, not mechanical rotation.

Integration with major VMS platforms (Milestone, Genetec, ExacqVision) ensures compatibility with existing ecosystems. Five-year warranty coverage reflects manufacturer confidence in long-term reliability.
