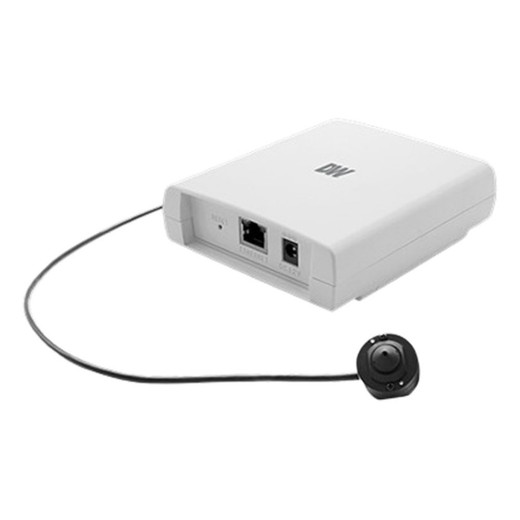

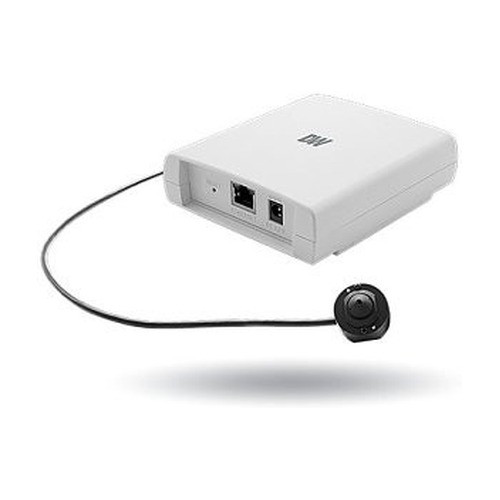

Digital Watchdog DWC-MPH2W28TW 2.1MP AI Outdoor Pinhole IP Camera

Digital Watchdog DWC-MPH2W28TW 2.1MP AI Pinhole Camera

The Digital Watchdog DWC-MPH2W28TW is a professional-grade AI-enabled outdoor pinhole IP camera engineered for covert surveillance in demanding environments. With a 2.1-megapixel sensor delivering 1080p resolution and advanced intelligent video analytics, this camera provides both discreet monitoring and intelligent threat detection. The compact pinhole design allows installation in sensitive areas where surveillance must remain unobtrusive, while maintaining exceptional image quality and performance.

Key Features

• 2.1MP High-Resolution Sensor: 1/2.8" CMOS sensor captures crisp, detailed 1945 x 1109 pixel imagery for reliable identification and forensic review
• AI-Powered IVA Analytics: Preloaded intelligent video analysis with intrusion, line crossing, people counting, loitering, enter/exit, and tamper detection
• Ultra-Compact Pinhole Design: 1.1" x 1.08" sensor with 4.21" x 4.88" main unit enables discreet installation without compromising image clarity
• True WDR 120dB: Wide dynamic range technology balances extreme lighting conditions, capturing detail in both bright and shadowed areas simultaneously
• Advanced Low-Light Performance: 0.065 lux minimum scene illumination in color with Smart DNR™ 3D noise reduction for reliable daytime color video
• Motorized Zoom & Auto Focus: 2.8mm fixed lens with 106.6° horizontal field of view and intelligent focusing capabilities
• Flexible Video Compression: H.264, H.265, and MJPEG support with dual-streaming at different rates and resolutions (up to 30fps at all resolutions)
• PoE Powered: Single-cable connectivity via PoE simplifies installation with no separate power adapter required
• Local & Remote Storage: Supports microSD/SDHC/SDXC cards up to 1TB (FAT32) with multiple notification options including email, FTP, and alarm outputs

Technical Specifications

• Resolution & Frame Rate: 2.1MP/1080p at 30fps across all resolutions; supports 720p, 640x360, CIF, and SIF formats
• Environmental Durability: Outdoor-rated for -4°F to 122°F (-20°C to 50°C) operation; 10-90% non-condensing humidity tolerance
• Image Enhancement: Anti-flicker shutter modes, backlight compensation, de-fog, 16 programmable privacy masks, mirror/flip, and adjustable sharpness/white balance
• Network Connectivity: IPv4 RJ45 Ethernet with DDNS, DHCP, DNS, ONVIF, RTSP, HTTP/HTTPS, and SMTP support; compatible with DW Spectrum® IPVMS and Milestone Systems
• Security: 802.1x authentication, digest authentication (ID/PW), HTTPS/TLS encryption, and IP filtering for enterprise-grade protection
• Power & Efficiency: PoE: max 4.0W (333mA); DC12V: 3.6W (300mA) when adapter-powered
• Physical: 0.92 lbs; 21.32ft cable with #18 AWG; plastic main unit with aluminum die-cast sensor housing in white

Applications

Ideal for retail loss prevention, bank security, government facilities, educational institutions, and any environment requiring discreet monitoring without visible camera presence. The AI analytics enable automated detection of suspicious behavior, reducing security team workload and false alarm incidents. Compatible with standard ONVIF-compliant video management systems.

Marty Allison

The DWC-MPH2W28TW represents an excellent balance of form and function for covert surveillance applications. The 2.1MP resolution with 120dB WDR ensures usable footage in challenging lighting, while the pinhole housing maintains the discretion required for sensitive locations. Preloaded IVA significantly differentiates this from passive cameras—intrusion and line-crossing detection reduce false alarms inherent in motion-only systems, improving SOC efficiency.

The H.265 codec support and dual-streaming capability provide flexibility for bandwidth-constrained networks. PoE integration eliminates power infrastructure concerns. The 5-year warranty and support for major VMS platforms (DW Spectrum, Milestone) ensure long-term compatibility and maintenance.

Best suited for integrators managing mixed Digital Watchdog or ONVIF-standard deployments.
