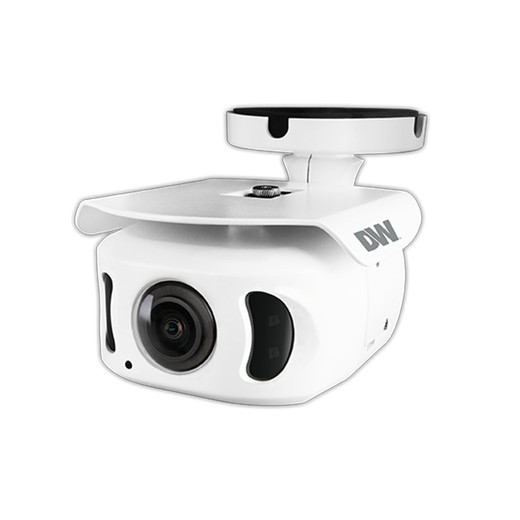

Digital Watchdog DWC-MBW8Wi2TW 8MP AI IR Panoramic Outdoor IP Camera

Digital Watchdog DWC-MBW8Wi2TW 8MP AI Panoramic Camera

The Digital Watchdog DWC-MBW8Wi2TW is an advanced 8-megapixel outdoor IP camera engineered for comprehensive panoramic surveillance. Combining multi-sensor technology with AI-driven intelligence and intelligent infrared night vision, this camera delivers exceptional clarity and awareness in diverse lighting conditions. Its robust IP67-rated aluminum housing withstands harsh outdoor environments, making it ideal for perimeter security, facility monitoring, and large-area coverage applications.

Key Features

• 8MP resolution with 1/1.8" CMOS sensor for exceptional image clarity
• 360° panoramic field of view with 175° horizontal and 80° vertical coverage
• AI-powered analytics: intrusion detection, line crossing, loitering, tailgating, and object tracking
• Smart IR™ technology with 100-foot infrared range for complete night visibility
• True WDR 120dB for balanced imaging in challenging lighting
• PoE-powered with minimal consumption (max 12.3W) for simplified installation
• Dual H.264/H.265 streaming with multi-rate encoding and up to 30fps
• IP67-rated, aluminum die-cast housing for outdoor durability
• Micro SD card support up to 1TB for onboard storage and local backup
• Smart DNR™ 3D noise reduction and de-fog capabilities

Technical Highlights

The DWC-MBW8Wi2TW achieves exceptional low-light performance with 0.0 lux sensitivity in black and white and 0.29 lux in color mode. Its advanced shutter system includes anti-flicker, auto, manual, and slow shutter modes (1/15 to 1/32,000 sec) to adapt to any environment. The fixed 2.3mm lens provides expansive coverage while maintaining detail precision across the panoramic field.

Equipped with comprehensive IVA (Intelligent Video Analytics) capabilities, the camera detects intrusions, monitors entry/exit points, identifies loitering behavior, and tracks object movement. Optional IVA+ licensing extends functionality to logical rules, object removal detection, direction analysis, and more. Motion detection, dual audio I/O, and configurable alarm outputs enable integrated threat response workflows.

Network connectivity leverages H.265 compression for bandwidth efficiency alongside H.264 and MJPEG options. The 1Gbps Ethernet interface supports ONVIF, RTSP, DDNS, and SNMPv3 protocols, ensuring compatibility with major VMS platforms including DW Spectrum®, Genetec®, Milestone®, and ExacqVision®. Security features include 802.1x authentication, HTTPS/TLS encryption, IP filtering, and digest authentication.

Applications

Ideal for outdoor facilities requiring expansive panoramic coverage—parking areas, perimeter fencing, large compounds, and campus environments. The panoramic angle eliminates blind spots while AI analytics automate threat detection and response. PoE simplification and onboard storage options reduce infrastructure complexity.

Ted Perry

The DWC-MBW8Wi2TW stands out for its panoramic multi-sensor design paired with production-grade AI analytics. The 360° field of view and 175° horizontal angle significantly reduce camera count in wide-area deployments, lowering total cost of ownership. True WDR 120dB and intelligent IR deliver reliable performance across sunrise-to-sunset transitions and complete darkness—critical for 24/7 unmanned perimeter security.

H.265 codec support ensures bandwidth efficiency without sacrificing frame rate at 8MP resolution. The 5-year warranty and aluminum construction demonstrate confidence in durability. Best suited for organizations requiring panoramic outdoor coverage with embedded analytics rather than post-processing intelligence.
