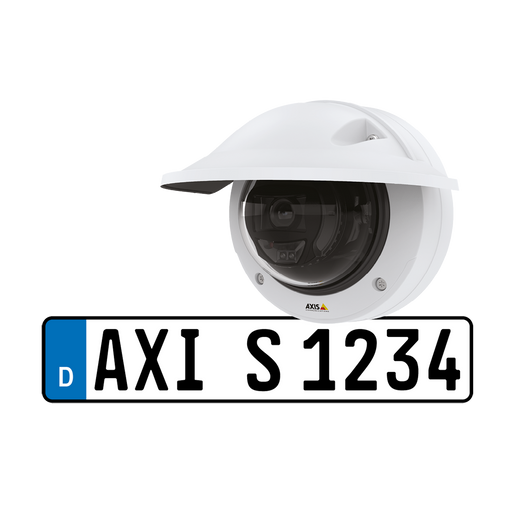

Axis P3245-LVE-3 2MP Varifocal Outdoor Dome IP Camera with License Plate Verifier, 02234-001

Axis P3245-LVE-3 Overview

The Axis P3245-LVE-3 is a discreet outdoor fixed dome camera purpose-built for automated vehicle access control and verification. This 1080p (2 MP) unit combines embedded License Plate Verifier analytics with rugged environmental protection—IP66/IP67 rated and IK10 vandal-resistant—making it ideal for toll booths, parking facilities, gate access points, and perimeter security where single-lane vehicle verification is required. The camera detects and verifies license plates at vehicle speeds up to 30 km/h (19 mph) within a 2 to 7 meter working distance, with plate reading time under 1 second.

Axis P3245-LVE-3 Key Features

• Built-in License Plate Verifier Application: Embedded analytics engine detects and verifies vehicle license plates in real time. Supports block and allow lists of up to 1,000 plates with direct I/O port control for automated gate, barrier, or lighting integration.
• Day/Night Imaging with OptimizedIR and Lightfinder: OptimizedIR technology delivers night vision capability; Lightfinder technology optimizes low-light performance for consistent plate readability 24/7 without dedicated infrared spotlights.
• 1080p (2 MP) Full HD Resolution: 1080p video capture ensures sufficient detail for reliable plate character recognition and forensic review in both daylight and low-light conditions.
• Forensic Wide Dynamic Range (WDR): Handles extreme backlighting scenarios (sunset glare, headlights, reflective surfaces) to maintain plate legibility in high-contrast environments.
• IK10 Vandal Resistance and IP66/IP67 Environmental Sealing: Rated for physical abuse and complete dust/water protection. Suitable for outdoor mounting on walls, ceilings, or junction boxes in harsh weather and high-traffic areas.
• Extended Operating Temperature Range: Operates reliably from -40°C to +50°C (-40°F to 122°F), supporting deployment in cold climates and direct sunlight exposure.
• Shock Detection: Built-in shock detection capability alerts operators to tampering or physical impact attempts.
• PoE Powered (802.3af Type 1 Class 3): Single power and data cable simplifies installation. Requires IEEE 802.3af midspan (not included).
• Flexible Mounting Options: Supplied mounting bracket supports wall, ceiling, and junction box installation configurations for site-specific deployment flexibility.
• Sub-Second Plate Recognition: License plate verification and character reading completes in less than 1 second, minimizing false reads and enabling rapid gate/barrier response.

Axis P3245-LVE-3 Integration and Compatibility

The P3245-LVE-3 integrates with access control systems and traffic management platforms via its I/O port for relay control of gates, barriers, and status indicators. The embedded License Plate Verifier application operates independently without requiring external VMS, though output can be logged to standard ONVIF-compatible video management systems for audit trails and forensic review. Configuration and allow/block list management are performed via the camera's web interface.

Axis P3245-LVE-3 Package Contents

• AXIS P3245-LVE-3 camera unit
• Mounting bracket for wall/ceiling/junction box installation

Download Product Datasheet (PDF)
